Monitor Panel

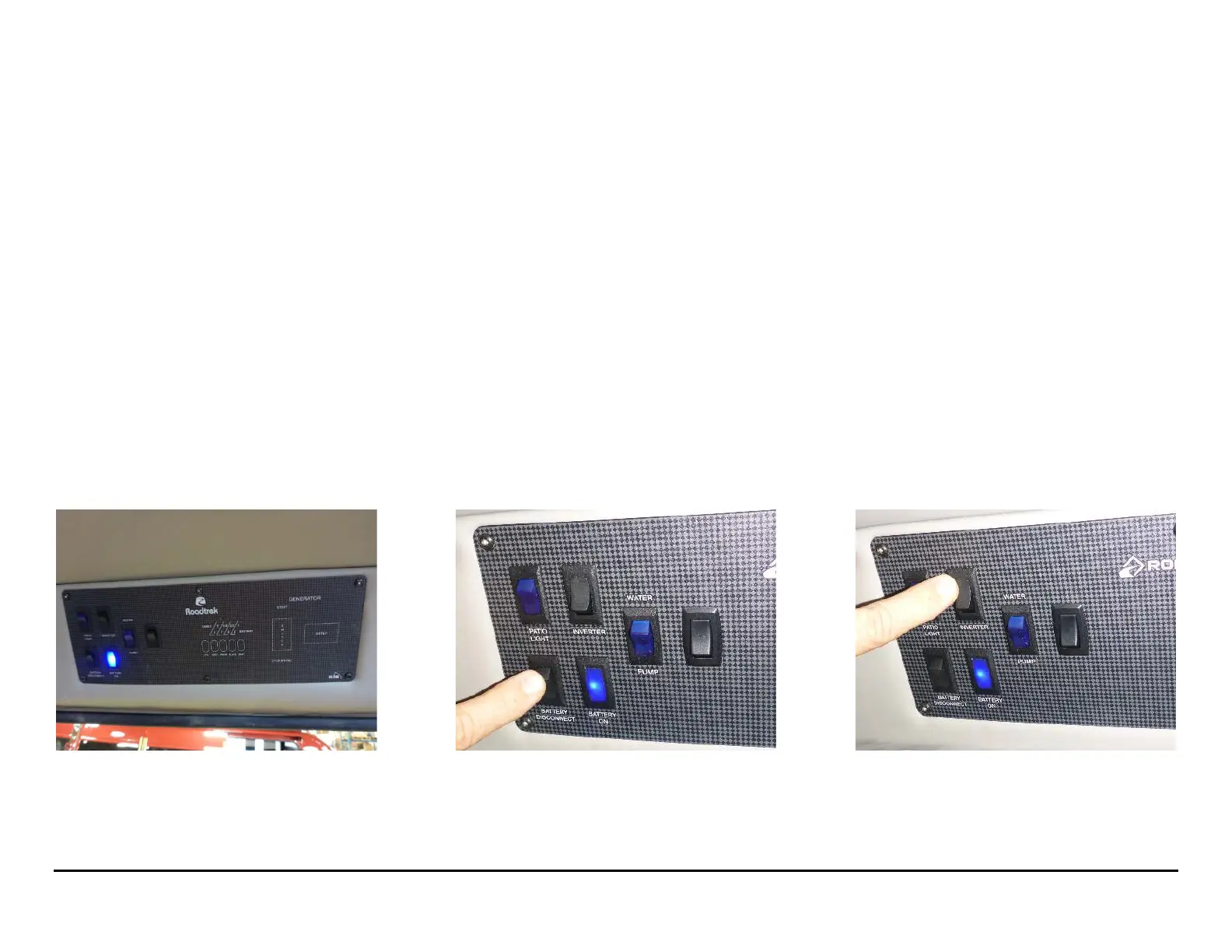

The monitor panel is located inside the side door, above the doorframe, to the left of the bathroom. (Picture 37.1)
Power Sources
The monitor panel controls 2 separate power sources; the 12-volt DC power and the 120-volt AC power via the inverter, shore power, or optional
generator.
12-Volt DC Power
The power to the 12-volt DC outlets and appliances is controlled by the battery disconnect switch to the lower left.
On the bottom left where the battery disconnect switch is located, which supplies 12-volt battery power to the 12-volt light and other cabin
appliances. This switch must be on for any of the 12-volt electrical devices to work. To avoid discharging the batteries when your Roadtrek is not in
use, remember to turn off two switches:
• The inverter switch (Picture 37.3)
• The battery disconnect switch (Picture 37.2)
The battery disconnect switch has a blue indicator light to the right of it to show you when the battery power is on.
