Distribution Panel
The distribution panel is located in the headliner above the driver’s seat. The 120-volt AC breakers and the 12-volt DC fuses are behind a black
plastic cover on the right side.
AC Breaker

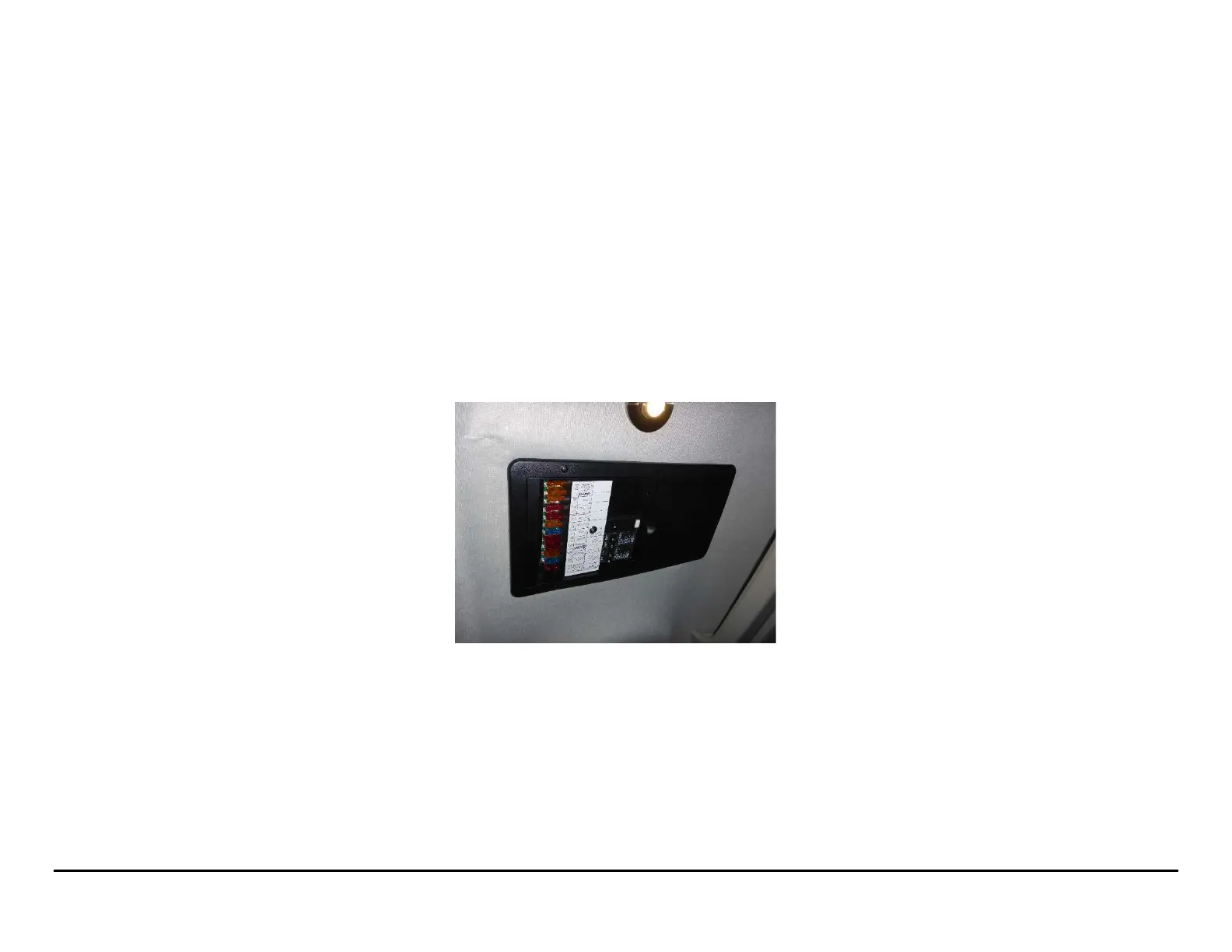

Flip the cover to the right and not the sticker under the cover with the identifying information on each breaker. (Picture 40.1) When storing the
Roadtrek for the winter, turn off the battery disconnect switch, the inverter and all circuit breakers in this panel
12 Volt Fuse Panel
The 12-volt fuses are on the right side of the distribution panel with labels for each fuse on the inside cover.
