Profi-Home-Charger
2. GENERAL DESCRIPTION
The Profi Homecharger is an intelligent home charging station
with easy battery management for charging and discharging of
NC, NiMH, lead and lithium batteries.
The reflex charge procedure already prevents undesirable
memory and lazy battery effects with NC and NiMH batteries
during the charging process.
The mains-power
ed device has four pr
ogrammable char
ging
outputs which are independent of each other and which are
executed one after the other. This means that both the same
as well as dif
fer
ent battery types and charge programs can be
selected. The Profi Homecharger is equipped with an automa-
tic start function; when a battery is plugged in char
ging starts
automatically.
If a process is finished or a battery is removed, then the soft-
ware ensures that the next charge Output with connected bat-
tery is executed.
The menu is controlled via the large background lit 2 x 16 cha-
racter dot-matrix LC display
. Once it has started, you will be
informed about all necessary parameters of the current char-
ging pr
ocedur
e in the “working” display. The charge current,
char
ge voltage, char
ged or dischar
ged capacity and the char
-
ged or discharged time elapsed are displayed.
The char
ge and dischar
ge curr
ent ar
e automatically detected
in automatic mode for NC and NiMH batteries and set to the
optimum value by the software.
This ensures that the batteries are charged carefully and
quickly. The end of the charge program is signalled optically
and acoustically
.
The Profi Homecharger is one of the first home stations which
can safely charge or discharge not only conventional and
modern batteries but also high capacity batteries such as
lithium-ion and lithium polymer batteries.
Different charging and discharging programs are ready to opti-
mally supply the different lithium battery types.
Particular attention was paid to the disconnect voltage with
regard to this; both charging/discharging are determined very
pr
ecisely so that the char
ge/dischar
ge curr
ents ar
e discon
-
nected at exactly the right moment.
The Pr
ofi Homechar
ger software has seven different charging
programs, depending on the type of battery.
This means that nearly all charge types that occur in practice
ar
e covered.
3

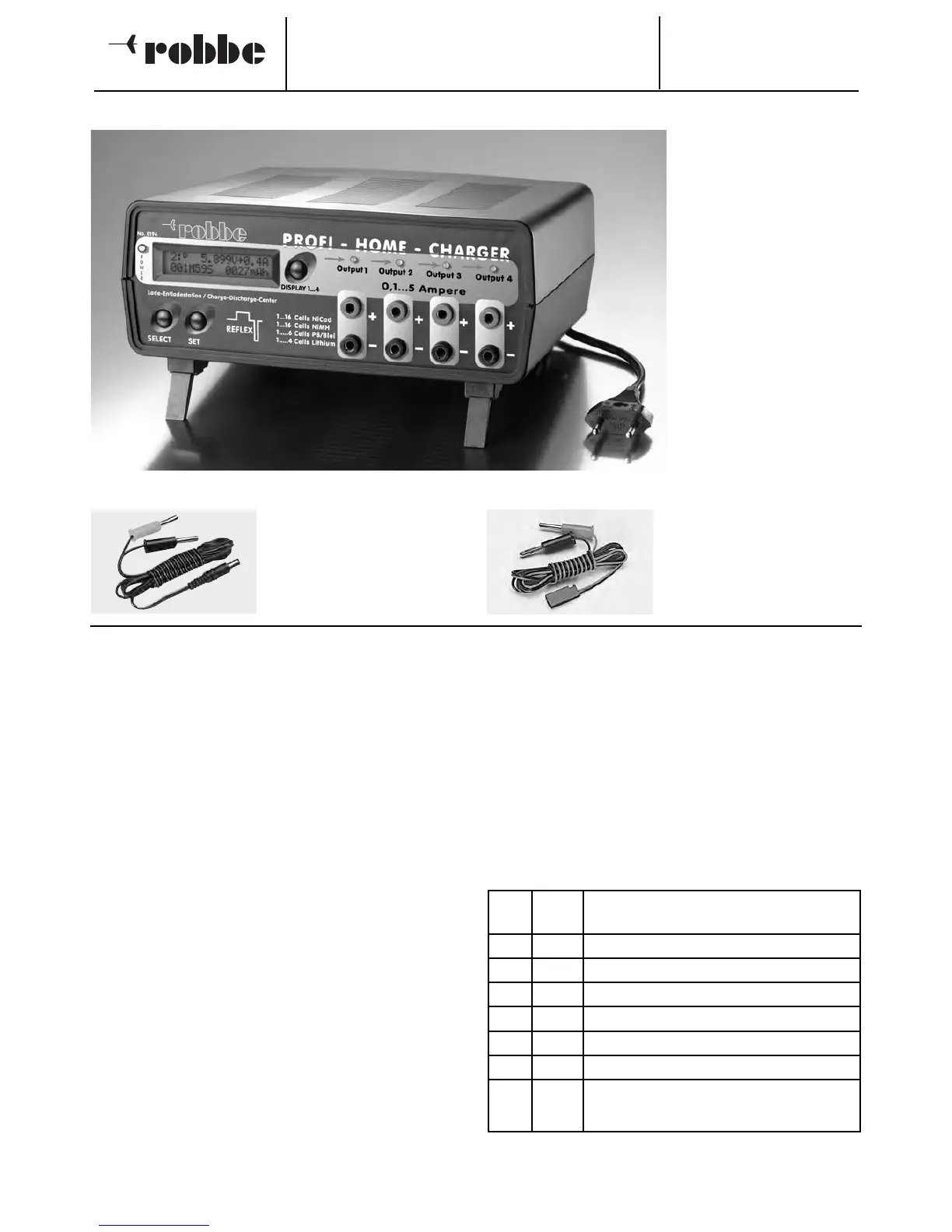

1. SCOPE OF DELIVERY
The scope of delivery con-
sists of the Pr
ofi
Homechar
ger with plug-in
supply cable.
1.1 RECOMMENDED ACCESSORIES
Transmitter battery char-
ge cable No. F 1415
Receiver battery charge cable
No. F 1416
NC +
NIMH
Lead +
Lithium
Charge program
• -
Char
ging in automatic mode
• •
Char
ging in manual mode
• -
Discharge-charge in automatic mode
• •
Dischar
ge-charge in manual mode
• -
Discharge-charge in auto. mode with 3 cycles
• -
Discharge-charge in man. mode with 3 cycles
• •
Regeneration pr
ogram, with dischar
ging and
subsequent C/5-charging, depending on the
pre-selected battery capacity
