Order No.
8194
Profi-Home-Charger
- The ‘Set’ key can call up the following languages one after
the other.
- Deutsch (German)
- Französisch (French)
-
Spanisch (Spanish)
- Italienisch (Italian)
- Englisch (English)
-
Select the desired language and press the ‘DISPLAY’ key.
This will display the “working” display of the first charge Out-
put.
4.2
WORKING DISPLAY
The display will make all necessary information available to the
user during a discharging or charging procedure.

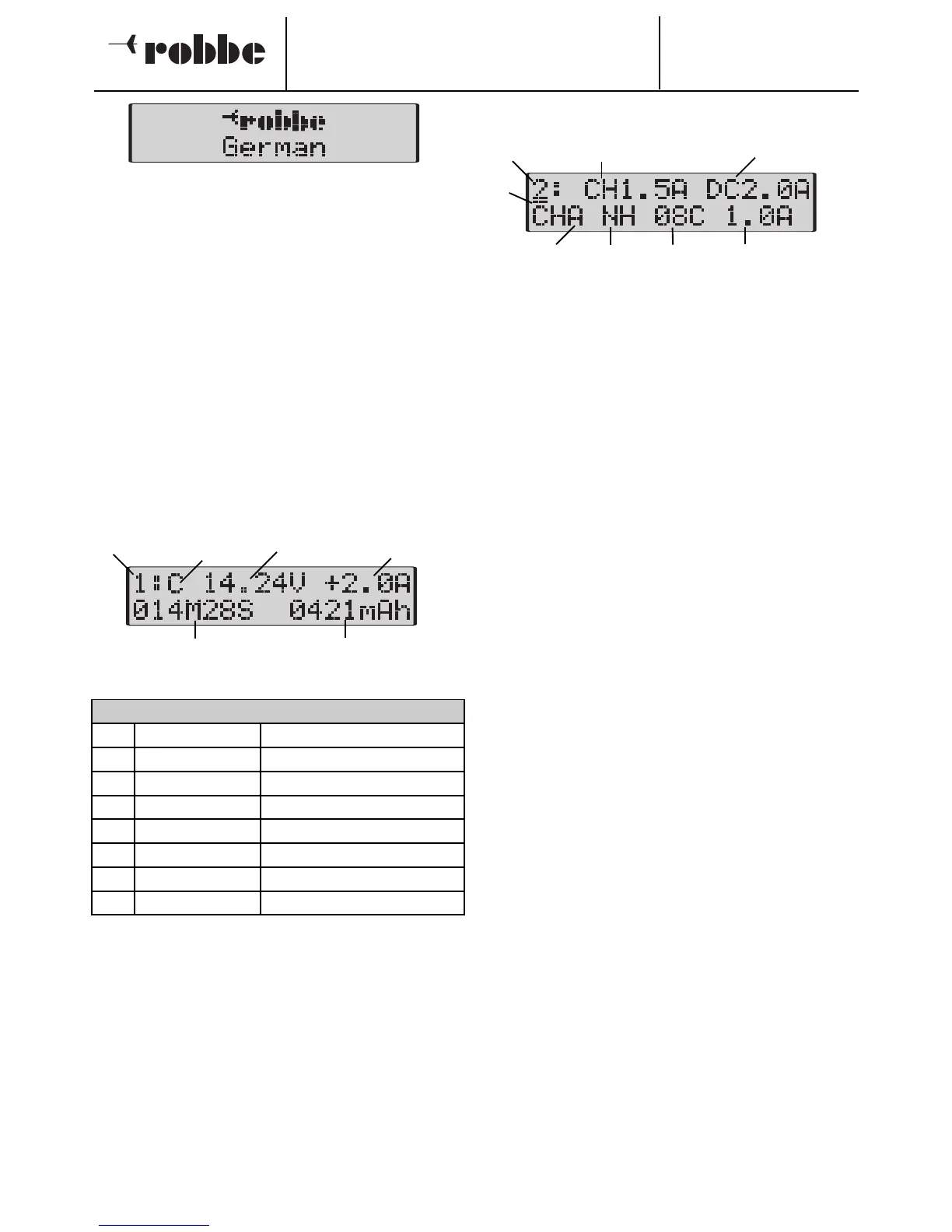

Example of a “working” display
4.4 SETTING THE CHARGE/DISCHARGE PARAME
TERS
To set the parameters for a new procedure, press the SELECT
key.
- The display changes to the “setting“ display
- Select a charge Output (1…4) with the SET key.
- Navigate through the “setting” display by repeatedly pres-
sing the SELECT key
. A cursor marks the adjustable value.
- The values are changed by pressing the SET key.
Example for the “setting” display of charge Output 2
Explanation:
The individual parameters can be set in the following ranges or
limits:
Output number: 1 to 4
CH: Battery voltage Charge current
0 - 8 V
: 0.1...5 A
8 -10 V: 0.1...4 A
10 -13 V: 0.1...3 A
13 -20 V
: 0.1…2 A
over 20 V: 0.1…1 A
DC: Battery voltage Discharge current
0 - 6 V: 0.1...5 A
6 - 8 V: 0.1...4 A
8 -10 V: 0.1...3 A
10 -16 V: 0.1...2 A
over 16 V: 0.1...1 A
Charge and discharge currents are dependent on the battery
voltage and are automatically limited to the preceding
values by the device.
Operating modes: (Programs)
- CHA: Charging in automatic mode
- CHM: Charging in manual mode
- DCA: Discharge-charge in automatic mode
- DCM: Discharge-charge in manual mode
- REA: 3 cycles discharge-charge in automatic mode
- REM: 3 cycles discharge-charge in manual mode
- D/C: Regeneration program, with discharging and subse-
quent C/5-charging
Battery types:
NC: Nickel cadmium batteries (NC)
NH: Nickel metal hydride batteries (NiMH)
Pb:
Lead batteries
LI: Lithium-ion batteries (Li) 3.6V/cells
LP:
Lithium-ion polymer batteries (Lp) 3.7V/cells
C Cell count
NC batteries:
1 to 16 cells (nominal voltage 1.2...19.2V)
NH batteries:
1 to 16 cells (nominal voltage 1.2...19.2V)
Pb batteries: 1 to 6 cells (nominal voltage 2...12V)
LI batteries: 1 to 4 cells (nominal voltage 3.6…14.4V)
LP batteries:
1 to 4 cells (nominal voltage 3.7...14.8V)
Ah:
Battery capacity
0.1 to 20 Ah with different increments:
0.1...1.0 Ah = increment 0.1 Ah
1.0...5.0 Ah = increment 0.5 Ah
6.0...20 Ah
= incr
ement 1.0 A
With intermediate values, set the next higher value.
5
Output num-
ber
Status
display
Actual
voltage
Time elapsed in min.
and sec.
Charge or
discharge current
Charged or discharged
capacity
4.3 STATUS DISPLAY AND EXPLANATION
N
No battery No battery connected
C
Char
ge
Char
ging pr
ocedur
e
D
Discharge Discharging procedure
D/C
Discharge/Charge Discharge/charge cycle
F
Finish Process completed
R
Ready Char
ger r
eady
-
Negative value
Discharge value (curr
ent or capacity)
+
Positive value
Charge value (current or capacity)
Output num-
ber
Char
ge current
(CHARGE)
Operating
mode
Battery
type
Discharge current
(DISCHARGE)
Nominal capacity
Cell count
Cursor
