Rigging
Mounting points: 2 pairs of 1/4-turn locks
Mounting horizontally or vertically via 2 Omega brackets
Temperatures
Maximum ambient temperature: 45°C (for CE)
25°C (for cETLus)
Maximum housing temperature : 170° C (at air vents in xture head)
Minimum distances
Min. distance from ammable surfaces: 1 m
Min. distance to alight object: 8 m
Connection
DMX data in/out: Locking 3-pin and 5-pin XLR
ArtNet: RJ 45 (Neutrik Ethercon)
AC power IN: Chassis connector Neutrik PowerCon, A-type, NAC3MPA
Total heat dissipation
6480 BTU/h (calculated)
Weight (net):
37.9 kg

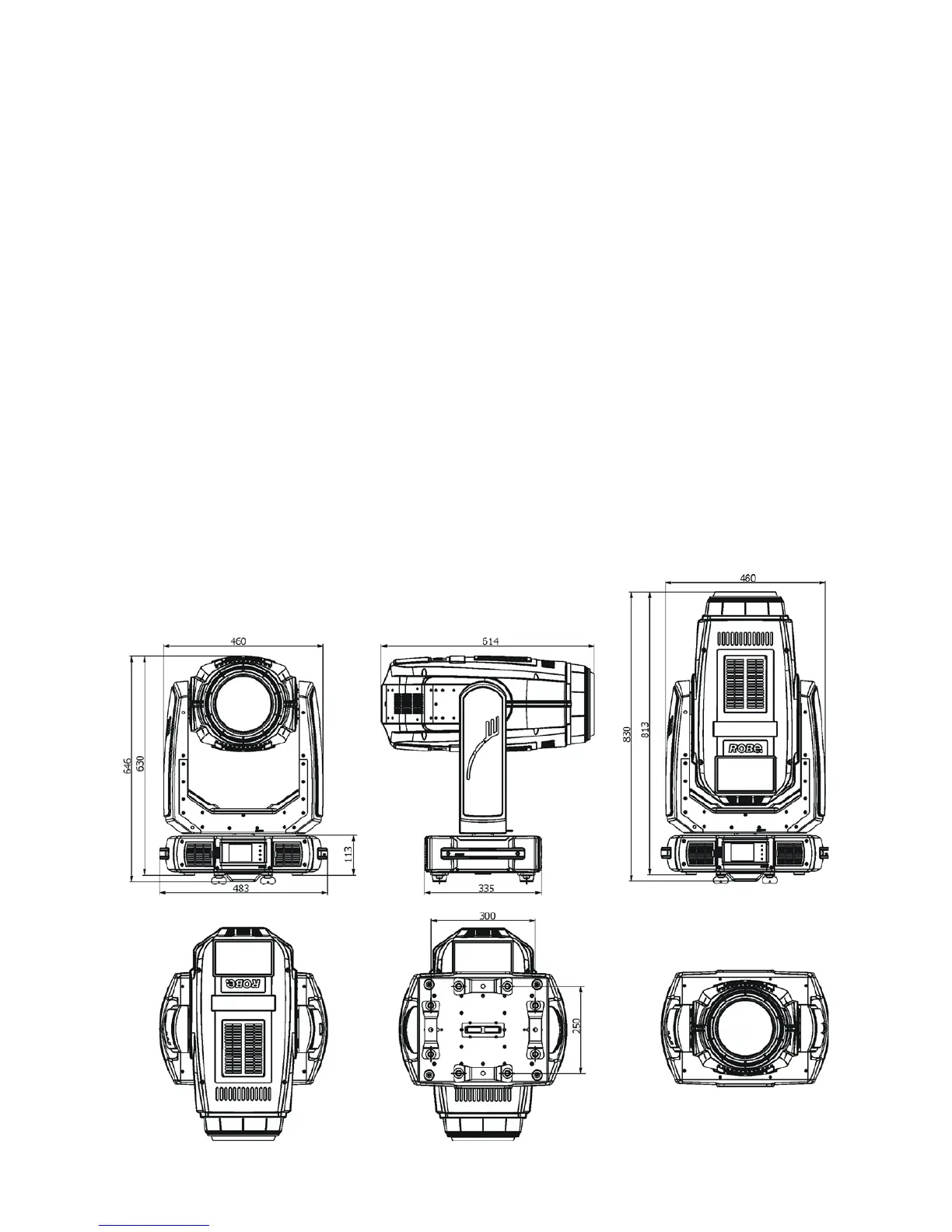

Dimensions (mm)
