Robe Robin LedBeam 150 - Page 20

20
Full DMX delity and frame integrity
Auto sensing of DMX frame rate and frame size
<5ms DMX latency
Operational frequency range of 2402-2480 MHz
Producer: LumenRadio
Connection
DMX data in/out: Locking 5-pin XLR
AC power input: Chassis connector Neutrik PowerCon, A-type, NAC3MPA
AC power output: Chassis connector Neutrik PowerCon, B-type, NAC3MPB
Rigging
Mounting points: pair of 1/4-turn locks
Mounting horizontally or vertically via Omega bracket
Temperatures
Maximum ambient temperature : 45° C
Maximum housing temperature : 80° C
Distances
Min. distance from ammable surfaces: 0.4 m
Min. distance of illuminated objects: 0.8 m
Total heat dissipation
750 BTU/h (calculated)
Weight:
5.7 kg

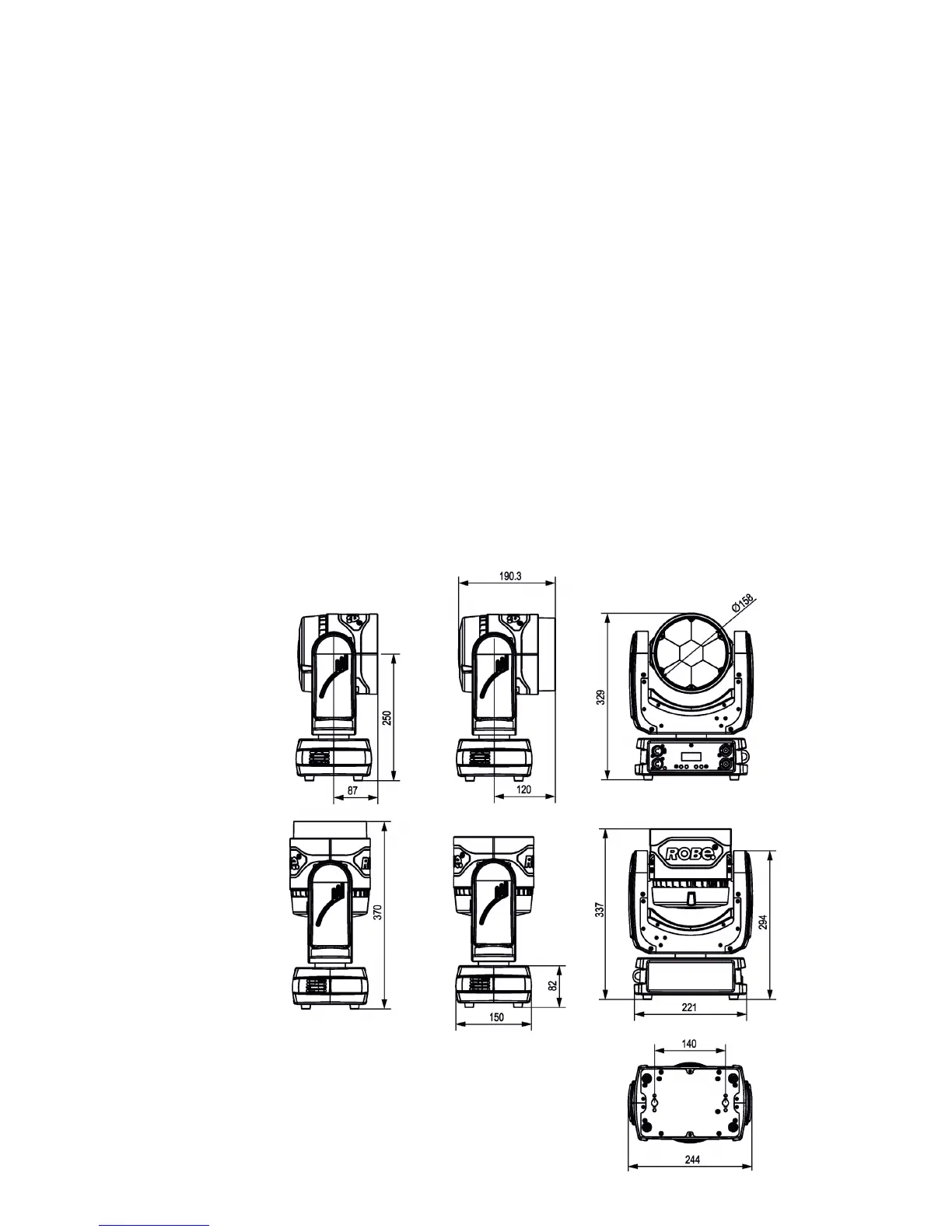

Dimensions (mm)
