9.1 Replacing fuse

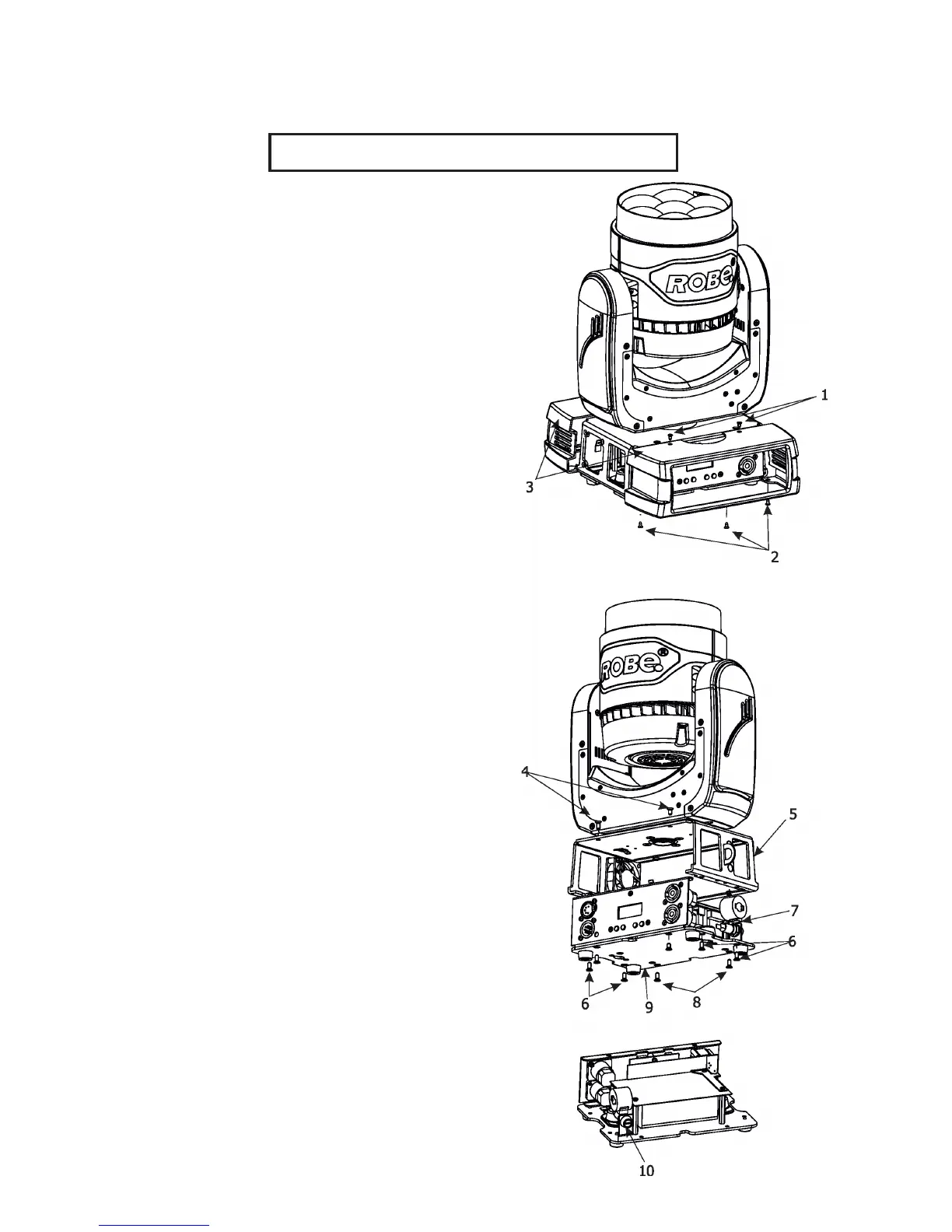

1.Replace the fuse by a fuse of the same type and rating only.
Before replacing the fuse, unplug mains lead!
2. Remove the plastic covers of the base (3) by unscrewing 5
fastening screws (1) and (2) on each cover.
3. Unscrew four screws (4) on the top chassis (5). Lay down
the xture and unscrew four screws (6) on the bottom plate
(9) to push out inside module of the base.
4. Unscrew two screws (8) on the bottom plate to remove
rear panel of the xture (7).
5. Now you have access for the fuse holder (10) in the inside
module of the base.
6. Remove the old fuse from the fuseholder.
7. Install the new fuse into the fuseholder.
8. Assemble the base of the xture.
