3.8. Wireless DMX operation
The external Robe Wireless CRMX-LB100 module allows receiving wireless DMX. CRMX module operates
on the 2.4 GHz band.
Push in the 5-pin XLR plug (1) into 5-pin XLR sockit (4) and simultaneously locating pin (2) into hole (5) in the
xture. In this way the wireless DMX module is connected with the xture and prepared for operation.
NOTE: when you disconnect the DMX wireless module from xture, press and hold lock (5) during getting the
wireless module out.
To link the xture with DMX transmitter.
The xture can be only linked with the transmitter by running the link procedure at DMX transmitter .
After linking , the level of DMX signal ( 0-100 %) is displayed in the menu item “Stat“ (Special -->Vireless --
>Stat).
To unlink the xture from DMX transmitter.
The xture can be unlinked from receiver via the menu item “ Unlink“ (Special-->Vireless -->Unlink.).

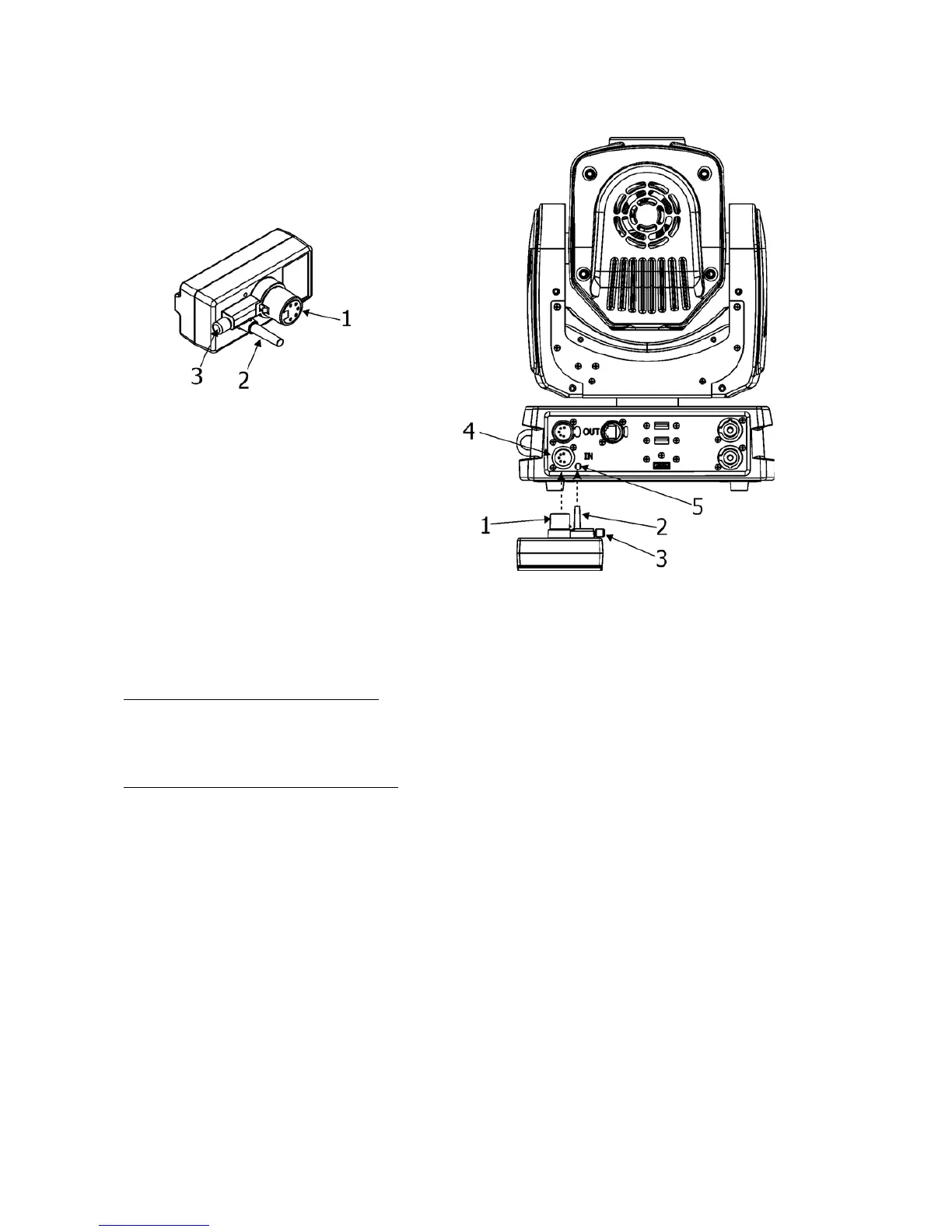

1 - 5-pin XLR (female)
2 - Locating pin
3 - Lock
Robe Wireless CRMX-LB100
