23
Supported protocols: USITT DMX 512, RDM,
2 DMX modes (27, 21 control channels)
External Wireless DMX/RDM module (option)
Compliance with USITT DMX-512 (1986 & 1990) and 512-A
Full DMX delity and frame integrity
Auto sensing of DMX frame rate and frame size
<5ms DMX latency
Operational frequency range of 2402-2480 MHz
Producer: LumenRadio
Connection
DMX data in/out: Locking 5-pin XLR
Power IN: Neutrik NAC3MPX
Power OUT: Neutrik NAC3FPX
Rigging
Mounting points: pair of 1/4-turn locks
Mounting horizontally or vertically via one Omega holder
Temperatures
Maximum ambient temperature : 45° C
Maximum housing temperature : 70° C
Distances
Min. distance from ammable surfaces: 0.4 m
Min. distance to lighted object: 0.8 m
Total heat dissipation
340 BTU/h (calculated)
Weight (net)
7.5 kg

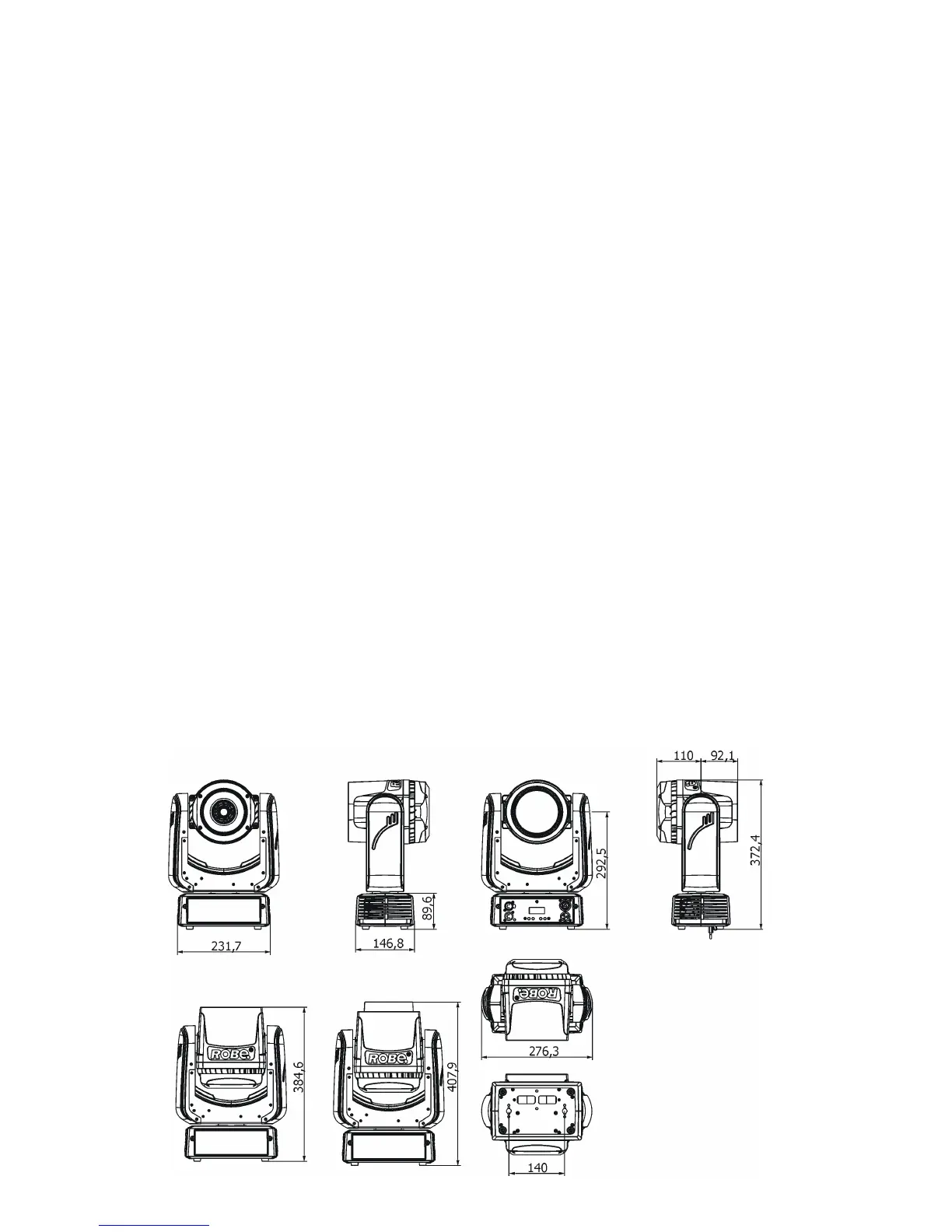

Dimensions (mm)
