Robe ROBIN T1 Profile - Technical Specifications; Electrical; Optic

38
10. Technical Specications
Electrical
Power supply: electronic auto-ranging
Input voltage range: 100-240V, 50-60Hz
Fuse: T 10 A
Max. power consumption: 750W (power factor 0.98)
Optic
Light source type: MSL™ 550 W Multi-Spectral LED engine
CMY/RGB colour mixing
CRI setting range: Standard (80) - High (90+)
Min. LED life expectancy: 30.000 hours
Virtual colour wheel
67 preset colours
70 preset multicolours
10 user colours
Rainbow e󰀨ect with variable speed
Colour temperature correction
White light: Variable CCT 2700K – 8000K
Halogen lamp e󰀨ect at whites 2700K- 4200K
E󰀨ect wheel
Aluminium e󰀨ect wheel rotating in both directions with variable speed
Rotating gobo wheel
7 glass gobos can be indexed and rotated in both directions at di󰀨erent speeds,
gobo wheel continuous rotation
Gobos: outside diameter= 26.8
+0,1
mm, image diameter=23.5 mm, thickness=1-3.5 mm, high
temperature borooat or better glass. Do not use steel gobos 0.15mm
"Slot&lock" system for easy replacement of gobos

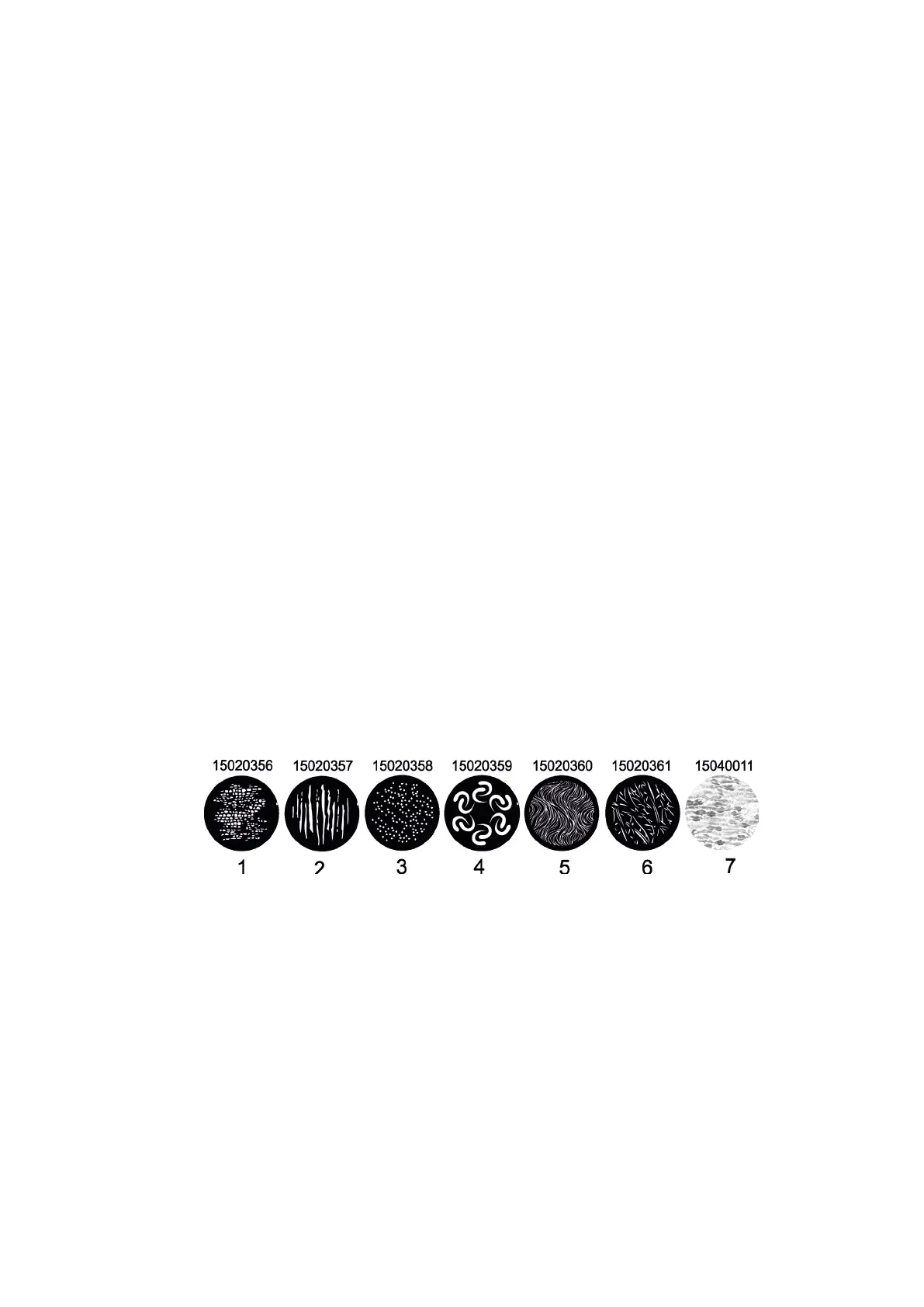

Gobos order:
Note. Metal (or aluminium) gobos cannot be used due to thermal stress.
Prism
Rotating 6-facet prism with continuous rotation in both directions
Iris Motorized iris for di󰀨erent beam diameters
Frost lters
2 separate,variable frost lters ( light (0.5°) and medium (10°))
The medium lter is replaceable
Framing shutters module
4 individually positionable shutters plus rotation of the complete frame system +/- 60°
Each framing shutter can be swiveled
