Robe ROBIN T1 Profile User Manual

5

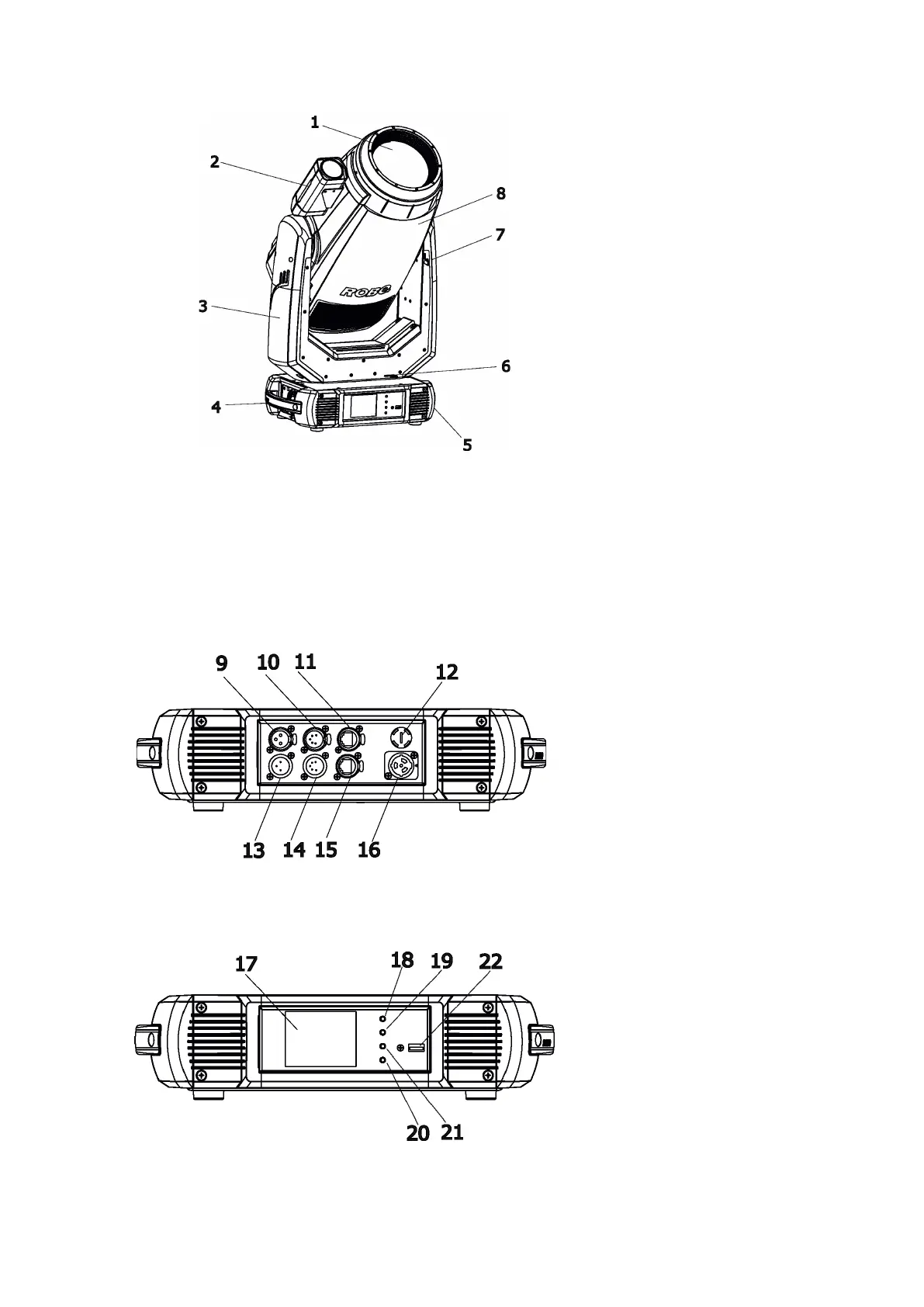

3. Fixture exterior view
Rear panel of the base:
9 - 3-pin DMX output
10 - 5-pin DMX output
11 - Ethernet input (RJ45)
12 - Fuse holder
13 - 3-pin DMX input
14 - 5-pin DMX input
15 - Camera output (RJ 45)*
16 - Power (PowerCon True 1)
* T1 Prole FS only
Front panel of the base:
17 - QVGA touch screen
18 - ESCAPE button
19 - NEXT button
20 - ENTER/DISPLAY ON button
21 - PREV button
22 - USB port
The head has to be locked for transportation- the tilt lock latch (7) and the pan lock latch (6) have to be in the
locked positions. To unlock the head, move these latches to unlock positions before operating the xture.
1 - Front lens
2 - Camera*
3 - Arm
4 - Handle
5 - Base
6 - Pan lock
7 - Tilt lock
8 - Head
*T1 Prole FS only
The ENTER/DISPLAY ON button also serves for switching the display on when the xture is disconnected
from the mains.
