4.4 Installing the top hat
Disconnect the xture from mains before installing the top hat.
1. Disconnect the xture from mains.

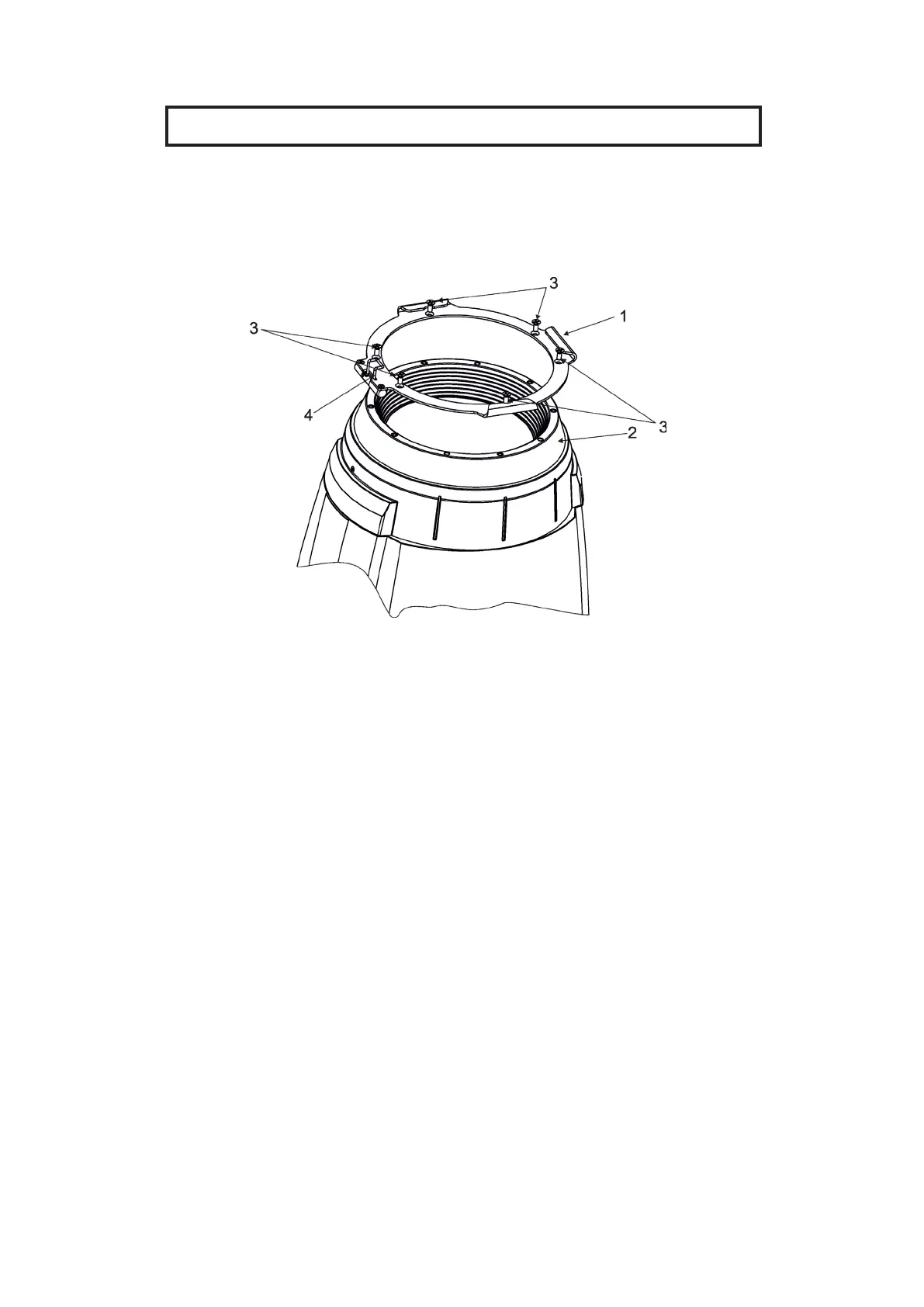

2. Remove the original gel frame adaptor P/N 10980440 (1) from the xture head (2) by unscrewing six screws
M4x10 (3)
3. Screw the new gel frame adaptor P/N 10980474 (supplied with the top hat) by means of the six screws
M4x10 (3).
4. Insert the top hat to the gel frame adaptor and secure it by a spring lock (4).
Note: the gel frame adaptor P/N 10980474 serves for the top hat only.
If you need to insert the gel frame (P/N 10980443) to the frame adaptor, you should screw the original gel frame
adaptor P/N 10980440.
