TECHNICAL FILE
2500W HMI FOLLOW SPOT
DATA
IN
DATA
OUT
By - pass
Booster

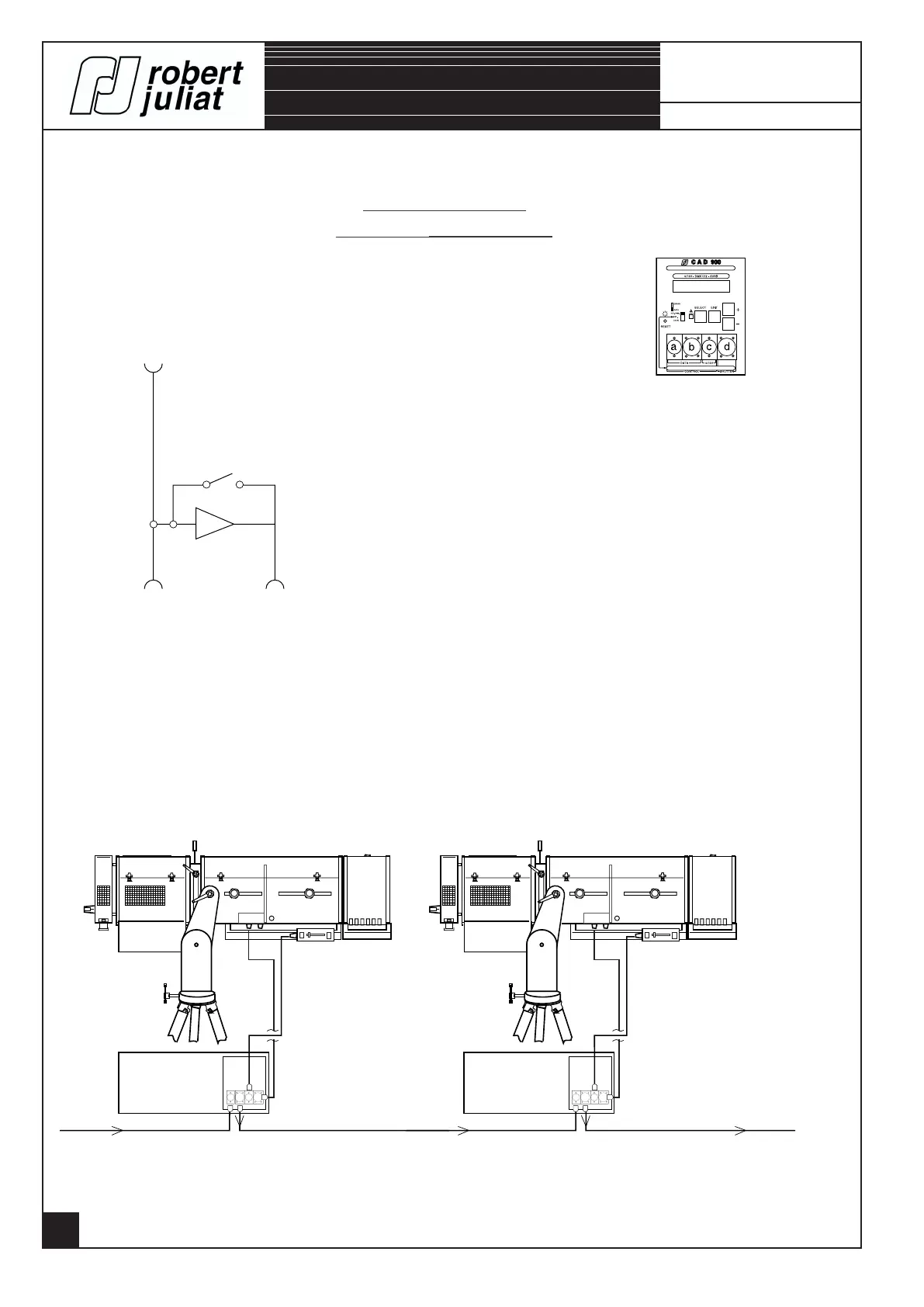

NETWORK USE
DIGITAL (DMX - AVAB)
DATA OUT OPTION (ON THE LIGHTING UNIT).
To install the DATA line, daisy chain all units.
You can not make a star conguration. In this case - use a specic DATA splitter.
- The DATA goes to the connector DATA IN on the
CAD 900 ( a ) .
- The signal is present on the DATA output of the
lighting unit.
- When the lighting unit is in use, there are two
possiblities for the output - DATA OUT :
1 : Booster on - The signal passes by an amp.
2 : Booster off - The signal passes on direct on
the output.
( Refer to User's manual CAD 900 - page 11 ).
- When the lighting unit is not in use ( power supply
off ), the DATA is still present on DATA output.
etc.
OUTIN
Output
Dimmer
OUTIN
Output
Dimmer
a
b
d
c
a
b
d
c
CONNECTIONS
2 - LINK USE.
1 - PRINCIPLE.
1039B & 1439B
