TECHNICAL FILE
2500W HMI FOLLOW SPOT
1039, 1039B,
1439 & 1439B
- The identication plate situated on the 2500W HMI Follow spot.

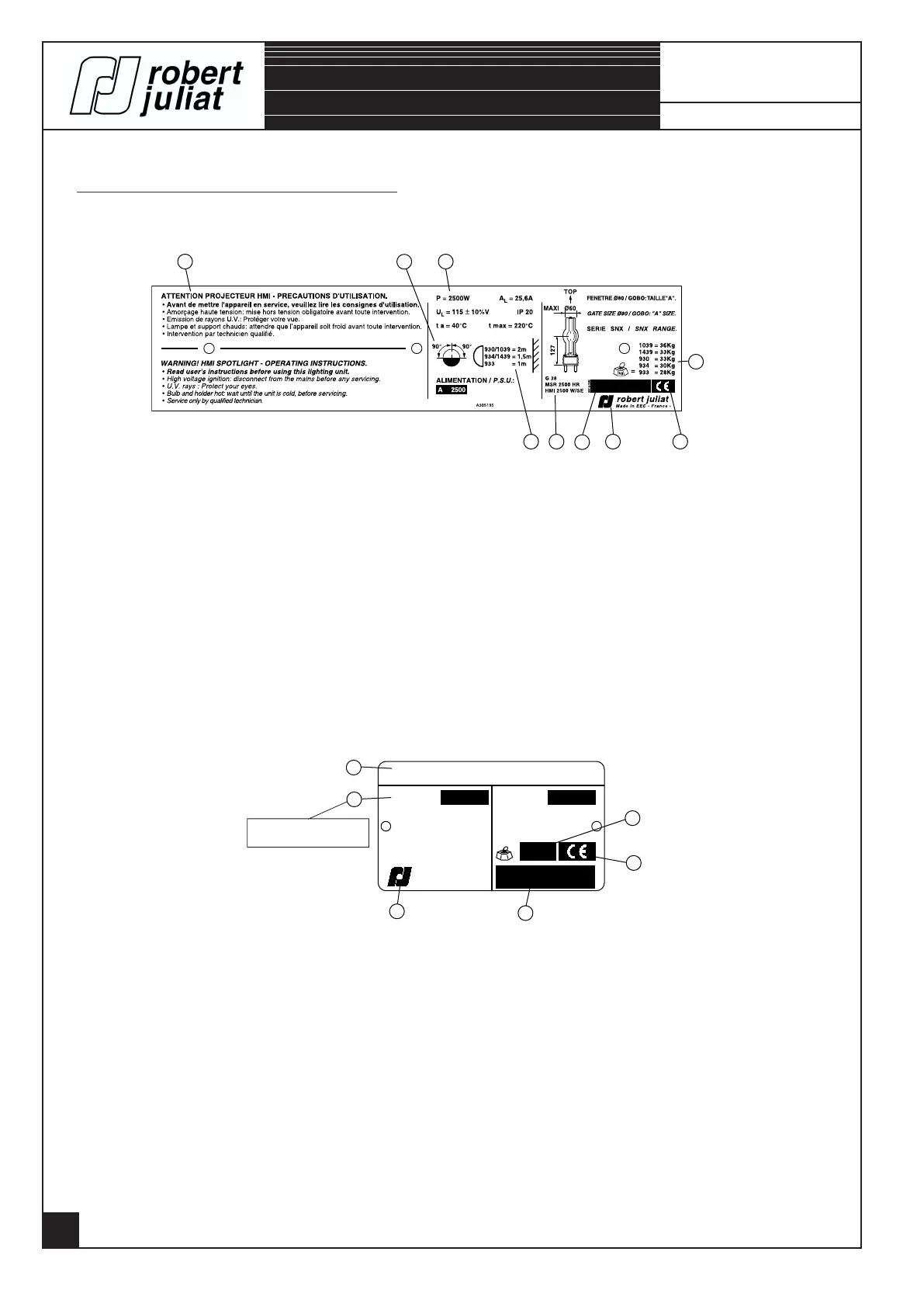

THE IDENTIFICATION PLATES.
- The identication plate situated on the 2500W power supply unit for:
1 User's instructions, read the previous page
attentively.
2 The brand mark, manufacturer's name and
origin of the product.
3 Control N°: WeeK, Year & Serial number.
4 Conformity European.
5 Net weight without accessories.
6 - Lighting unit's reference & technical characteristics.
- The type of power supply unit necessary.
- P = Maximum power authorised.
- A
L
= Max. lamp intensity.
- U
L
= Max. voltage at the lamp terminal.
- IP 20 = indoor use ONLY.
- t a = surrounging temperature.
- t max = External maximum temperature
of the unit.
7 Restrictive position use:
front view.
8 Minimum distance between a ammable
material and the lighting unit.
9 Types of admissible lamps.
1 Power supply description.
2 - Power supply reference & technical characteristics.
- P = Maximum power authorised.
- A = Normal intensity.
- Cos Ø = dephasing between the voltage & current.
- The unit version & lamp power.
- t a = surrounging temperature.
- t max = External maximum temperature
of the unit.
- IP 20 = indoor use ONLY.
3 The brand mark, manufacturer's name and
origin of the product.
4 Control N°:-
Year, Week, unit N° & type.
5 Conformity European.
6 Net weight.
Unity used :
- Dimensions = metre (m) millimetre (mm). - Frequency = Hertz (Hz).
- Weight = Kilogramme (Kg). - Power = Watts(W).
- Intensity = Ampere (A). - Temperature = Degree Celsius (°C).
- Voltage = Volts (V).
1
5
6
9
2
3
4
7
8
0100108C
CO NTROL E
P = 2880W.
A = 12A.
Cos Ø = 0,95
±
5%.
ALIMENTATION POUR LAMPE A DECHARGE
DISCHARGE LAMP P.S.U.
VERSION
IP20.
t a = 40°C. t max = 100°C.
robert juliat
Made in EEC - France -
kg
A405272
=
MODELE
30Kg
A2 2500
1
5
6
2
3
4
9627450 HMI
A2 2500 = 1039 & 1439
A3 2500 = 1039B & 1439B
