Robert Juliat MARIUS - The Identification Plates; Putting the Lighting Unit Onto Its Tripod

robert juliat Route de Beaumont F 60530 Fresnoy-en-Thellle phone: 33 (0)3.44.26.51.89 - fax: 33 (0)3.44.26.90.79 - www.robertjuliat.fr
Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.
VALID SINCE : 18.06.01
10
DOSSIER TECHNIQUE
1200W MSR/MSD COLD STRIKE FOLLOW SPOTS
DocTech1019CS_CCS_0601.ind
- The identication plate situated on the 1200W MSR Follow spot.

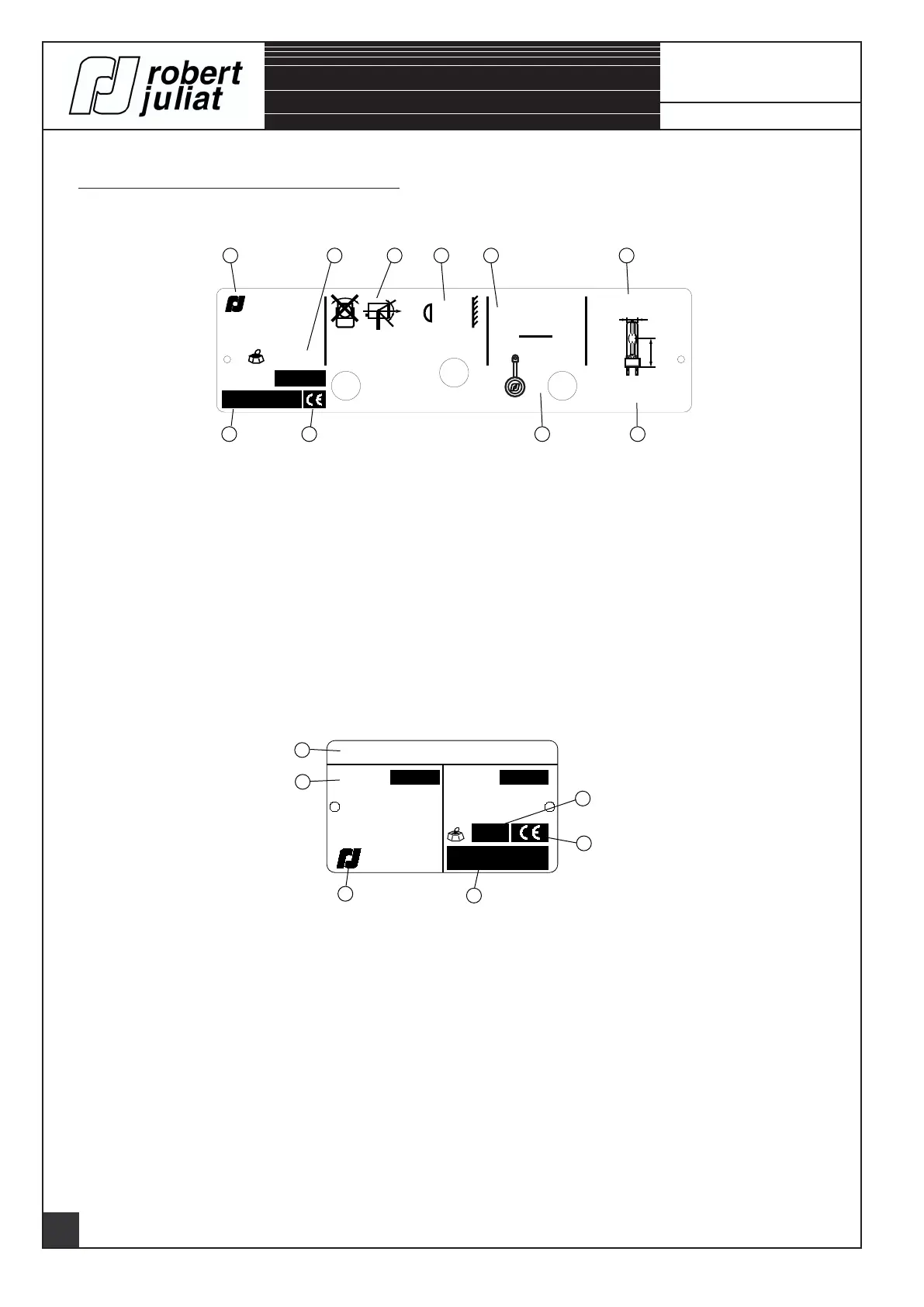

THE IDENTIFICATION PLATES.
- The identication plate situated on the 1200W power supply unit for:
Unity used :
- Dimensions = metre (m) millimetre (mm). - Frequency = Hertz (Hz).
- Weight = Kilogramme (Kg). - Power = Watts(W).
- Intensity = Ampere (A). - Temperature = Degree Celsius (°C).
- Voltage = Volts (V).
1 User's instructions, read the previous page
attentively.
2 The brand mark, manufacturer's name and
origin of the product.
3 Control N°: Year & WeeK.
4 Conformity European.
5 Net weight without accessories.
6 - Lighting unit's reference & technical characteristics.
- The type of power supply unit necessary.
- P = Maximum power authorised.
- A
L
= Max. lamp intensity.
- U
L
= Max. voltage at the lamp terminal.
- IP 20 = indoor use ONLY.
- t a = surrounging temperature.
- t max = External maximum temperature
of the unit.
7 Restrictive position use:
front view.
8 Minimum distance between a flammable
material and the lighting unit.
9 Types of admissible lamps.
10 Type of lamp base accepted.
1 Power supply description.
2 - Power supply reference & technical characteristics.
- P = Maximum power authorised.
- A = Normal intensity.
- Cos Ø = dephasing between the voltage & current.
- The unit version & lamp power.
- t a = surrounging temperature.
- t max = External maximum temperature
of the unit.
- IP 20 = indoor use ONLY.
3 The brand mark, manufacturer's name and
origin of the product.
4 Control N°:-
Year, Week, unit N° & type.
5 Conformity European.
6 Net weight.
CONTROLE
P = 1440W.
A = 6A.
Cos Ø = 0,90 ± 5%.
ALIMENTATION POUR LAMPE A DECHARGE
DISCHARGE LAMP P.S.U.
VERSION
IP20.
t a = 40°C. t max = 100°C.
robert juliat
Made in EEC - France -
kg
A405273a
=
MODELE A1 1200
1
5
6
2
3
4
A
2 7 6 9
3 8
10
4
5 8
2.80m
50°
50°
robert juliat
Mad e i n EE C - France -
A406519
LAMPE ADMISSBLE /
ADMISSIBLE LAMP.
ALIM. / P.S.U.
MODELES :
1019 - 1419 - 1119
CONTROLE
kg
= 36Kg MAX.
UL = 100 ± 10% . IP20
P = 1200W. A
L
= 13,8A.
t a = 40°C. t max = 170°C.
BLOCAGE DOUILLE
SOCKET LOCKING
230V : A1 1200
110V : A1 1200C
GOBO "A" SIZE
MSR - MSR/2 - MSD.HSR
1200W G22
85
N° DE SERIE
SERIAL N° :
MAXI
Ø 40mm
1019 CS & CCS
1119 CS & CCS
1419 CS & CCS
