VALID SINCE : 18.06.01
12
DOSSIER TECHNIQUE
1200W MSR/MSD COLD STRIKE FOLLOW SPOTS
DocTech1019CS_CCS_0601.ind
Power supply unit
(P.S.U.)
Mains voltage.
- Check the conformity of the power supply unit.
Rating plate 7 : Lamp power.
Lighting unit / Power supply connection.
- Connect the lighting unit’s power cable C to the P.S.U. 1 .
- Place the lamp into position - refer to page 16.
- Connect the cable 2 to the mains.
CAUTION - For your security !
- Never open the lantern's bonnet when the
lighting unit is on.
- Never connect to a dimmable channel.
- Use only when lamp in place.

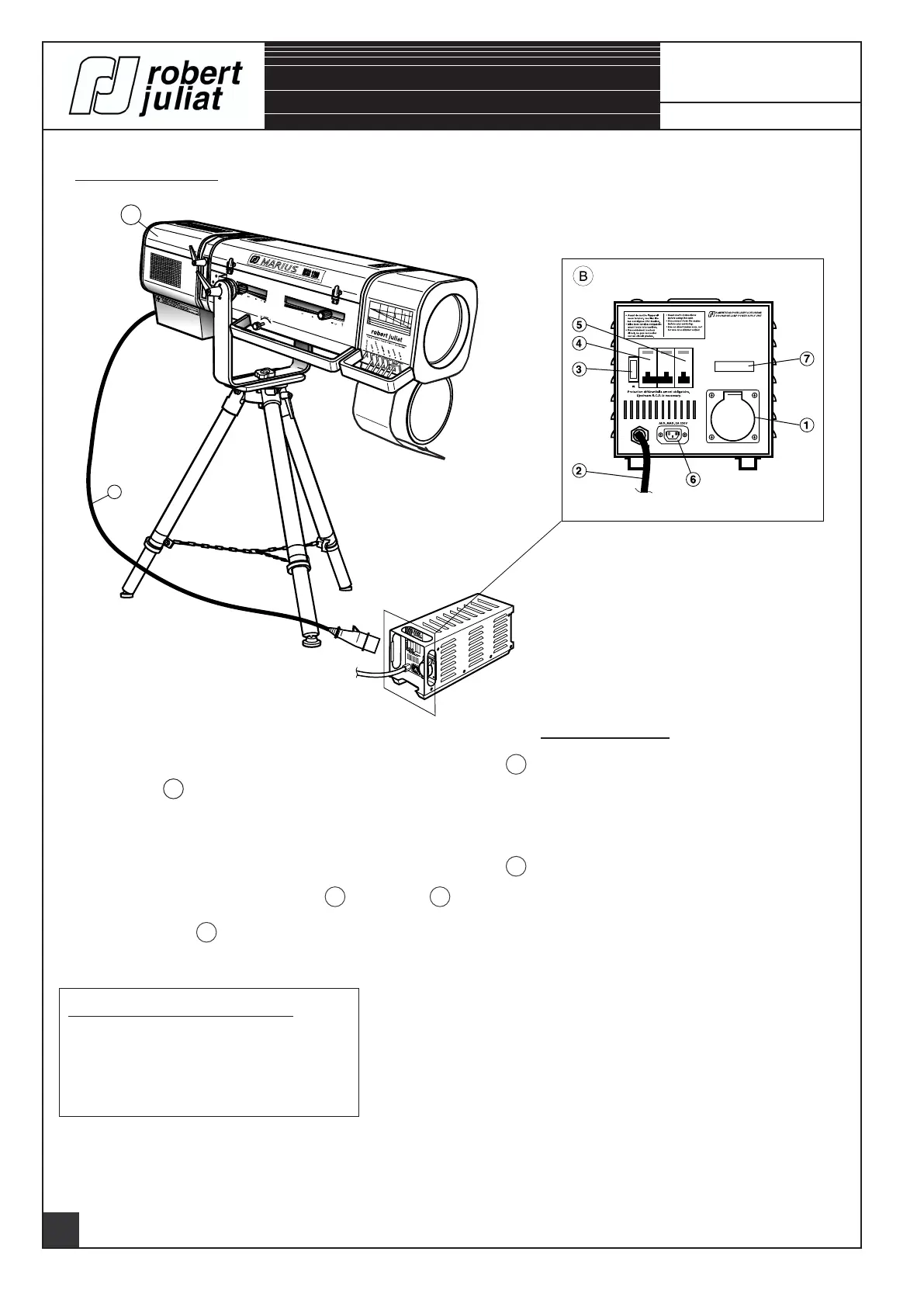

DESCRIPTION.
A 1200W Cold strike follow spot.
c - Lighting unit's power cable.
Cable H07 RN-F 4G 1,5mm
2
length 3m fitted
with a 3 point + E, P17 male plug.
B Power supply unit.
1 - Female socket P17 - 16A (BLACK).
2 - Mains cable.
3 - Mains, checklight.
4 - UNI + N 16A automatic breaker (208/245V).
- General 25A circuit breaker (110V).
5 - UNI + N 10A automatic breaker (208/245V).
- UNI + N 2A automatic breaker (110V).
6 - 10A. EEC - Female mains socket.
7 - Rating plate.
xxxxxxxxxx
CONNECTIONS.
c
A
M
S
R
1
2
0
0
1019 CS & CCS
1119 CS & CCS
1419 CS & CCS
