BLADE ADJUSTMENT

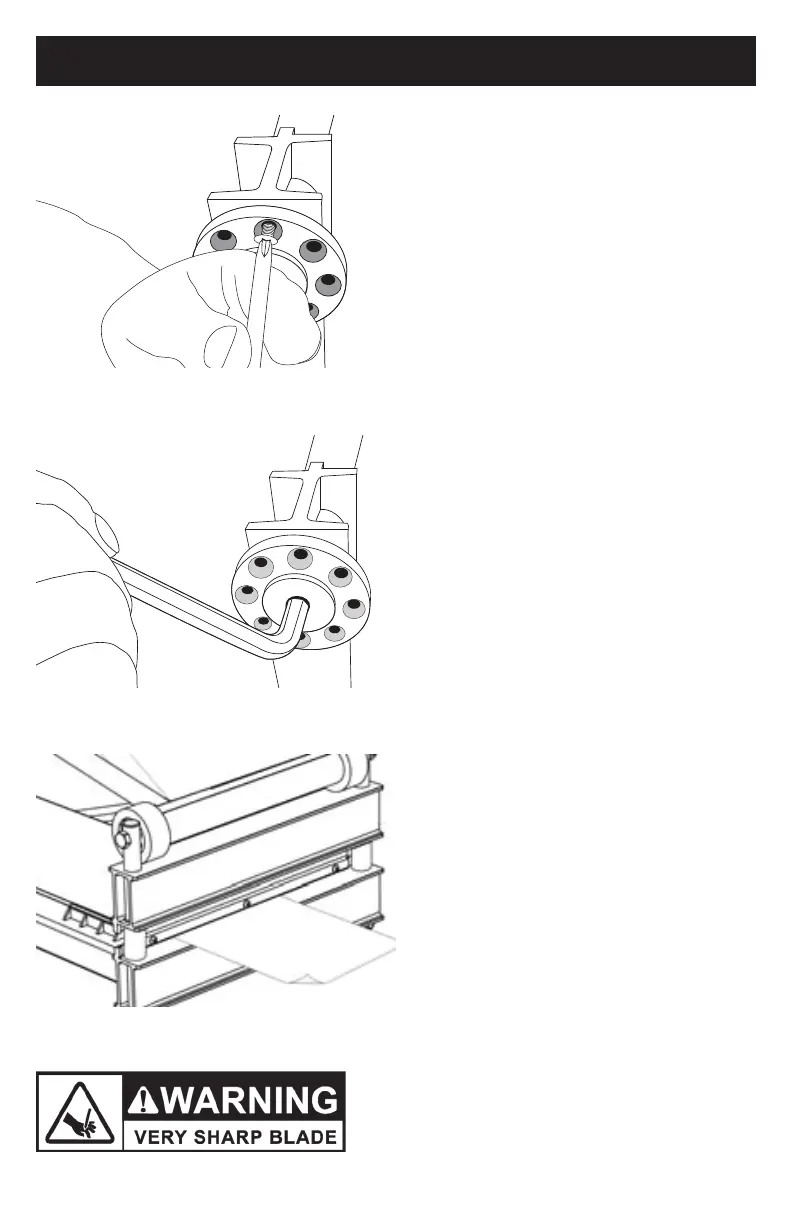

ADJUSTING THE BLADE
1. Unscrew and remove the
adjustment plate screws (Fig. 6).
2. Tighten both adjustment plates
by 1 or 2 holes (Fig. 7).
NOTE: The pitch on each lifting
screw is .125mm. The adjustment
on both plates must be the same.
3. Cut a piece of paper to ensure the
tool is set correctly (Fig. 8).
CUT GUIDE
Your tool cuts a wide variety of
products. Please refer to this cut
guide for recommended products
and thicknesses.
• Laminate Flooring ................13mm
• Vinyl Composite Tile ............13mm
• Soft Plastic ............................13mm
• Vinyl Siding ........................... 13mm
• Fiber Cement Siding ............13mm
FIGURE 6
FIGURE 7
FIGURE 8
