12
Press to step through the following:
The display will now show the day, the
setpoint, fan setting and off.
Exiting the Installation Test Utility returns the
thermostat to normal operation.
Refer to the User Manual to change day, time and schedule.
The Thermostat is now ready to begin operation.
The thermostat will be in the OFF (default) mode at start up.
The following sections will explain how to select the mode of operation
and how to protect the settings.

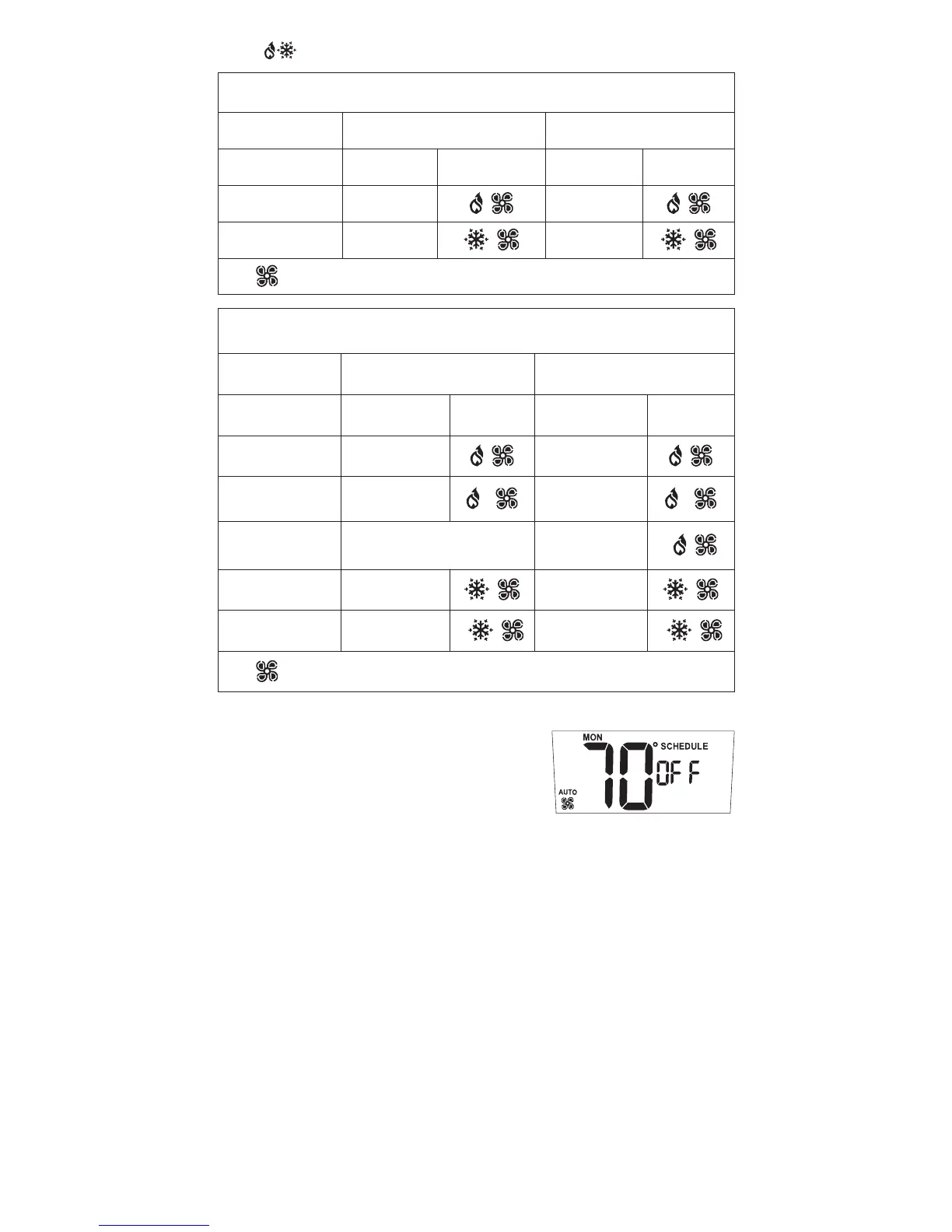

Installation Tests for Multi-Stage Models
Conventional (Non-HP) Heat Pump (HP)
Demand Terminal Display Terminal Display
First Stage Heat W1 + G* Y1 + G + B
Second Stage
Heat
W1 + W2 + G*
2
Y1 + W2 +G + B
2
Third Stage /
Emergency Heat
N/A E + G
E
First Stage Cool Y1 + G Y1 + G + O
Second Stage
Cool
Y1 + Y2 + G
2
Y1 + Y2 + G + O
2
* G, will be off (not displayed) for Non-HP with Gas
Installation Tests for Single Stage Models
Conventional (Non-HP) Heat Pump (HP)
Demand Terminal Display Terminal Display
First Stage Heat W1 + G* Y1 + G
First Stage Cool Y1 + G Y1 + G + O
* G, will be off (not displayed) for Non-HP with Gas.
