Robin America EX21 - Wiring Diagram

- 51 -
Stop switch
Flywheel
Ignition coil
(with built-in transistor)
Black
Spark plug

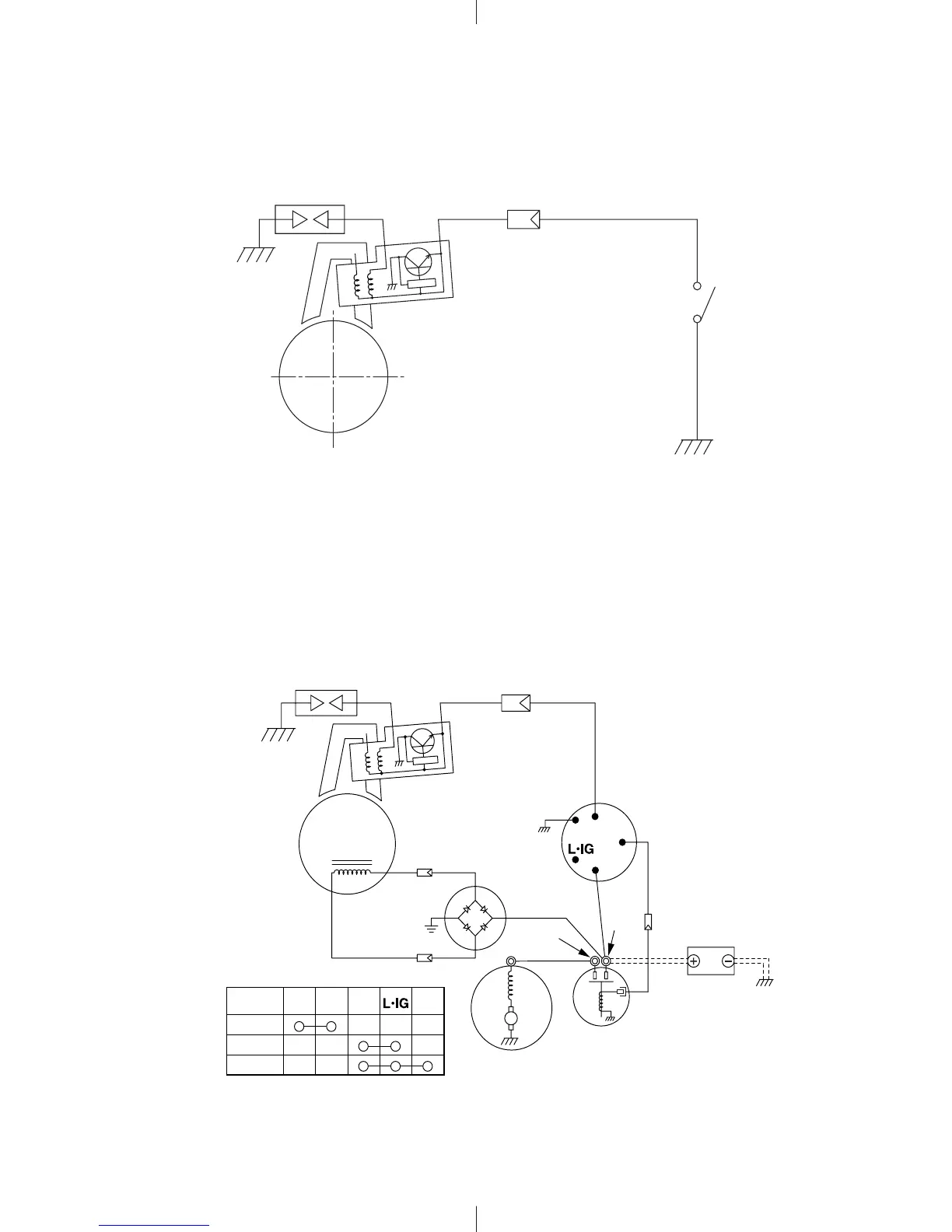

8. WIRING DIAGRAM
8-1 MODEL WITHOUT ELECTRIC STARTER (Models EX13, 17, 21 and 27)
8-2 MODEL WITH ELECTRIC STARTER (Models EX17 and 21)
Fig. 8-1
Fig. 8-2
+M
- M
ST
B
LA106
LA406
LA306
Black
Red
Charge coil
Diode rectifier
Ignition coil
Spark plug
Key switch
Battery
(12V24AH)
Electric starter
Magnetic switch
Magneto
K
ey switch
0
66-00003-30
-M +M BS
OFF
ON
START
