Robin EC03ER - 4 Recoil Starter; Disassembly

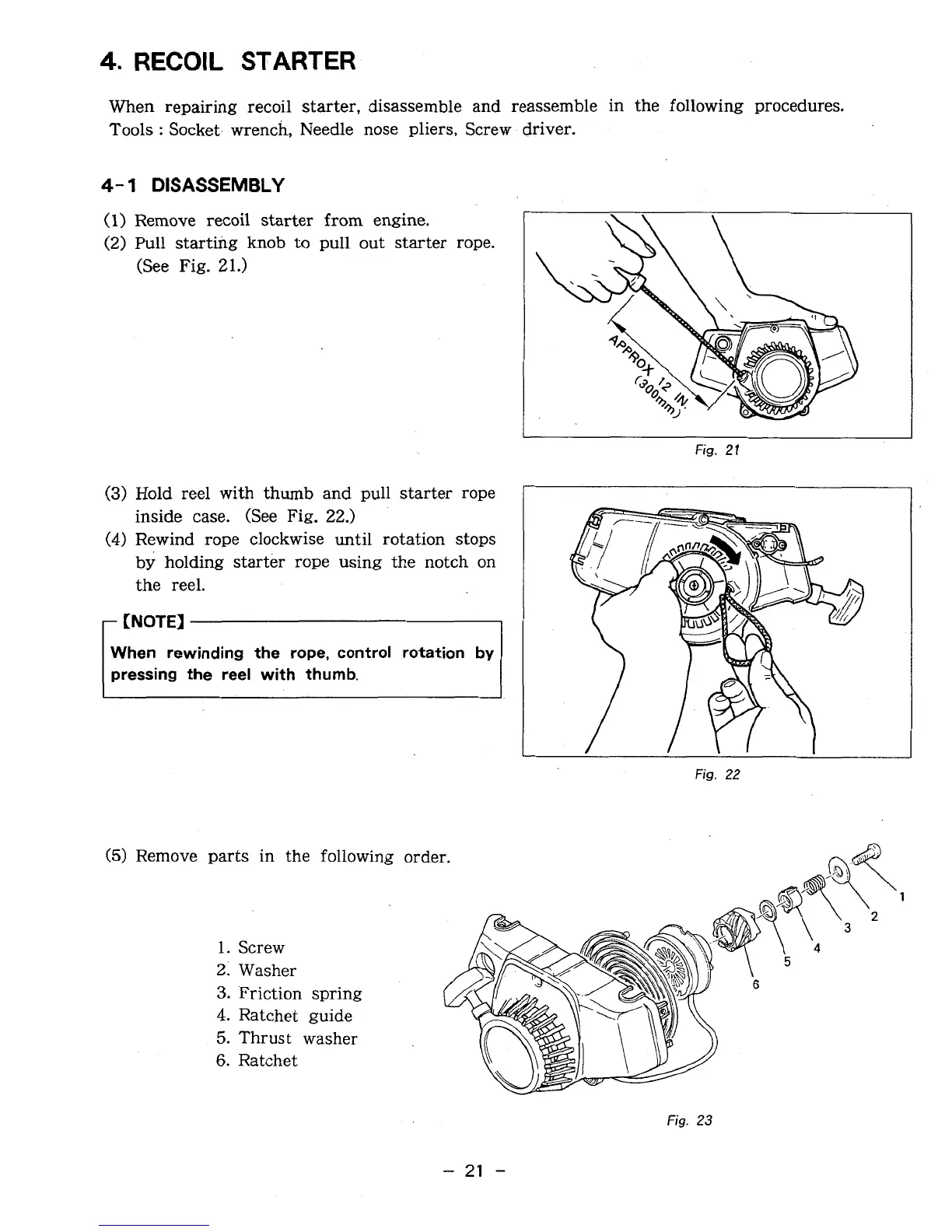

4. RECOIL STARTER
When repairing recoil starter, disassemble and reassemble in the following procedures.
Tools
: Socket. wrench, Needle nose pliers, Screw driver.
4- 1 DISASSEMBLY
(1) Remove recoil starter from engine.
(2) Pull starting knob to pull out starter rope.
(See Fig. 21.)
Fig. 21
(3) Hold reel with thumb and pull starter rope
inside case. (See Fig. 22.)
(4) Rewind rope clockwise until rotation stops
by holding starter rope using the notch on
the reel.
When rewinding the rope, control rotation by
pressing the
reel with thumb.
Fig. 22
Remove parts in the following
1. Screw
2: Washer
3. Friction spring
4. Ratchet guide
5. Thrust washer
6. Ratchet
Fig. 23
- 21 -
