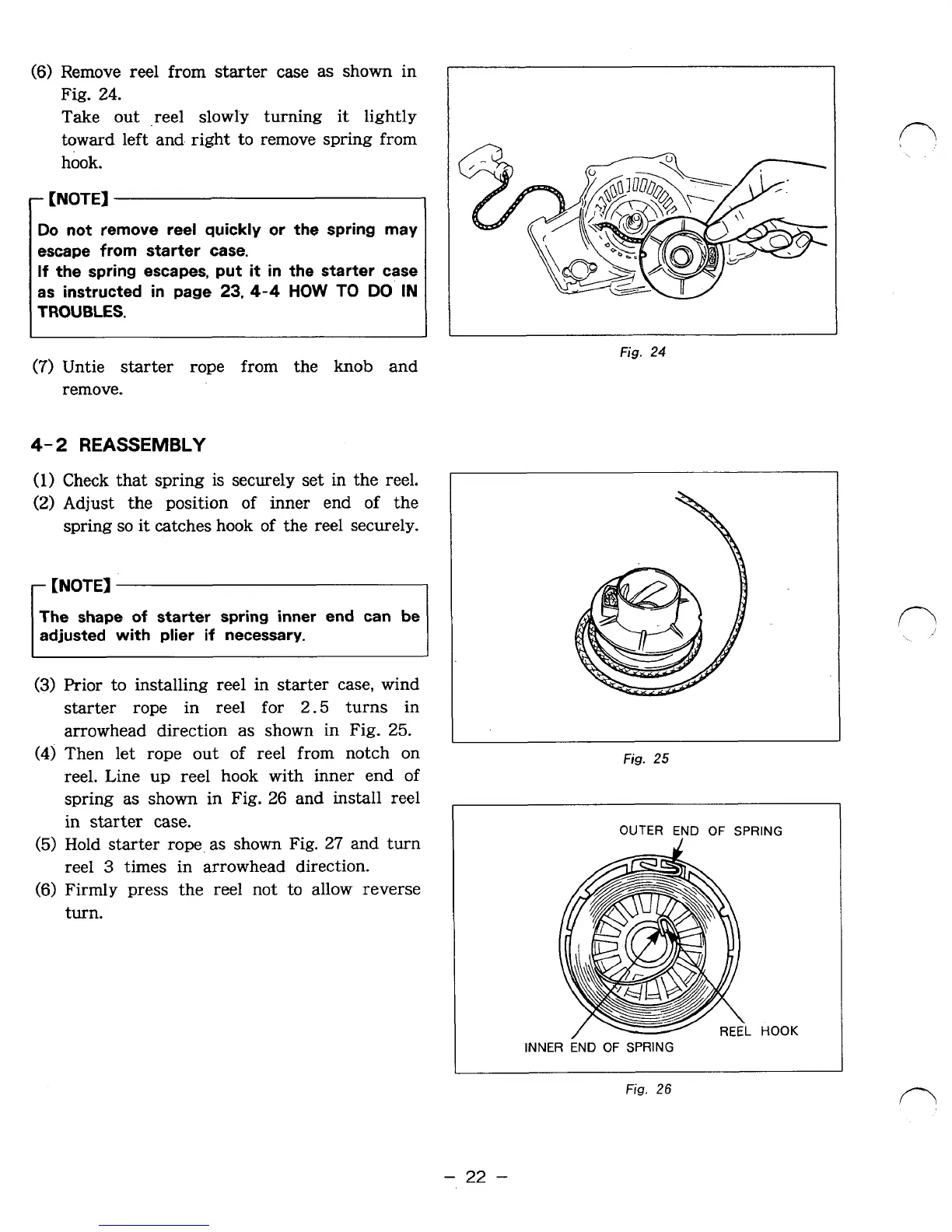

(6)
Remove reel from starter case as shown in
Fig.
24.
Take out .reel slowly turning it lightly
toward left and right
to
remove spring from
hook.
-
[NOTE]
Do
not remove reel quickly or the spring may
escape from starter case.
If
the spring escapes, put
it
in the starter case
as
instructed in page
23,
4-4
HOW
TO
DO'
IN
TROUBLES.
(7)
Untie starter rope from the
knob
and
remove.
4-
2
REASSEMBLY
(1) Check that spring is securely set in the reel.
(2)
Adjust the position
of
inner end
of
the
spring
so
it catches hook
of
the reel securely.
[NOTE]
I
The shape
of
starter spring inner end can be
adjusted with plier
if
necessary.
(3)
Prior
to installing reel in starter case, wind
starter rope in reel for 2.5 turns in
arrowhead direction as shown in Fig. 25.
(4)
Then let rope out
of
reel from notch
on
reel. Line up reel
hook
with inner end of
spring
as
shown in Fig.
26
and install reel
in starter case.
(5)
Hold starter rope, as
shown
Fig. 27 and turn
(6)
Firmly press the reel not
to
allow reverse
reel
3
times in arrowhead direction.
turn.
Fig.
24
Fig.
25
I
OUTER END
OF
SPRING
INNER
END OF
SPRING
Fig.
26
n
f-7
\
,'
f-7
-
22
-
