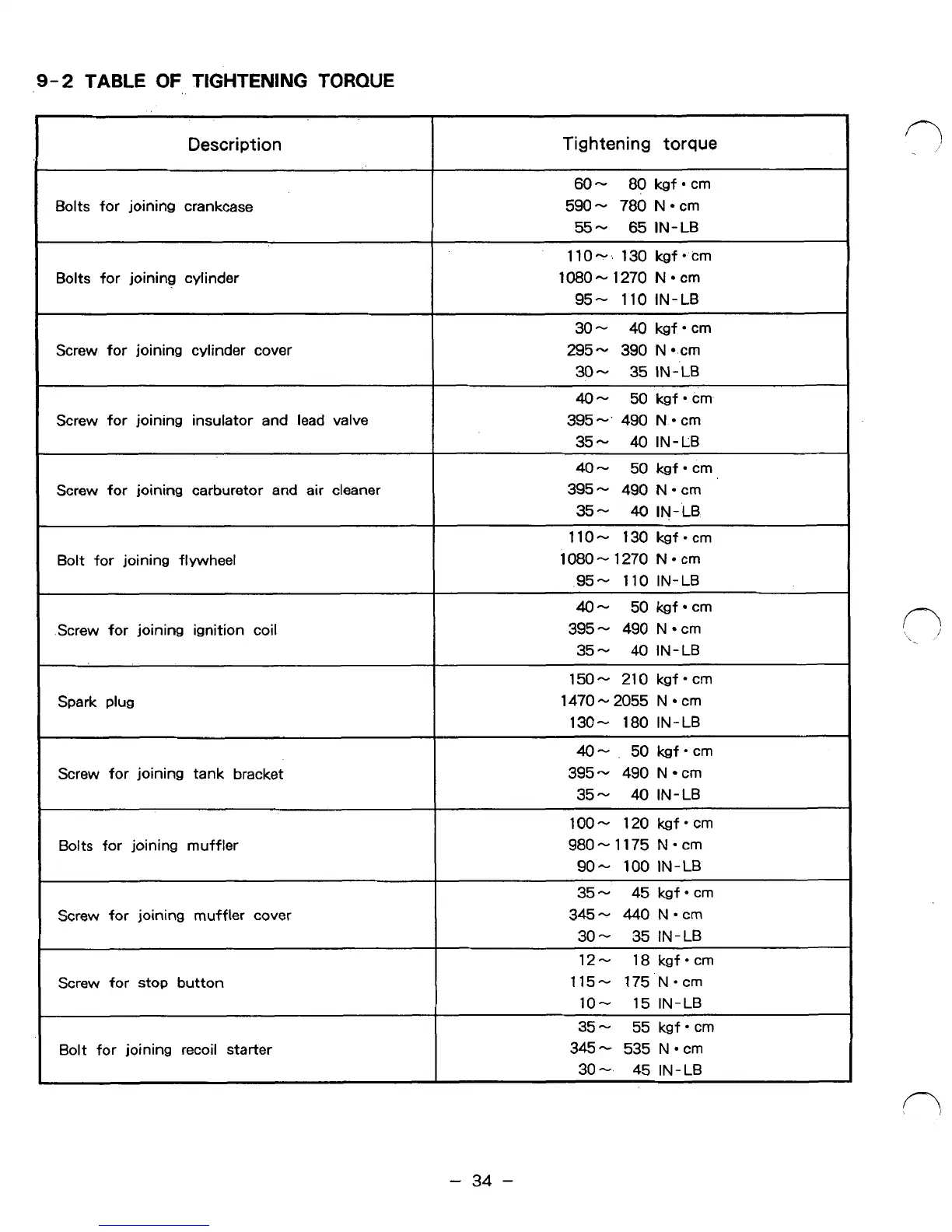

Robin EC03ER User Manual

9-2 TABLE OF TIGHTENING TORQUE
Description
Tightening torque
60 - 80 kgf cm
Bolts for joining crankcase
590
- 780 N cm
55- 65 IN-LB
110"; 130 kgf *cm
Bolts for joining cylinder
1080- 1270
N cm
95-
110 IN-LB
30
- 40 kgf cm
Screw for joining cylinder cover
295
- 390 N cm
30- 35 IN-LB
40- 50 kgf cm
Screw for joining insulator and lead valve
395
-. 490 N cm
35-
40 IN-LB
40
- 50 kgf cm
Screw for joining carburetor and air cleaner
395
- 490 N cm
35-
40 IN-LB
110- 130
kgf -cm
Bolt for joining flywheel
1080- 1270
N cm
95- 110 IN-LB
40- 50 kgf cm
Screw for joining ignition coil
395
- 490 N cm
35- 40 IN-LB
150- 210 kgf-cm
Spark plug
1470
- 2055 N cm
130- 180 IN-LB
40- . 50 kgf-cm
Screw for joining tank bracket
395
- 490 N cm
35-
40 IN-LB
100- 120 kgfocm
Bolts for joining muffler
980-1175 N-cm
90- 100 IN-LB
35
- 45 kgf cm
Screw for joining muffler cover
345
- 440 N cm
30- 35 IN-LB
12- 18 kgf-cm
Screw for
stop button
115- 175 N-cm
10- 15 IN-LB
35
- 55 kgf crn
Bolt for joining recoil starter
345
- 535 N cm
30- 45 IN-LB
