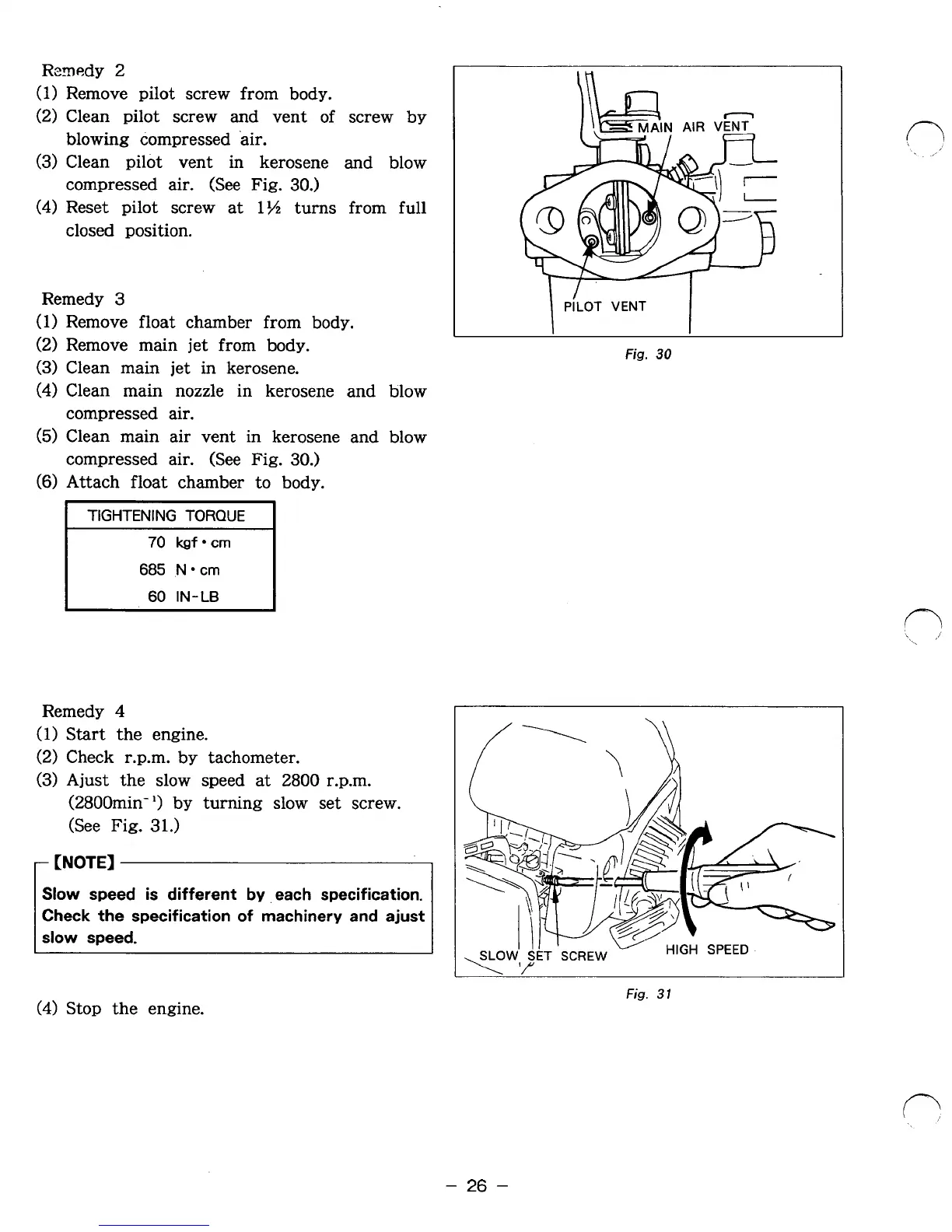

Rznnsdy 2
(1) Remove pilot screw from body.
(2) Clean pilot screw and vent of screw by
(3) Clean pilot vent in kerosene and blow
(4) Reset pilot screw at 1% turns from full
blowing compressed air.
compressed air. (See Fig. 30.)
closed position.
Remedy
3
(1) Remove float chamber from body.
(2) Remove main jet from body.
(3) Clean main jet in kerosene.
(4) Clean main nozzle in kerosene and blow
compressed air.
(5) Clean main air vent in kerosene and blow
compressed air. (See Fig.
30.)
(6) Attach float chamber to body.
TIGHTENING TORQUE
70 kgf crn
685 N cm
60 IN-LB
Remedy 4
(1) Start the engine.
(2) Check r.p.m. by tachometer.
(3) Ajust the slow speed at 2800 r.p.m.
(2800min”) by turning slow
set screw.
(See Fig. 31.)
[NOTE]
Slow speed is different by ,each specification.
Check the specification
of machinery and ajust
slow speed.
I PiLoT VENT I
Fig. 30
Fig. 31
(4) Stop the engine.
- 26 -
