Robin EC03ER User Manual

(Option)

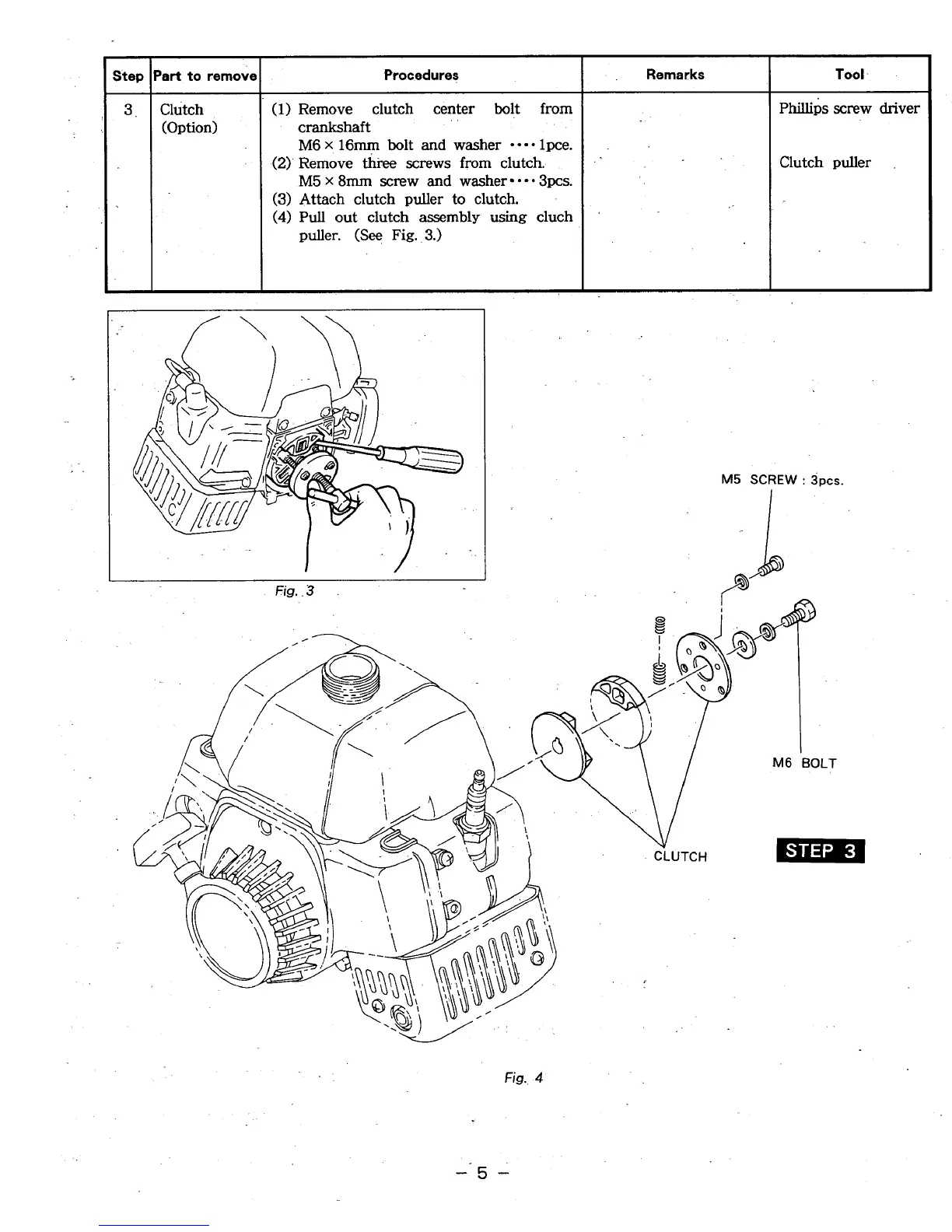

Procedures
(1) Remove clutch center bolt from
crankshaft
M6 x 16mm bolt and washer - *-* lpce.
(2) Remove ki-ee screws from clutch.
M5 x 8mm screw and washer *e* Spa.
(3) Attach clutch puller to clutch.
(4) Pull out clutch assembly using cluch
,,
puller. (See Fig. 3.)
Fig. .3
~mps screw driver
Clutch puller
M5 SCREW : 3pcs.
Fig. 4
-5-
