Robin EH17 User Manual

Step
6
-
7
'art to removc
Muffler cover
Muffler and
Muffler
bracket
Exhaust
manifold and
Manifold
cover

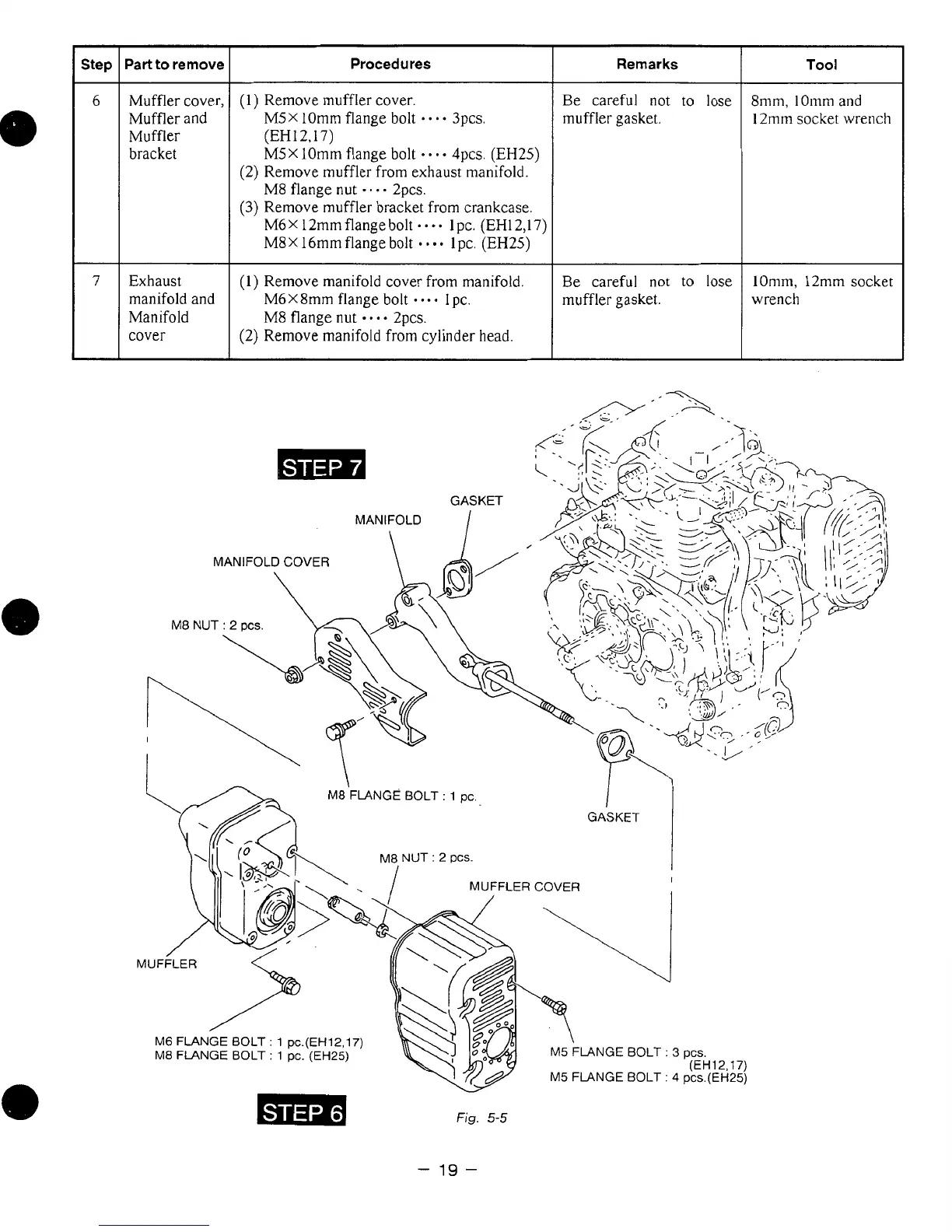

Procedures
(1) Remove muffler cover.
M5x lOmm flange
bolt .... 3pcs.
(EH12,17)
M5 X lOmm flange bolt - - 4pcs. (EH25)
(2) Remove muffler from exhaust manifold.
M8 flange nut
-. - - 2pcs.
(3) Remove muffler bracket from crankcase.
M6X 12mmflangebolt
e... lpc. (EH12,17)
M8X16mmflangebolt
.... lpc. (EH25)
(1) Remove manifold cover from manifold.
M6X8mm flange
bolt . . . . Ipc.
M8 flange nut .... 2pcs.
(2) Remove manifold from cylinder head.
Remarks
Be careful not to lose
muffler gasket.
Be careful not to lose
muffler gasket.
Tool
8mm, lOmm and
12mm socket wrench
IOmm, 12mm socket
wrench
