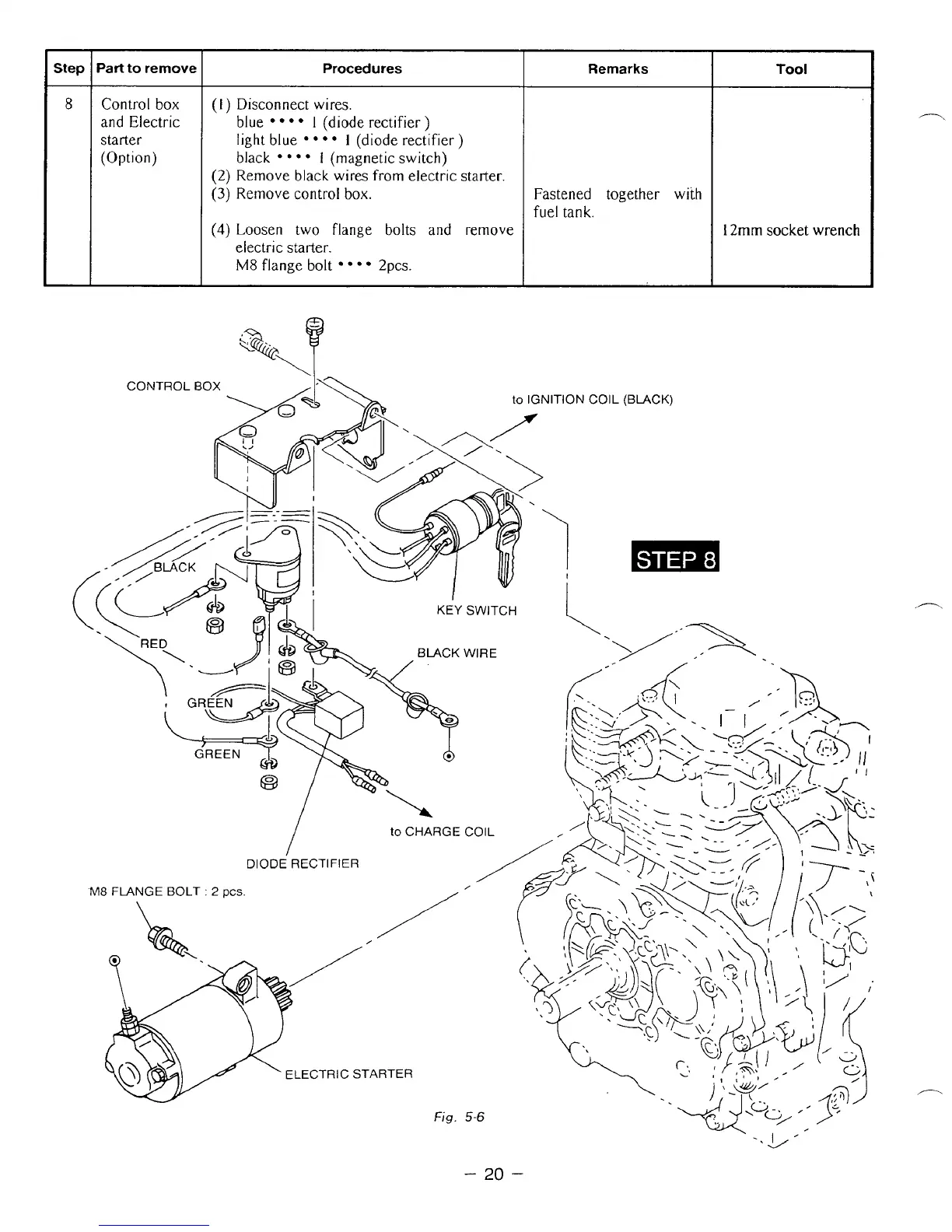

Step
a
Part
to
remove
Control box
and Electric
starter
(Option)
Procedures
(I
)
Disconnect wires.
blue
1
(diode rectifier
)
light
blue
I
(diode rectifier
)
black
I
(magnetic
switch)
(2) Remove black wires
from
electric starter.
(3)
Remove control box.
(4)
Loosen
two
flange bolts
and
remove
electric starter.
M8
flange
bolt
2pcs.
M8
FLANGE
BOLT
:
2
pcs.
\
/’
,/
ELECTRIC
STARTER
Remarks
Tool
Fastened together with
fuel tank.
12mm
socket wrench
Fig.
5-6
-
20
-
