Step
I
Part to remove
I
Procedures
~~~~
9
(1)
Remove head cover from crankcase. Head cover
M6x
12mrn flange
bolt
-.--
Ipc.
10
(1)
Remove cleaner cover, cleaner element
Air
cleaner
and element retainer.
(2)
Remove cleaner case.
M6
flange
nut
-..-
2pcs.
Remarks
Fastened together
with
carburetor.
GASKET
CLEANER CASE
Tool
I
Ornm
socket wrench
1
Omm
socket wrench

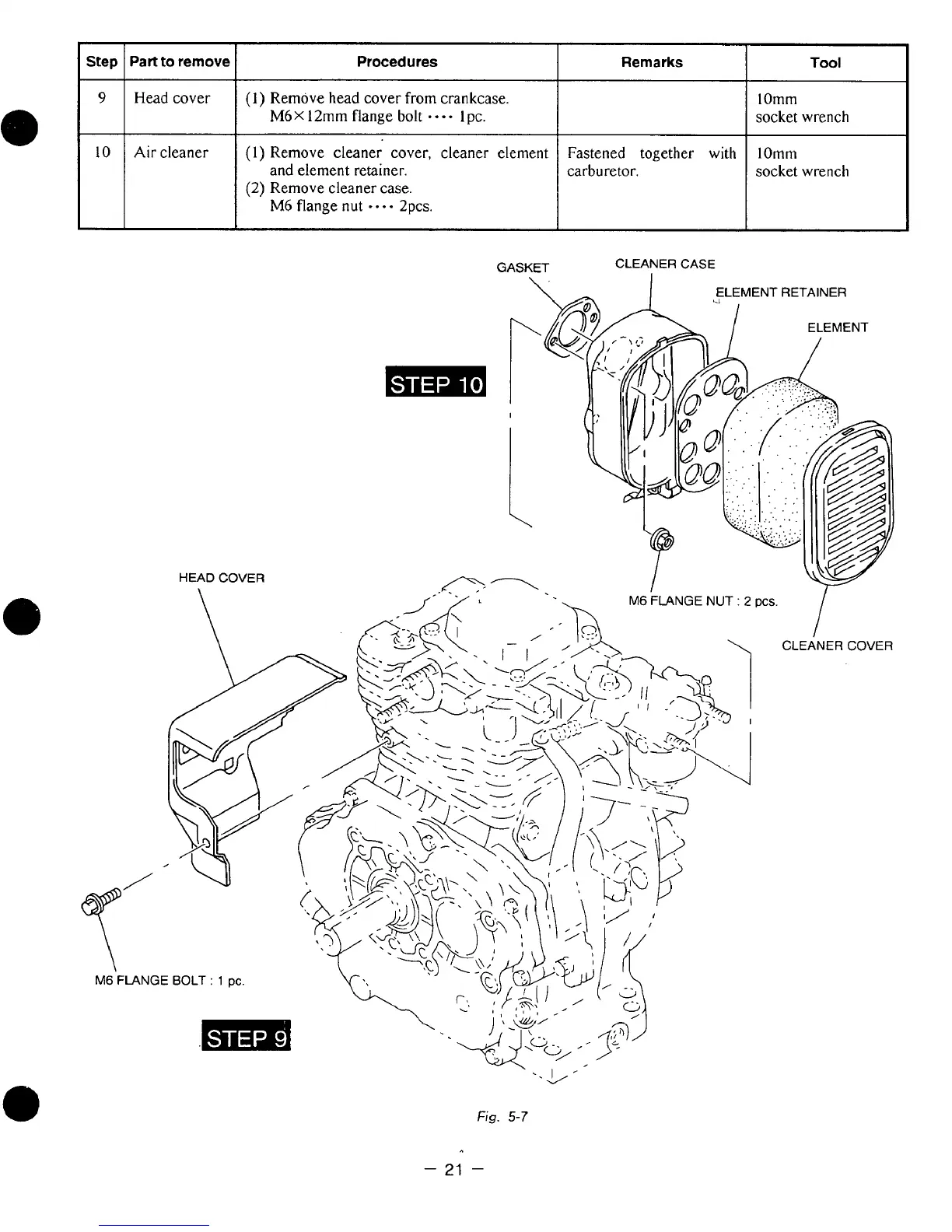

Fig. 5-7
-
