4. ELECTRIC STARTER MODELS
-
6
-
ENGLISHENGLISH

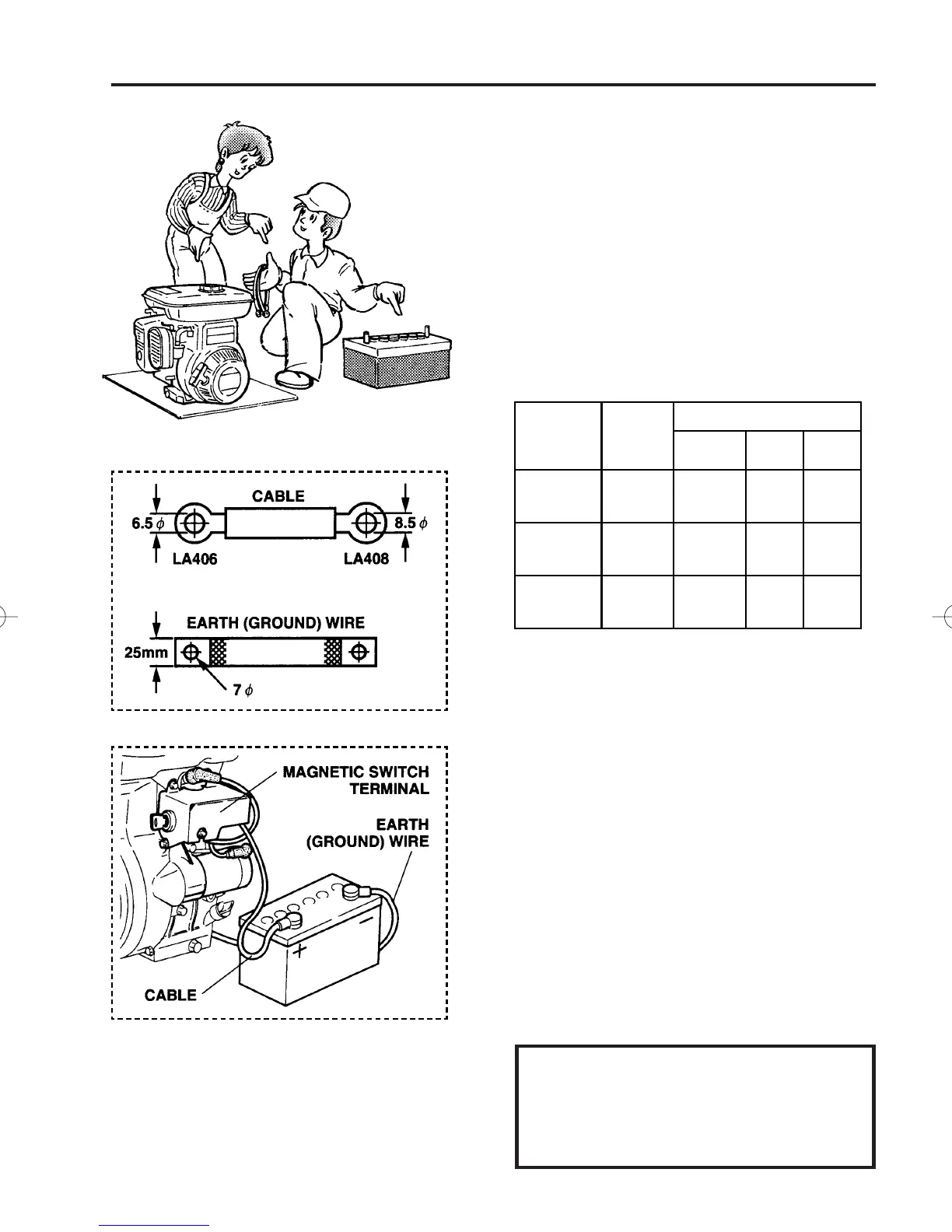

PARTS TO BE PREPARED
●
Use a battery rated 12V-24AH or larger.
●
Use a proper cable and ground wire
to connect battery.
BATTERY
For GROUND WIRE, use a flat braided
wire of 0.03 sq. in. or larger sectional
area. (SAE GAUGE #4)
WIRING
1.
Connect positive terminal on magnetic
switch and positive terminal of the
battery with battery cable.
2. Ground negative terminal of the
battery to the body of engine or
machine with ground wire.
3. When installing the key switch on
the machine, install with its drain
hole at the bottom.
NOTE
Tighten bolts and nuts on terminals
securely so they will not be loosened
by vibration.
CABLE
LENGTH
CABLE
DIA.
WIRE GAUGE
AWG (BS)
BWG
SAE JIS
Less than
1.5 m
7.3 mm 1 6 AV15
1.5 m
to 2.5 m
8.5 mm 0 4 AV20
2.5 m
to 4 m
10.8 mm 3/0 2 AV30
To Next Page
