Robin EH25-2D User Manual

- 7 -

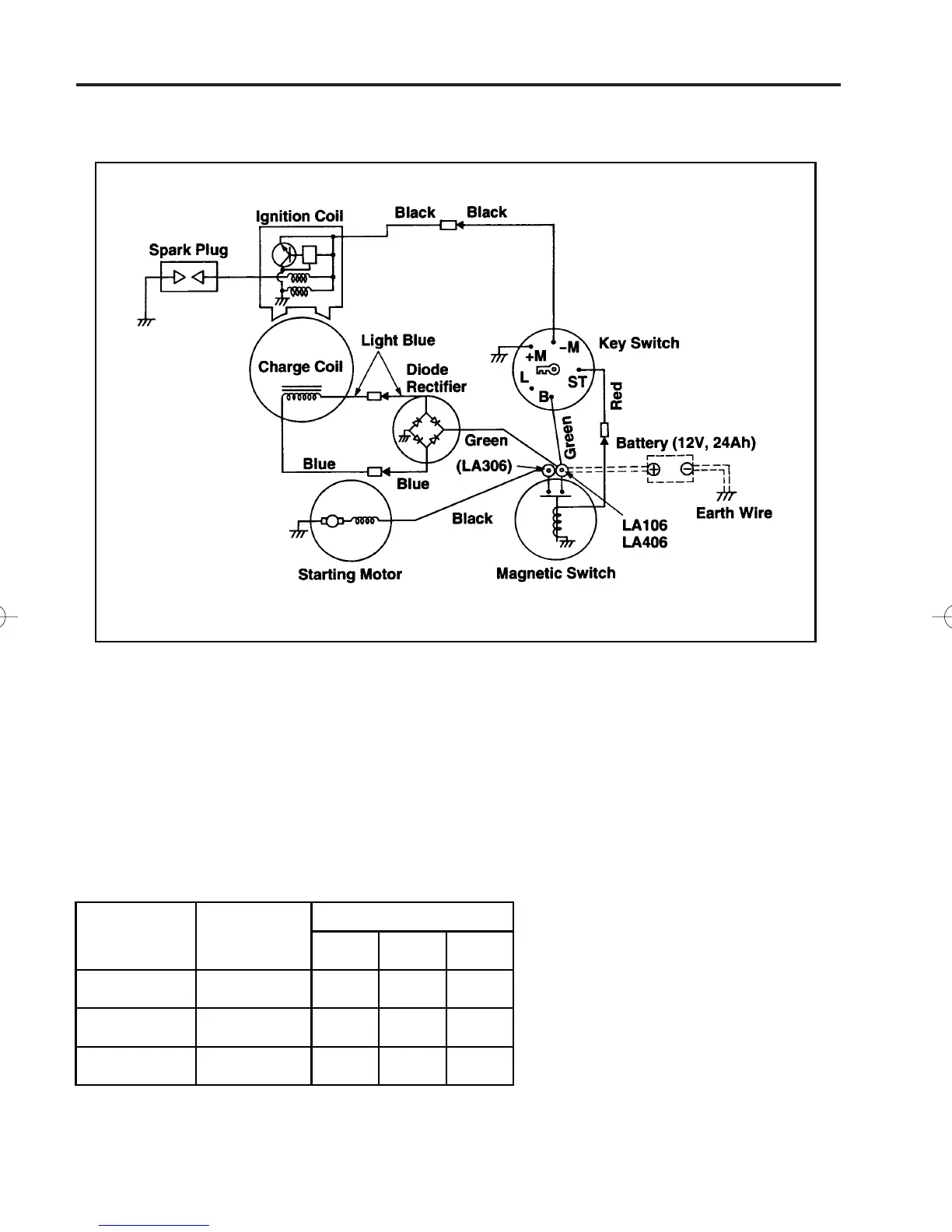

WIRING DIAGRAM
SWITCH CABLE
If a remote key switch is used, select wires of
proper gauge to connect it and magnetic switch
of the engine.
CABLE
LENGTH
CABLE
DIA.
WIRE GAUGE
AWG (BS) BWG JIS
Less than 1.5 m 1.5 mm 14 16 AV1.25
1.5 to 3 m 1.9 mm 12 14 AV2
3 to 5 m 2.4 mm 10 13 AV3
