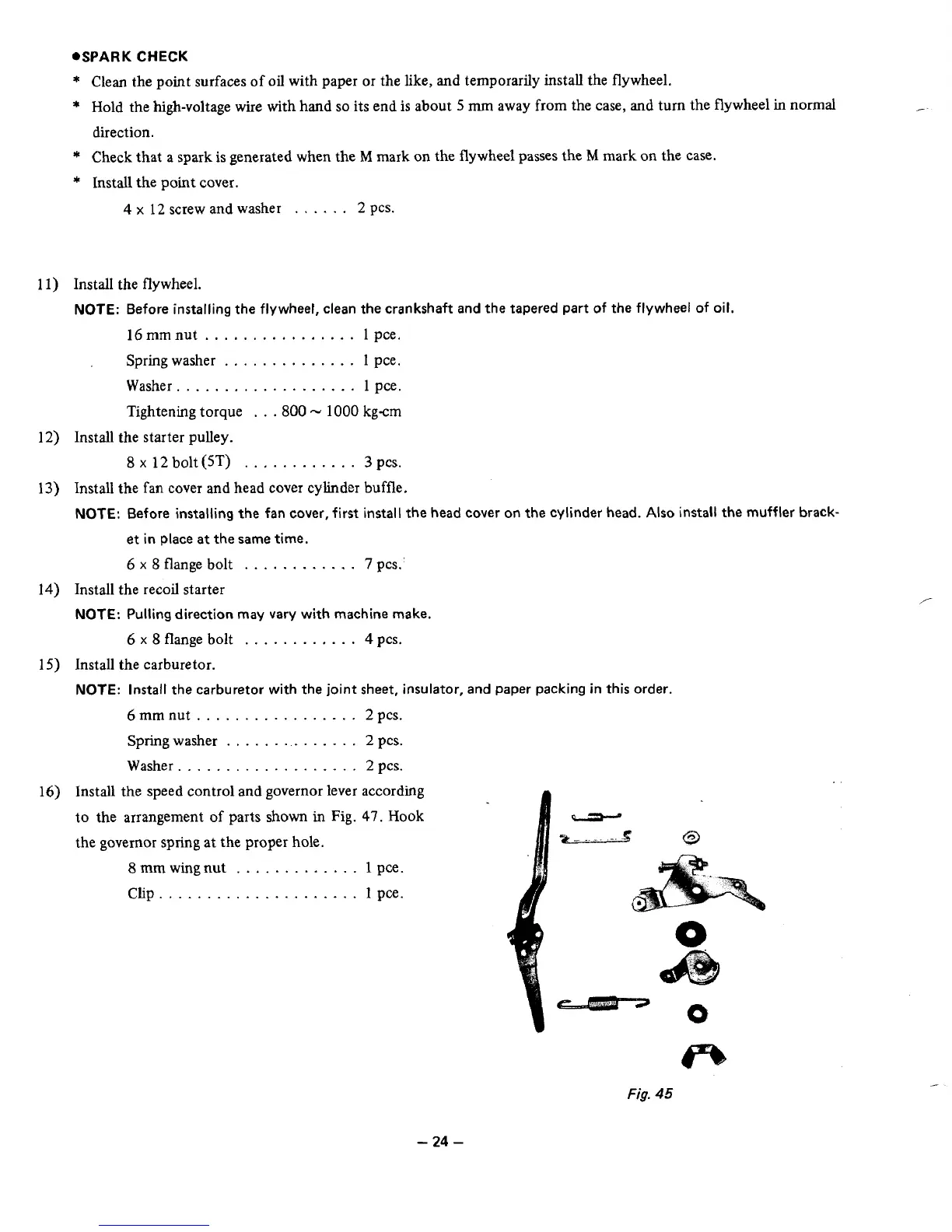

*SPARK CHECK
*
Clean the point surfaces of
oil
with paper or the like, and temporarily install the flywheel.
*
Hold the high-voltage wire with hand
so
its end
is
about
5
mm away from the case,
and
turn the flywheel in normal
direction.
*
Check that a spark
is
generated when the
M
mark
on
the flywheel passes the
M
mark on the case.
*
Install the
point
cover.
4
x
12
screw and washer
......
2
PCS.
11) Install the flywheel.
NOTE:
Before installing the flywheef, clean the crankshaft and the tapered part of the flywheel of oil.
16mmnut
................
1 pce.
Spring washer
..............
1
pce.
Washer.
..................
1 pce.
Tightening torque
..
.800
-
1000
kg-cm
12) Install the starter pulley.
8
x
12
bolt
(ST)
............
3
pcs.
13) Install
the
fan
cover and head cover cylinder buffle.
NOTE:
Before installing the fan cover, first install
the
head cover
on
the cylinder head.
Also
install
the
muffler brack-
et
in
place
at
the same time.
6
x
8
flange bolt
............
7
pcs.'
14)
Install the recoil starter
NOTE:
Pulling direction may vary with machine make.
6
x
8
flange bolt
............
4
pcs.
15)
Install the carburetor.
NOTE:
Install
the carburetor with the joint sheet, insulator, and paper packing in this order.
6
mm nut
.................
2
pcs.
Spring washer
..............
2
pcs.
Washer.
..................
2
pcs.
16) Install the speed control
and
governor lever according
to the arrangement
of
parts
shown
in
Fig.
47.
Hook
the governor spring at the proper hole.
8
mm wing nut
.............
1
pce.
Clip..
...................
1
pce.
0
Fig.
45
-
24
-
