Installation Instructions

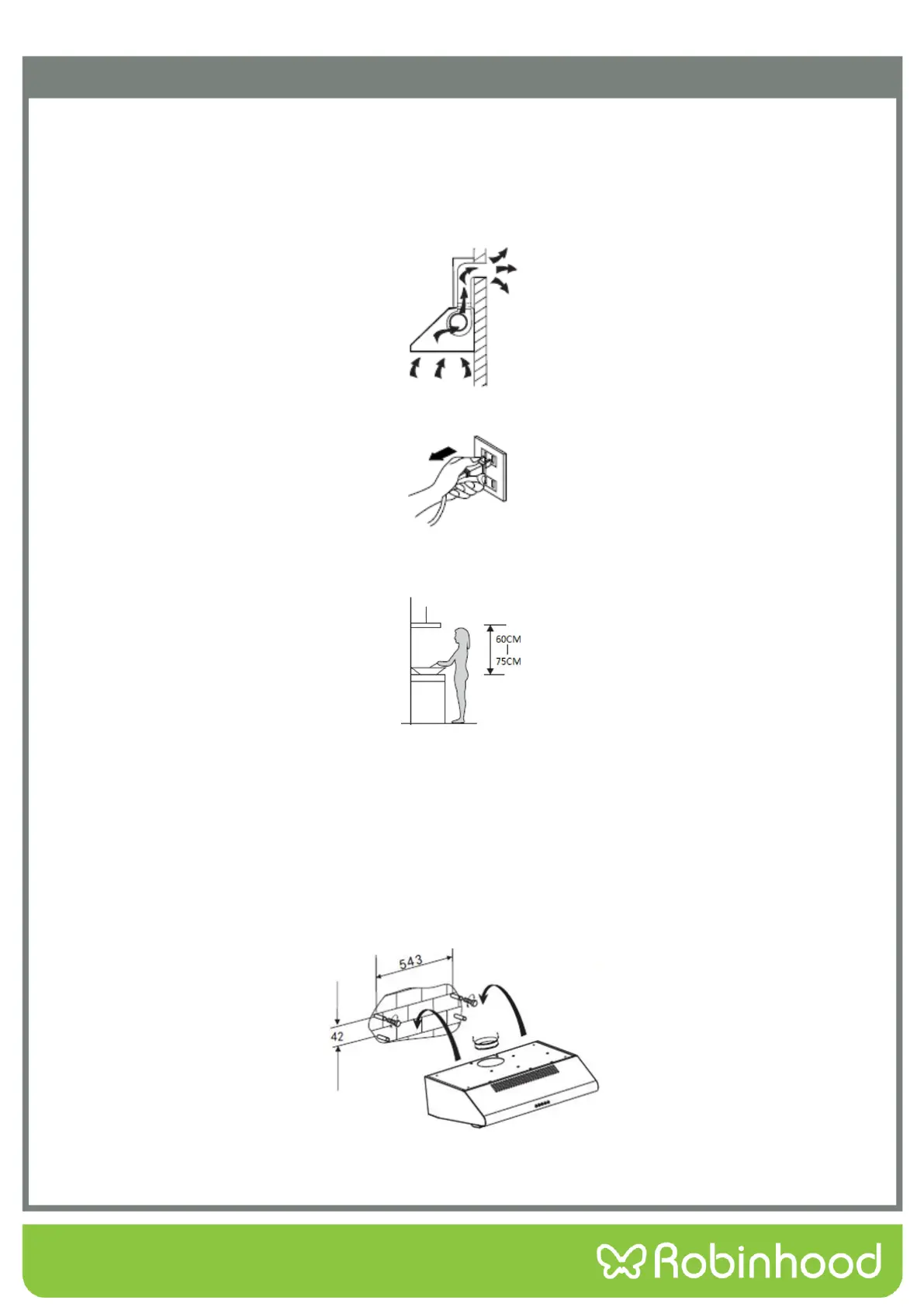

INSTALLATION (VENT OUTSIDE)
• If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an
extraction duct (enamel, aluminum, flexible pipe, or non-flammable material with an interior diameter of
120mm)
• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 60~75cm above the cooking plane for best effect.
METHOD A:
1. To install onto the wall, drill 4 holes of Ø 8mm on a suitable place according with the centre distance of hole in
the back of the cooker hood. See below picture.
2. Insert the nut into the holes.
3. Insert the screws into the nuts and tight.
4. Put up the cooker hood onto the fixed screws.
5. Then use the attached accessories enclosed to turn the screws into the two holes of inside the hood, and then
fix the screws to tighten the hood onto the wall.
6. Put the outlet onto the cooker hood.
