air) and frequent evacuation of sawdust and shavings of the workshop. Wood dust, whatever
the origin, is likely to cause short-term illnesses and cancers, decades after exposure. To
limit the emission of dust to the lowest possible level, use an industrial vacuum cleaner
equipped with a high efficiency filter
Adjusting the engine brake
If the run down time of the motor exceeds 10 seconds, the brake will need to be readjusted.
This is done as follows: without removing the motor cowling, turn the bolt holding the
ventilator fan on the motor axle one 1/16 of a turn clockwise and make a brake test.
When needed adjust the brake furthermore until it does not exceed 10 seconds.
The air gap between ventilator fan (brake disk) and brake liner (Ferrodo) is factory set at
0.25 mm.

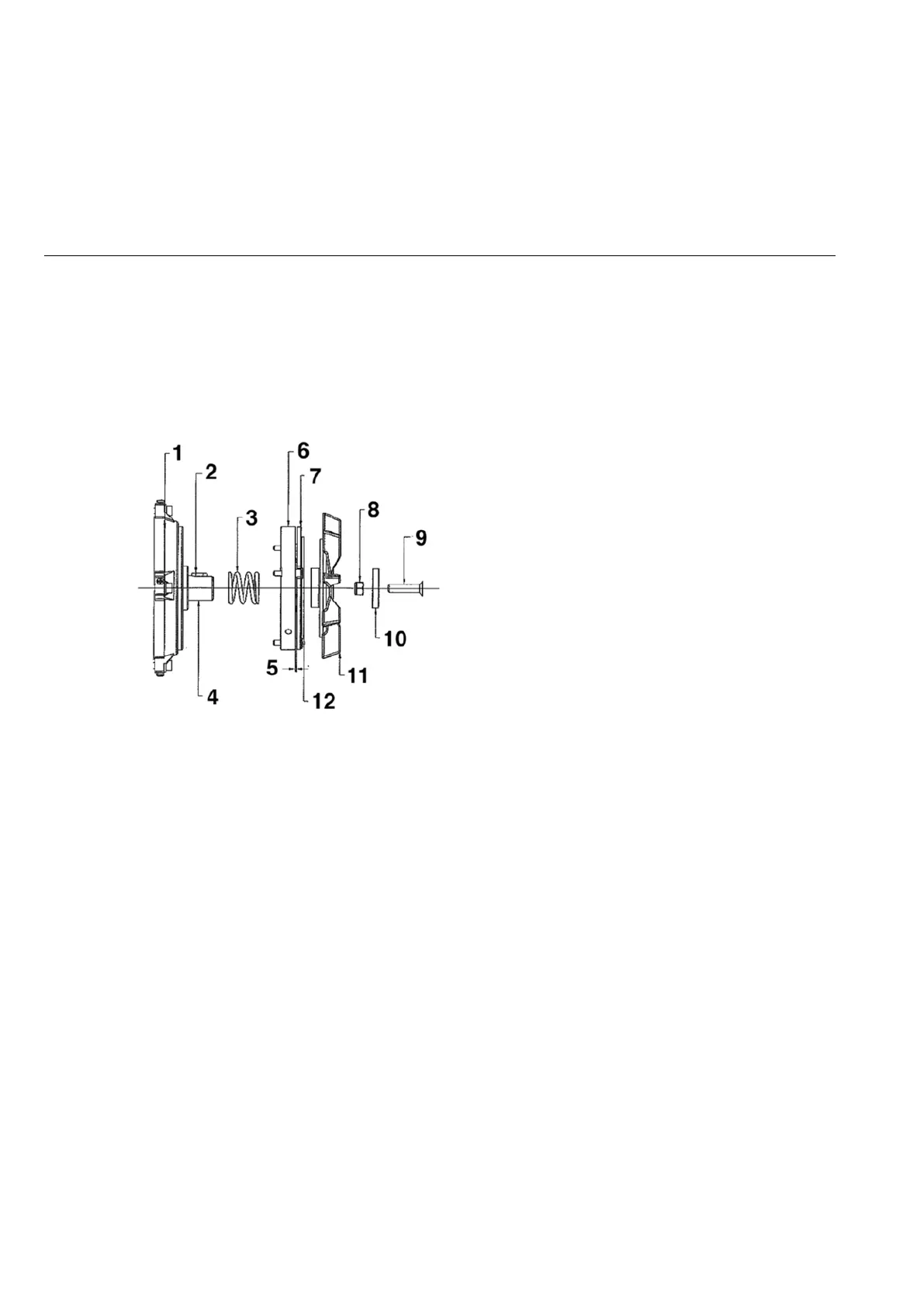

1
Moot frame
2
Key
3
Spring
4
Motor axle
5
Air gap
6
Electromagnet
7
Mobile disk
8
Locking nut
9
Adjustment bolt
10
Washer
11
Braking disk cast
iron
12 Brake liner (Ferrodo)
