FILM CONSUMPTION INSTALLATION
Mechanical Fixing

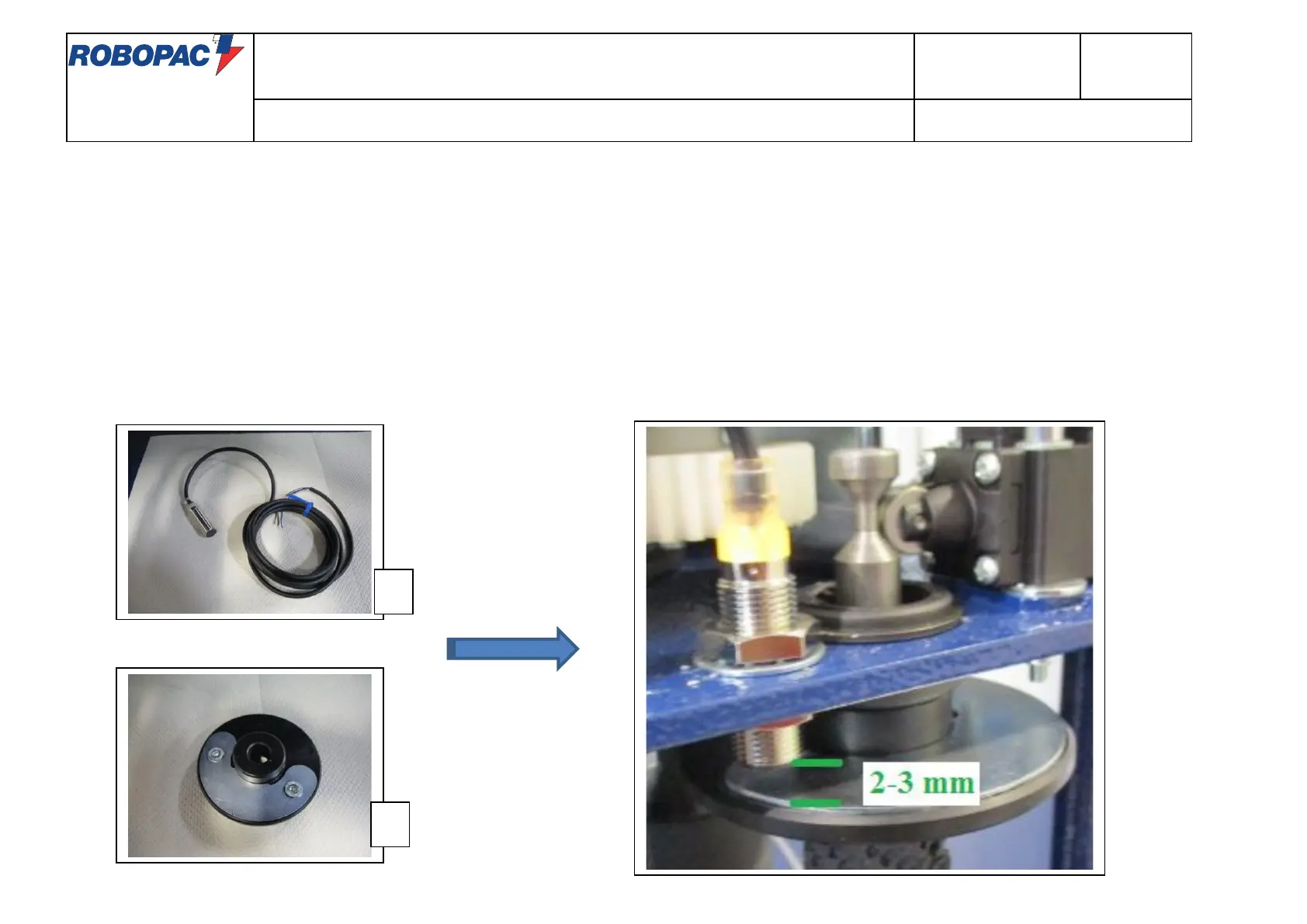

For the different machine models we have differnt KITS including the ROLL and the SENSOR (see below (S)). This sensor
has to be mounted with a distance of 2-3 millimeters from the PLATE (see below (P)).
After mounting the sensor check that
 Moving the ROLL – PLATE the sensor has always to be ON (light on) in front of the section WITH METAL
 Moving the ROLL – PLATE the sensor has always to be OFF (light off) in front of the section WITHOUT METAL
S
P
