4) Lower the basket
into place, holding it
by its handles.
Rotate it until it slots
into place.

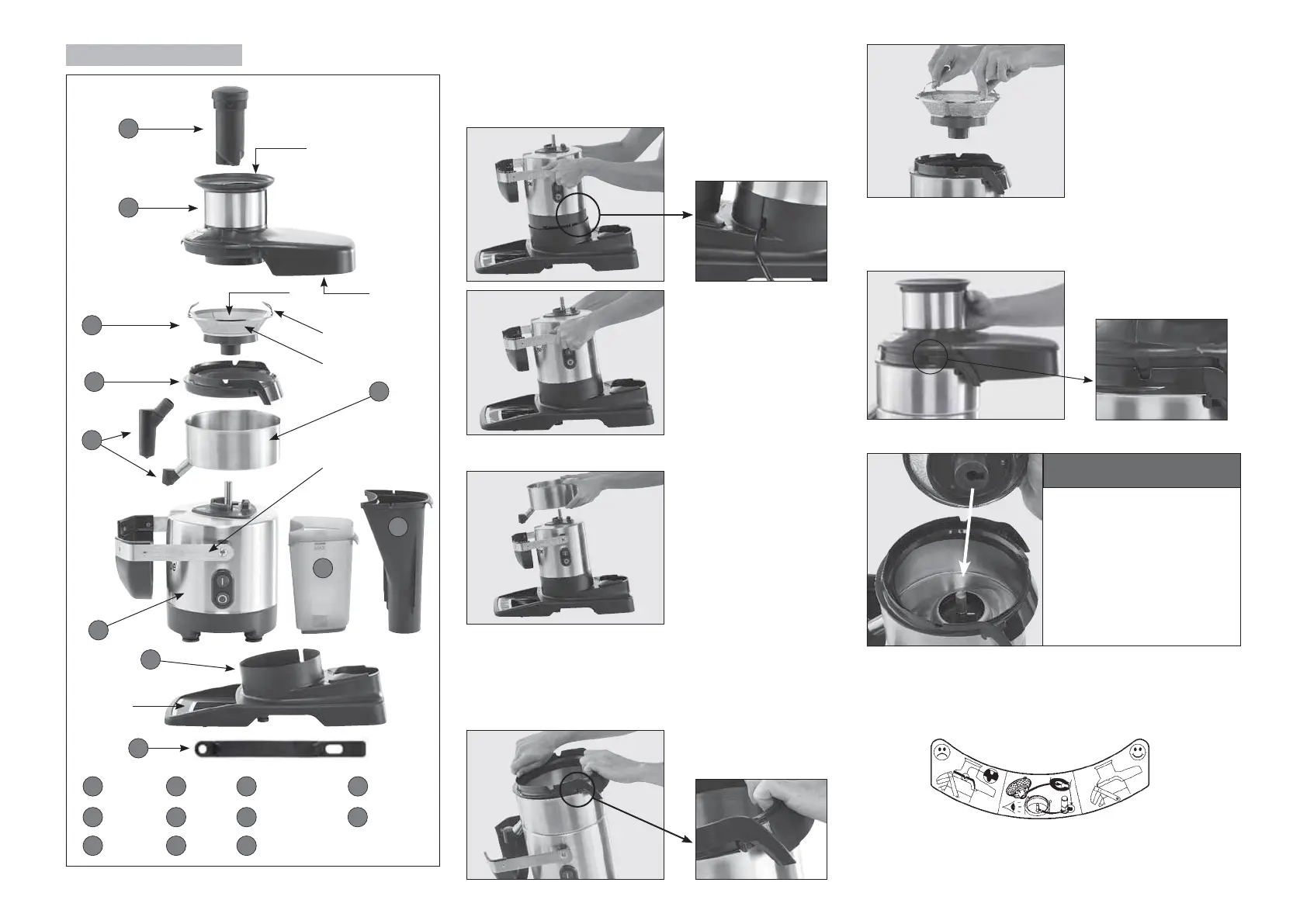

ASSEMBLY J 100
MOTOR UNIT FLANGE PUSHER EJECTION CHUTE
NO-SPLASH
SPOUTS
BASKET
BASE WITH BUILT-IN
DRIP CATCHER TRAY
STRAP
BOWL
LID PULP CONTAINER
9
3 6
2 5 8 11
1 4 7 10
7
6
9
10
FEED TUBE
EJECTOR
HANDLES
SIEVE
SAFETY ARM
GRATING DISC
8
1
2
4
5
3
11
IMPORTANT
1) Place the motor unit on its base so that the On/
Off buttons are facing you. Pass the power cord
through the slot provided.
2) Place the bowl on top of the motor unit.
3) Fit the flange onto the rim of the bowl.
The ribs of the flange should be lined up with the
flat panel of the bowl. Check that the flange is
correctly fitted.
5) Line the lid up with the notches in the flange
You can also refer to the label (below) stuck to the
lid.
Make sure that the pin
on the motor shaft is
correctly lined up with
the corresponding
notch in the basket
hub.
DRIP TRAY
