Electrical Specifications
0.25"
(6.3 mm)
7.00" (177.8 mm)
5.50" (140 mm) 4.00" (101.6 mm)
3.00" (76.2 mm)
3.60" (91.4 mm)
8.00" (203 mm)
9.00" (228.6 mm)

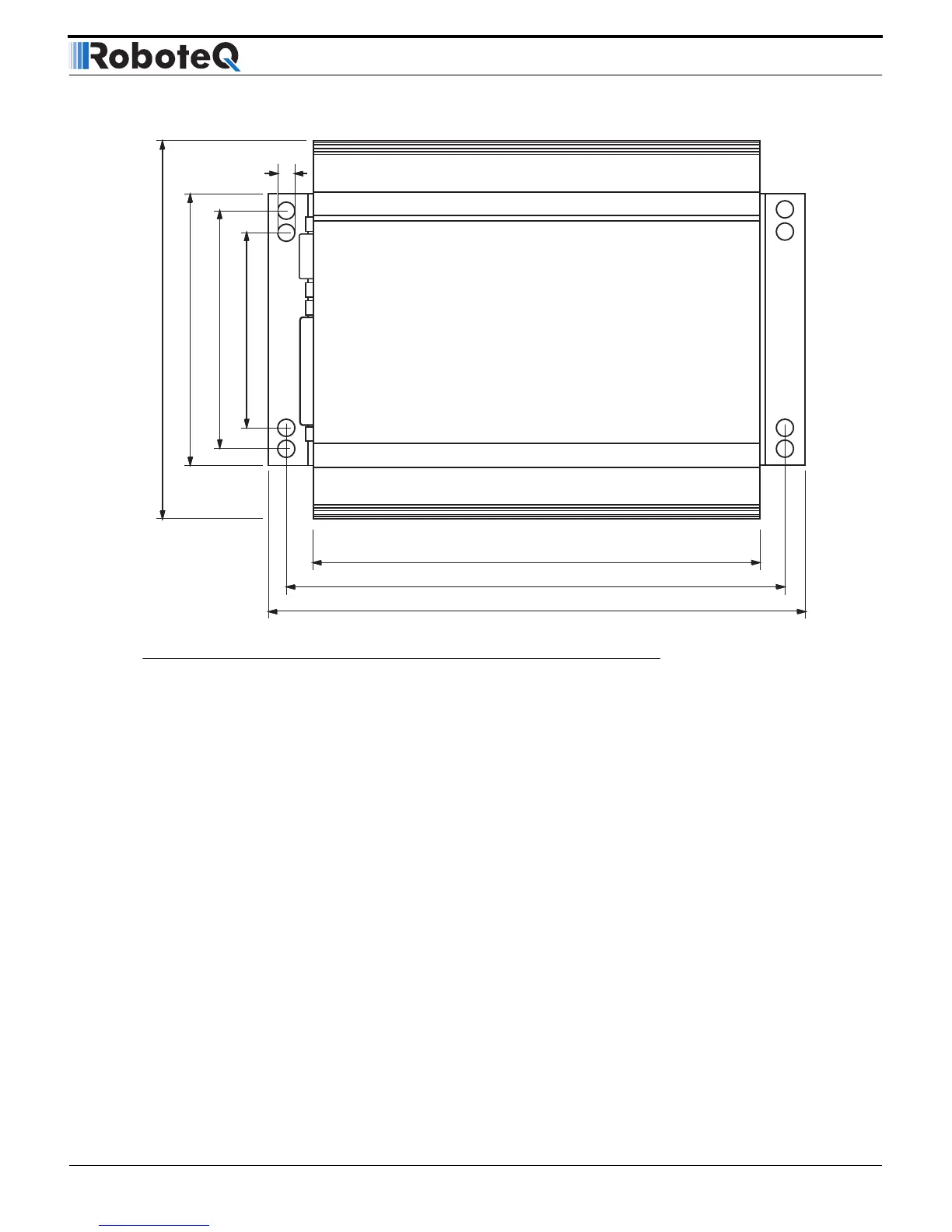

FIGURE 17. HDC2450 top view and dimensions
