Robustel R2000 Installation And Configuration Guide

Robustel GoRugged R2000 Quick Guide
RT_QG_R2000 Installation and Configuration_v.2.0.2 18.11.2016 15/17

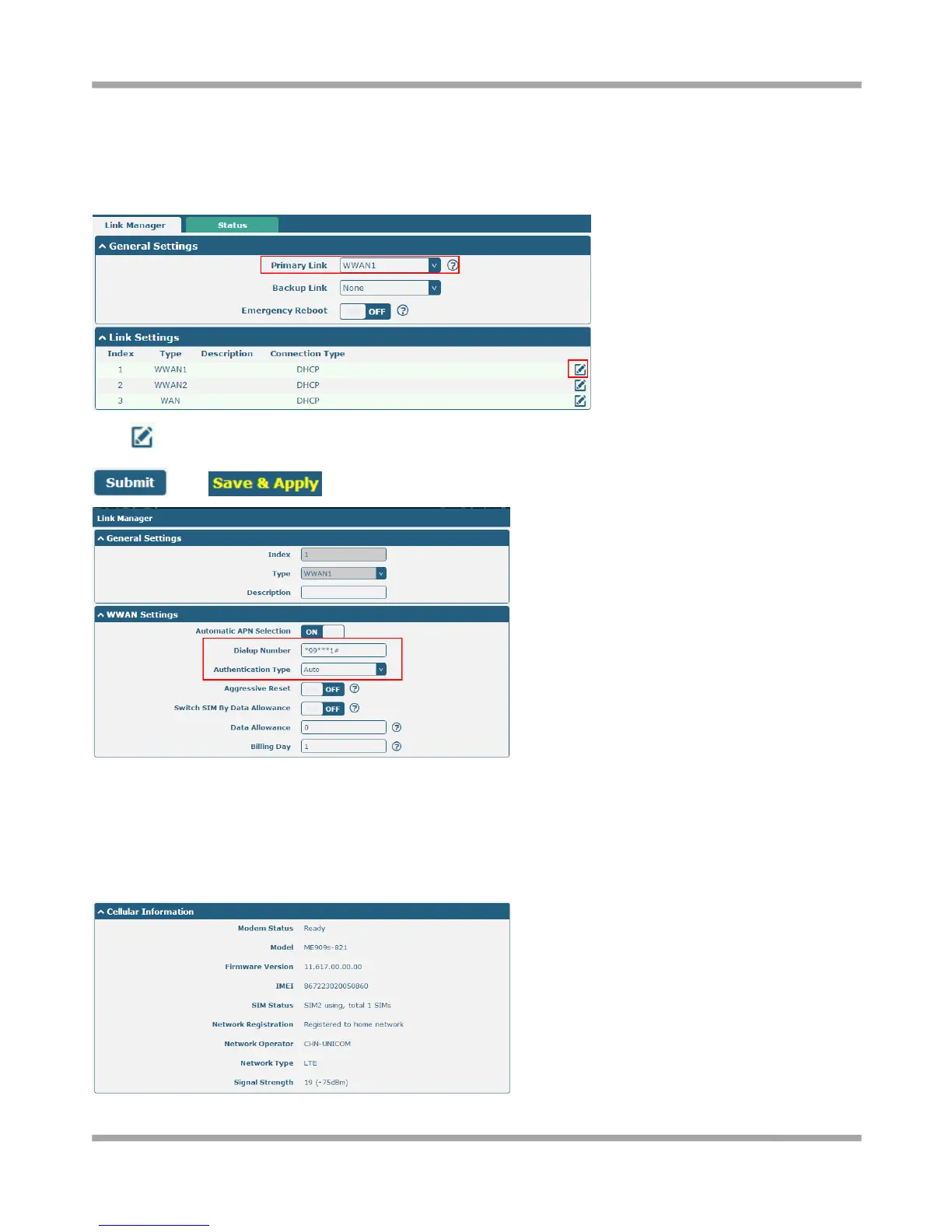

3.4 Configure Cellular
1. Configure cellular
Go to Interface->Link Manager->General Setting, select WWAN1/WWAN2 as the Primary Link.
Click to enter the WWAN1/WWAN2 window, and then configure the parameters bases on the requirement, click
and to make the modification take effect.
2. Check the cellular connection status
Go to Status->Cellular Information & Internet Status; Check the cellular information and confirm whether the Router
had obtained the IP. If router had obtained an IP, it means the cellular connection is up.

Robustel R2000 Specifications

General

Model	R2000
Category	Network Router
Cellular Connectivity	4G LTE
WAN Ports	1
Ethernet Ports	2
Input Voltage	9-36 VDC
SIM Slots	2
Certifications	CE, FCC, RoHS
Operating Temperature	-40°C to 75°C
