Robustel GoRugged R2000 Quick Guide
RT_QG_R2000 Installation and Configuration_v.2.0.2 18.11.2016 16/17
3.5 Change the IP of router
There are two LANs for Ethernet to choose: lan0 and lan1. The lan0’s default IP is 192.168.0.1, and the IP of lan1
default null.
Eth0 and Eth1 default be the lan0, it means that both of Eth0 and Eth1’s IP is 192.168.0.1.

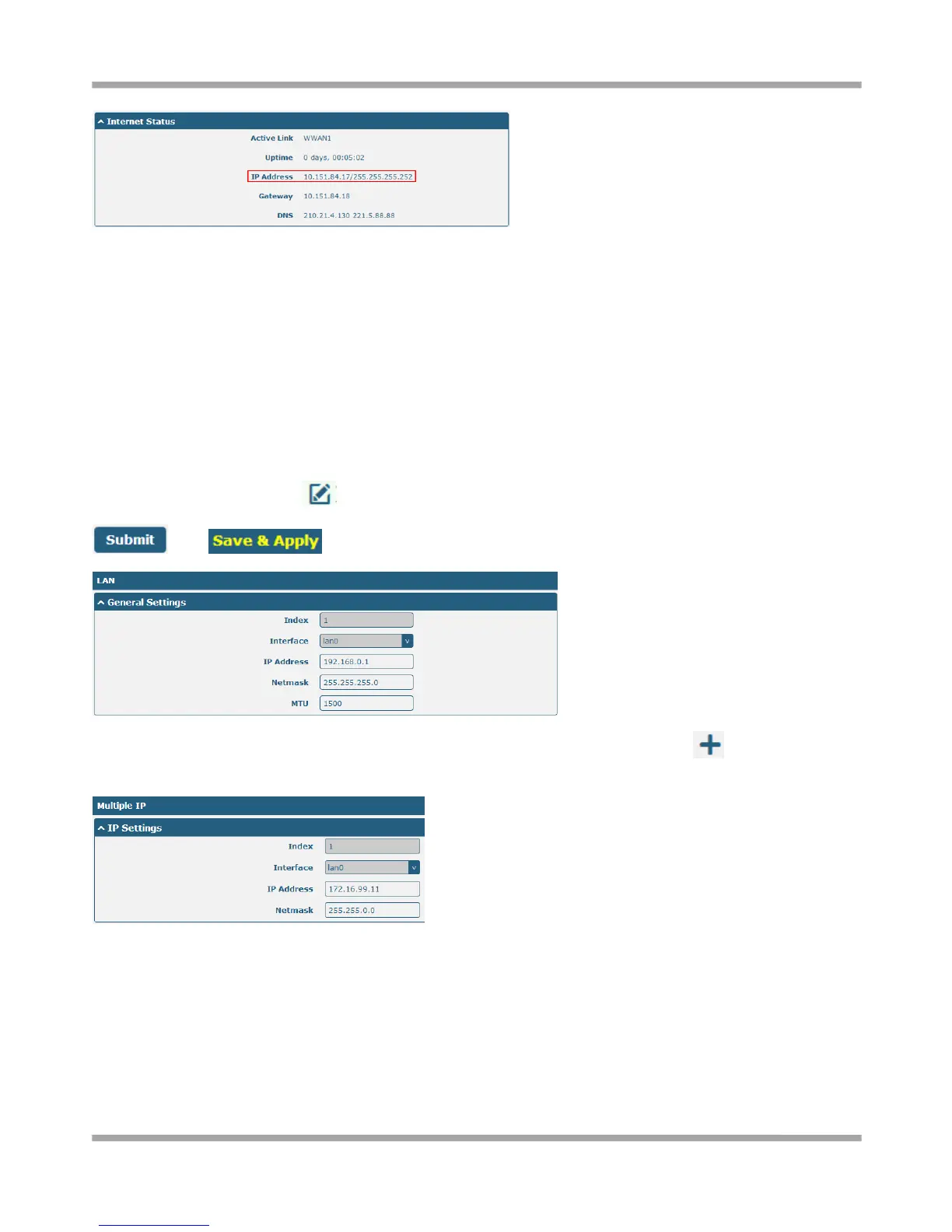

Configure lan0
Go to Interface->LAN tab, click to enter lan0 setting window, modify the IP and Netmask of lan0. And then click
and to make the modification take effect.
Note: If you want to add the multiple IP to lan0, please go to Interface->Multiple tab, click to enter the multiple
setting window, and set the multiple IP of lano.
