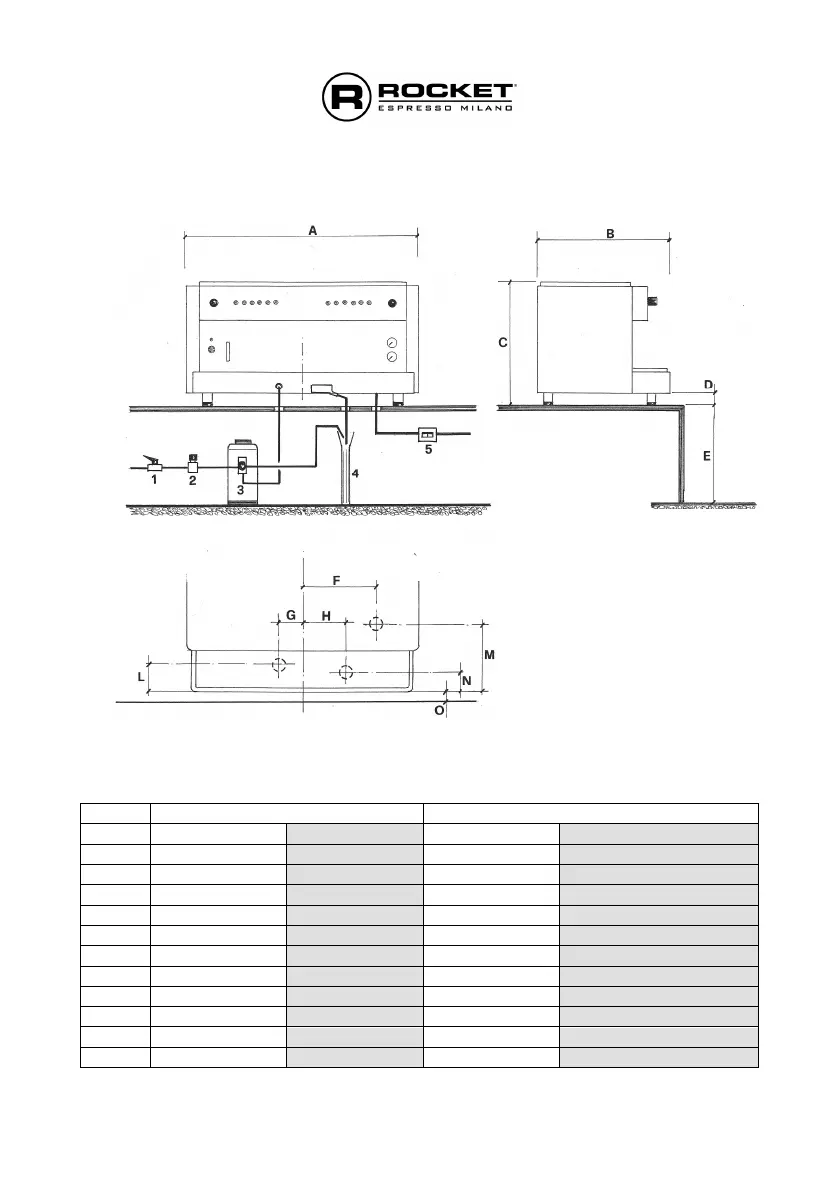

Installation diagram
Pos. 2 group machine 3 group machine
A 780 mm 30.70 in. 1000 mm 39.37in.
B 583 mm 22.95 in. 583 mm 22.95 in.
C 535 mm 21.06 in. 535 mm 21.06 in.
D 55 mm 2.17 in. 55 mm 2.17 in.
E 1.025 mm 40.35 in. 1.025 mm 40.35 in.
F 263 mm 10.35 in. 373 mm 14.69 in.
G 50 mm 1.97 in. 160 mm 6.30 in.
H 110 mm 4.33 in. 80 mm 3.15 in.
L 150 mm 5.90 in. 150 mm 5.90 in.
M 290 mm 11.42 in. 290 mm 11.42 in.
N 115 mm 4.53 in. 115 mm 4.53 in.
O 100 mm 3.94 in. 100 mm 3.94 in.
1 Shut off valve water mains
(not included to delivery)
2 Pressure reducing valve
(not included to delivery)
3 Water softener
(not included to delivery)
4 Drain
(not included to delivery)
5 Safety switch
(not included to delivery)
