DESCRIPTION OF EXTERNAL COMPONENTS RE DOPPIA

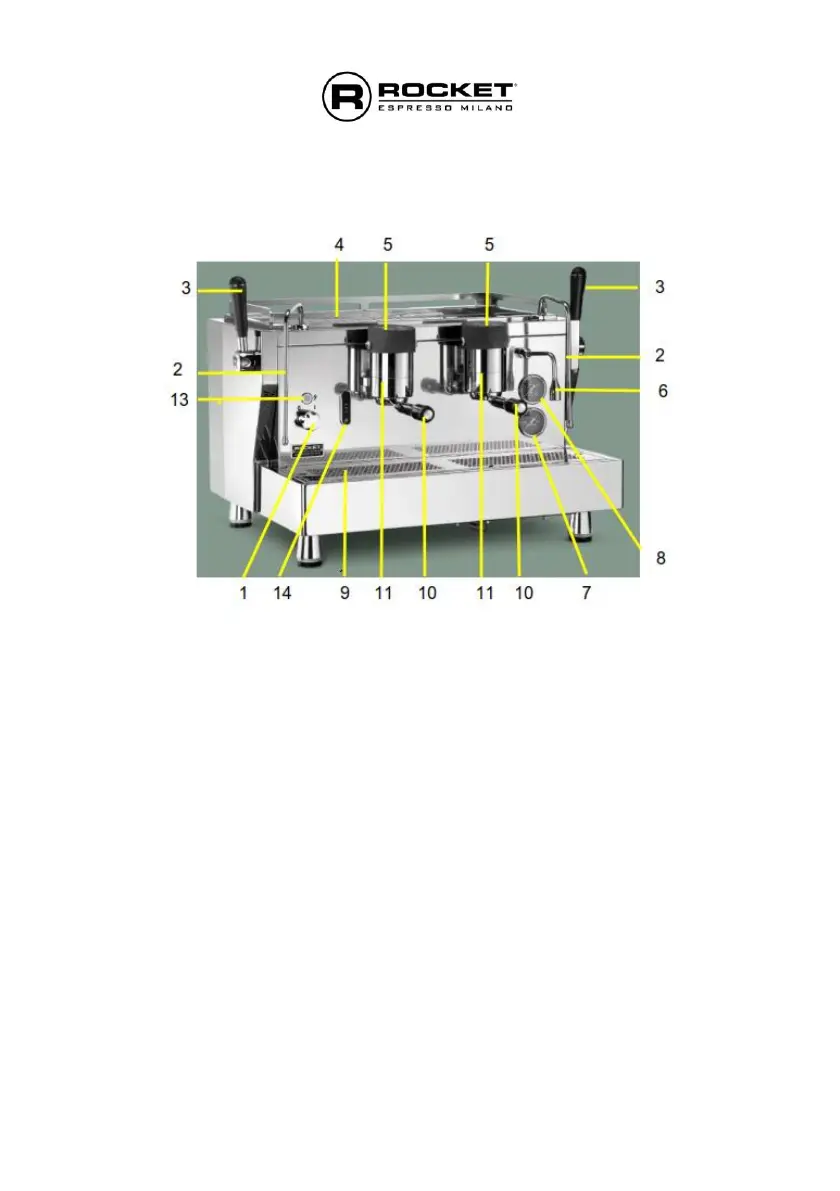

Fig. 1
1 Machine’s on/off switch. Position “0” = off; position “1” = on
2 Steam wand. Caution: can become hot and cause burns.
3 Steam lever
4 Cups tray. Do never pour any liquid on this tray! It will filter inside the
equipment and can cause electrical shocks and serious injuries. Do not
cover the tray (with towels etc.)-
5 Touchpad
6 Hot water wand. Caution: can become hot and cause burns
7 Pump pressure gauge. Pump pressure should be around 9 Bar.
8 Boiler pressure gauge. Boiler pressure should be around 0,9 Bar
9 Drip tray
10 Filter handle. Caution: can become hot and cause burns
11 Coffee brewing head (“group”). Caution: can become hot and cause burns
12 Display (located right side behind drip tray)
13 Control lamp “machine on” (when lightening)
14 Boiler water level control
