RF-TVMFM03 TV Wall Mount
Step 3 Install the vertical TV brackets (continued)

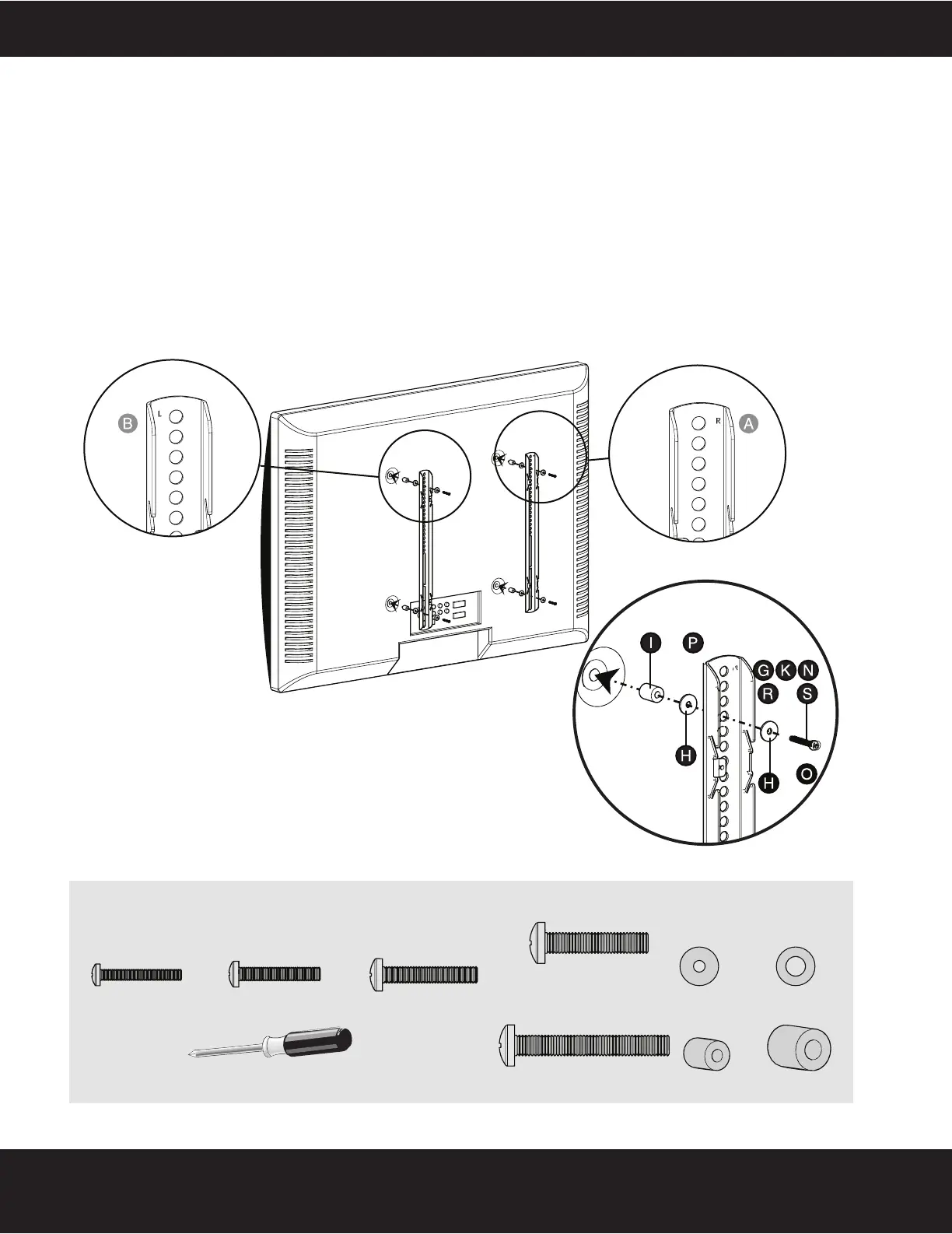

Option 2: Installing for an irregular or obstructed back
Note: Use additional washers (H) with M4/M5 hardware only.
1 Place the M4/M5 spacers (I) or M6/M8 spacers (P) and the M4/M5 washers (H) into the recessed screw holes
on the back of your TV.
2 Align the holes you noted on the right vertical TV bracket (A) and left vertical TV bracket (B) with the spacers
and washers on the back of your TV. The brackets are marked “R” for the right bracket and “L” for the left
bracket.
3 Place the M4/M5 washers (H) or M6/M8 washers (O) over the holes in the TV brackets that align with the
screw holes on the back of your TV, then insert the M4 screws (G), M5 screws (K), M6 screws (N), or M8 screws
(R or S) through the washers.
4 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
OR
OR
OR
H (8) O (4)
G (4)
K (4)
N (4)
R (4)
Phillips screwdriver
OR
OR
OR
OR
Screws
S (4)
Washers
Spacers
I (4) P (4)
OR
OR
