RF-TVMFM03 TV Wall Mount

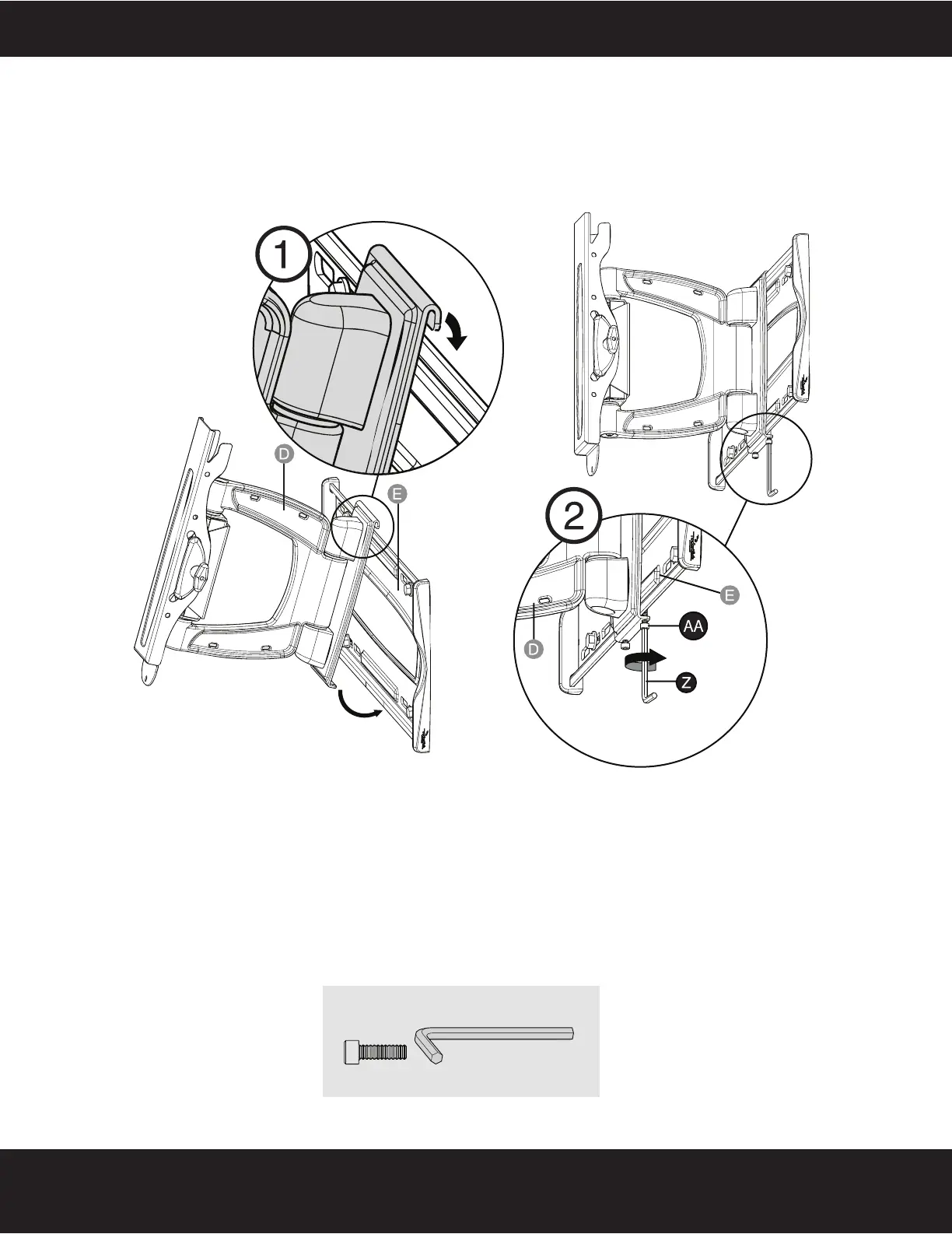

Step 7 Attach the arm assembly
1 Hang the upper lip of the arm assembly (D) over the top lip on the wall plate (E), then lower the bottom lip of
the arm assembly into the bottom lip on the wall plate.
2 Secure the arm assembly (D) with the two cap screws (AA) using the 5/32" hex key (Z).
You’ll need
AA (2) Z (1)
