8
Need help? Call 800-620-2790
RF-TVMFM03 TV Wall Mount
Step 2 Select screws, washers, and spacers
1 Select the hardware for your TV (screws, washers, and spacers). See the documentation that came with your
TV for screw length and diameter.
Select one of the following types of screws:
Select one of the following types of washers:
For an irregular or obstructed TV back, select one of the following types of spacers:

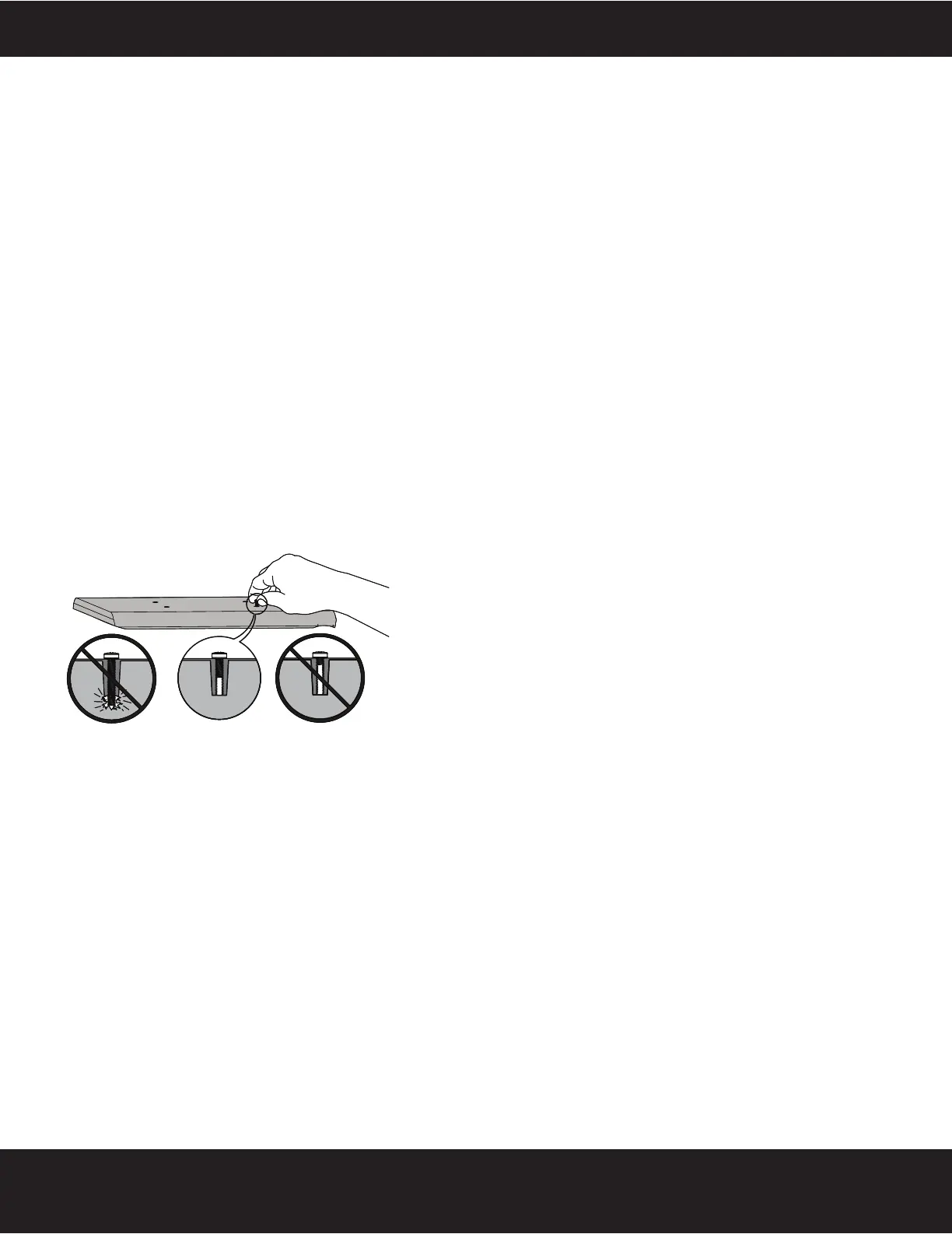

2 Hand thread screws into the threaded screw holes on the back of your TV to determine the correct screw
diameter and length. If your TV has an irregular or obstructed back, place a spacer between your TV back
and the screw to make sure you have the correct length.
Caution: To avoid potential personal injuries and property
damage, make sure that there are adequate threads to secure
the brackets to your TV. If you encounter resistance, stop
immediately and contact customer service. Use the shortest
screw and spacer combination to accommodate your TV. Using
hardware that is too long may damage your TV. However, using a
screw that is too short may cause your TV to fall from the mount.
3 Remove the screws.
For a flat back TV, go to “Step 3 Install the vertical TV brackets Option 1: Installing for a TV with a flat
back” on page 9.
For an irregular or obstructed back, go to “Step 3 Install the vertical TV brackets Option 2: Installing for
an irregular or obstructed back” on page 10.
M4 × 12 mm screws (F)
M6 × 20 mm screws (M)
M4 × 30 mm screws (G)
M6 × 35 mm screws (N)
M5 × 12 mm screws (J) M8 × 16 mm screws (Q)
M5 × 30 mm screws (K)
M8 × 40 mm screws (R)
M6 × 12 mm screws (L)
M8 × 60 mm screws (S)
M4/M5 washers (H)M6/M8 washers (O)
M4/M5 spacers (I) M6/M8 spacers (P)
Screw is
too long
Screw fits
correctly
Screw is
too short
