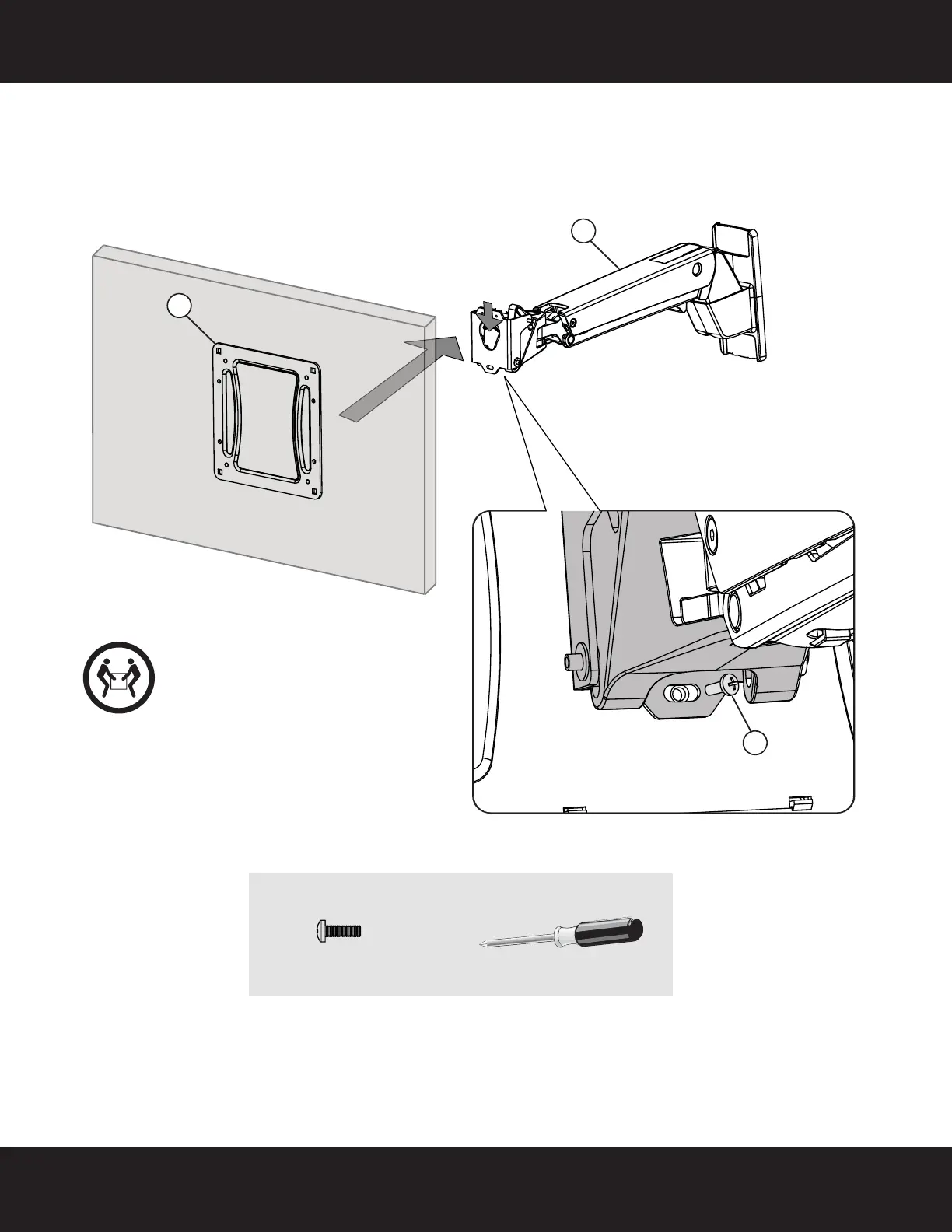

STEP 8 - Attach your TV to the arm assembly
1 Holding the TV level, with the screen parallel to the wall, connect the monitor plate (C) to the arm assembly
(A), as shown below.
2 Secure with the phillips screw (P-A) through the arm assembly (A) into the monitor plate (C) and tighten the
screw.
You’l l n eed
P-A
A
C
HEAVY! You will need
assistance with this step.
Phillips screwdriver
P-A (1)
