RocketFish RF-TVMP40 User Manual

9
Need help? Call 800-620-2790
RF-TVMP40 TV Wall Mount

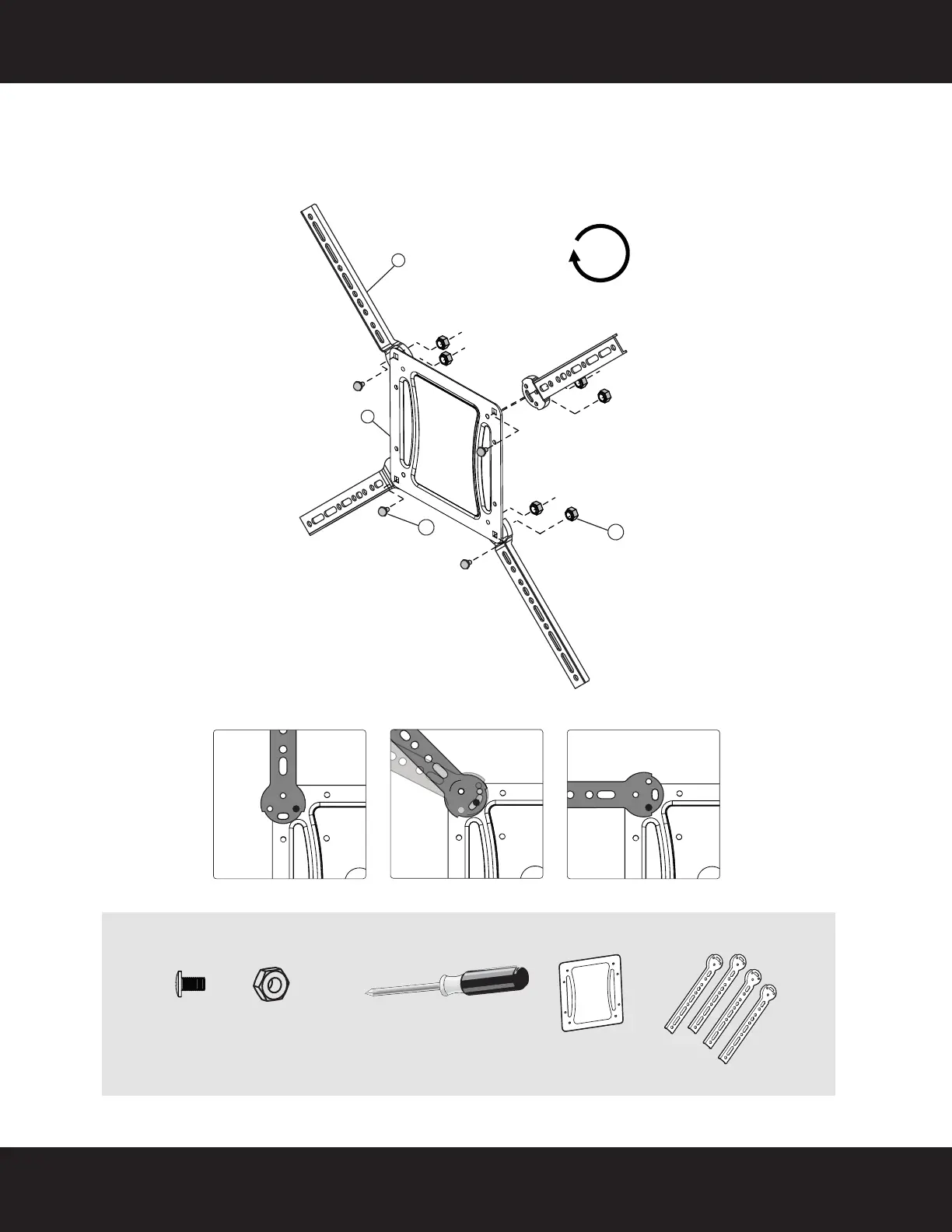

STEP 4: Option 2 - Attaching the monitor plate with adapters to the TV
1 Position the four adapters (F) onto the monitor plate (C) to fit your TV mounting configuration determined in
Step 1.
2 Secure the four adapters (F) by using four M5 x 7 mm screws (P - B) and eight nuts (P-C).
You’l l n eed
X8
C
F
P-B
P-C
200 x 300
200 x 400
300 x 300
300 x 400
400 x 400
600 x 400
300 x 200
400 x 200
P-B (4)
Phillips screwdriver
F Adapters (4)
C Monitor
plate
P-C (8)
