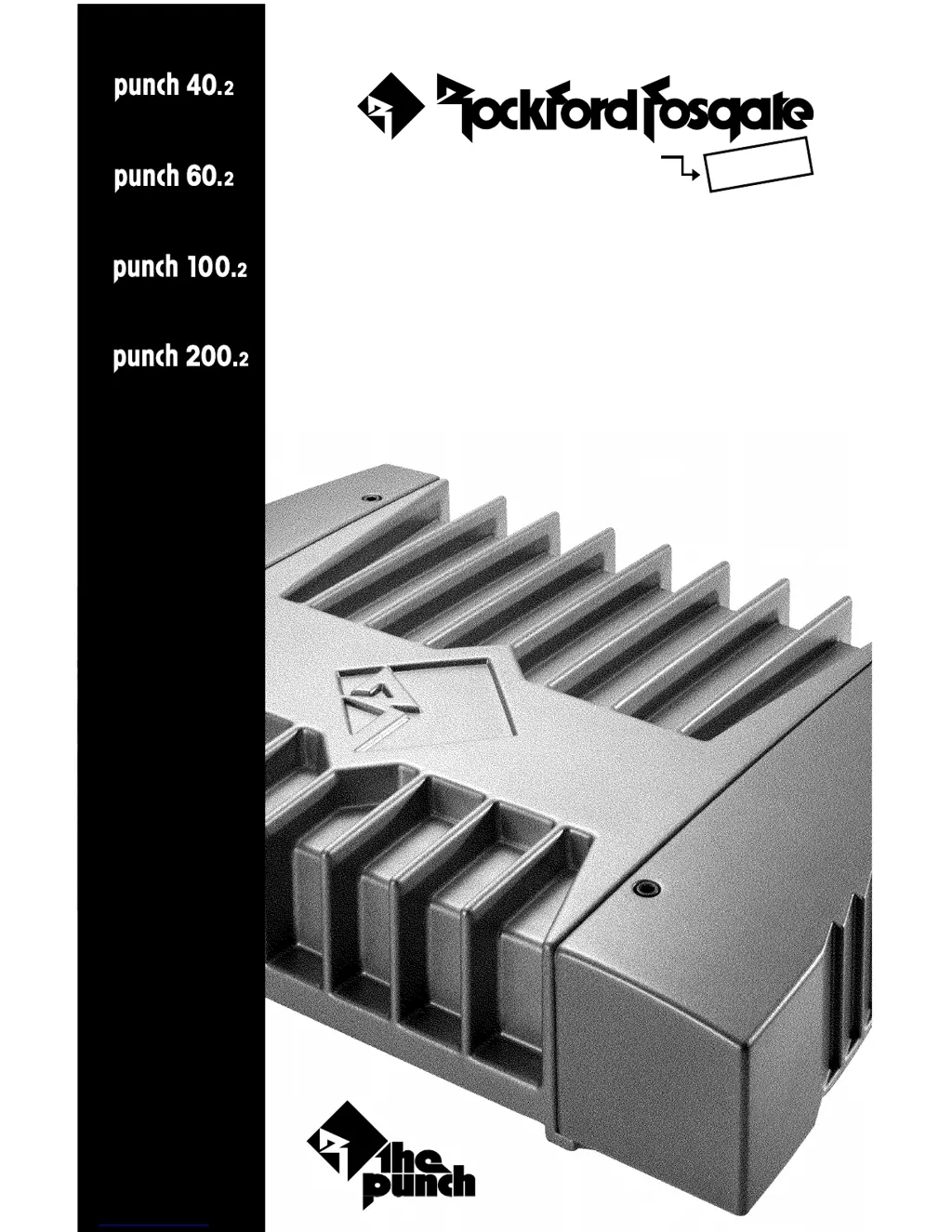

Rockford Fosgate PUNCH 40.2 - User Manual

Rockford Fosgate PUNCH 40.2
48 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
® ®
car audio
fanatics
for
punc
h
2-Channel Amplifiers
Operation & Installation
trans•
ana
trans•
ana
trans•
ana
trans•
ana
®

Table of Contents

Questions and Answers

  • J
    Janet RiceAug 10, 2025
    Why is the Rockford Fosgate PUNCH 40.2 speaker output low or distorted?
    • J
      James KellyAug 10, 2025
      Low or distorted speaker output from your Rockford Fosgate Amplifier can occur for several reasons: * The input gain signal might be incorrectly set. If so, readjust the amplifier's input gains. * The source unit output might be too low or have no output. To solve it, check the system with a known working source and repair or replace the original source as needed. * The XCard might be missing or not properly placed in the cross-over slots. Ensure the XCard is correctly positioned, repairing or replacing it if necessary. * Low battery voltage or significant voltage drops to the amplifier under load can be the cause. Inspect the alternator, battery, fuse, and power and ground wiring, making any necessary repairs.
  • H
    hunterlaurenAug 22, 2025
    What to do if my Rockford Fosgate PUNCH 40.2 makes a turn-on pop noise?
    • J
      Jacob BrownAug 22, 2025
      A turn-on pop noise in your Rockford Fosgate Amplifier could be due to: * A voltage spike from the output of a preceding component entering the amplifier through the input signal. Disconnect the input signal to the amplifier and turn the amplifier on and off. If the noise is eliminated, connect the REM lead of the amplifier to the source unit with a delay turn-on module. * A voltage spike from the remote turn-on lead entering through the REM input terminal. Use a different 12-volt source for the amplifier's REM lead (e.g., battery direct). If the noise is eliminated, use a relay to isolate the amplifier from the noisy turn-on output.
  • J
    Jordan FrankOct 31, 2025
    How to fix engine noise in Rockford Fosgate PUNCH 40.2?
    • K
      Kara ElliottOct 31, 2025
      Engine noise in your Rockford Fosgate Amplifier can stem from several sources: * Noise radiating into the RCA signal cable. In this case, check the connections and reroute the RCA cables away from high current sources. * A bad component in the signal chain. Check connections, and bypass additional components like crossovers and equalizers between the source unit and the amplifier. Connect one component at a time to identify the faulty one, and then repair or replace components as needed. * Noise radiating into the speaker cables. Disconnect existing speakers and connect a test speaker to the amplifier's output terminals. If the noise disappears, reroute the speaker cables away from high voltage sources. * Multiple grounds in the audio system. Inspect the ground connections and con...

Summary

Technical Design Features

TRANS ANA Circuit Explained

Explains the low-voltage circuit for clear audio at high volumes.

TOPAZ Ground Loop Noise Solution

Details circuitry for eliminating ground loop noise in car audio systems.

DSM Manufacturing Process Benefits

Describes the Discrete Surface Mount process and its benefits like compactness and heat dissipation.

XCard for Internal Crossover Function

Explains the internal active crossovers and their configurability for frequency adjustments.

MOSFET Device Advantages

Discusses MOSFET advantages for stability, switching speed, and bandwidth linearity.

NOMAD Amplifier Protection System

Details the analog computer process for maximizing safe output power under all conditions.

Design Features

XCard for Configurable Crossovers

Re-explains the XCard's configurability for high-pass, low-pass, or full range operation.

Installation Considerations

Key Installation Safety Precautions

Provides safety rules, including disconnecting the battery before installation.

Wiring and Grounding Installation Tips

Mounting Location

Battery and Charging

Wiring the System

System Wiring for Noise Prevention

Power Cable Preparation for Connection

Fuseholder Installation Procedures

Explains fuseholder installation for specific Punch models, including cable trimming and connections.

Connecting the Battery Power Cable

Instructs on connecting the power cable to the battery positive terminal with a ring terminal.

Secure Chassis Ground Connection

Guides on preparing and connecting the ground cable to the vehicle chassis for proper grounding.

REM Wire Connection for Turn-On

Amplifier Mounting and Connections

Final System Checks and Fuse Installation

Understanding Passive Crossovers

Passive Crossover Impedance Limits

Crossover Component Value Reference

XCard Operation for Crossover Settings

Calculating XCard Crossover Points

Resistor Values for Crossover Adjustment

Installation

Power Connections Diagram

Stereo Operation Wiring Diagram

Mono Operation Wiring Diagram

Stereo;Mono Operation Wiring Diagram

System Diagrams

Troubleshooting

Amplifier Power Issues

Provides diagnosis and remedies for an amplifier that does not power on, checking voltage and grounding.

No Sound Output

Offers solutions for no sound issues, checking RCA connections, XCard, and speaker wiring.

Speaker Output Problems

Addresses low or distorted speaker output by checking input gain, source unit, and XCard placement.

Amplifier Turn-on Noise

Explains how to fix turn-on pop noise by checking voltage spikes from remote turn-on leads.

Engine Noise Interference

Provides remedies for engine noise, suggesting rerouting cables and checking grounds.

Dynamic Power Measurements

Specifications

Rockford Fosgate PUNCH 40.2 Specifications
