Rockwell Automation 1763-L16AWA User Manual

16
Publication 1763-IN001C-EN-P - June 2015
Connec ting 1762 I/O Expansion Module s
Connect 1762 I/O after mounting the controller.

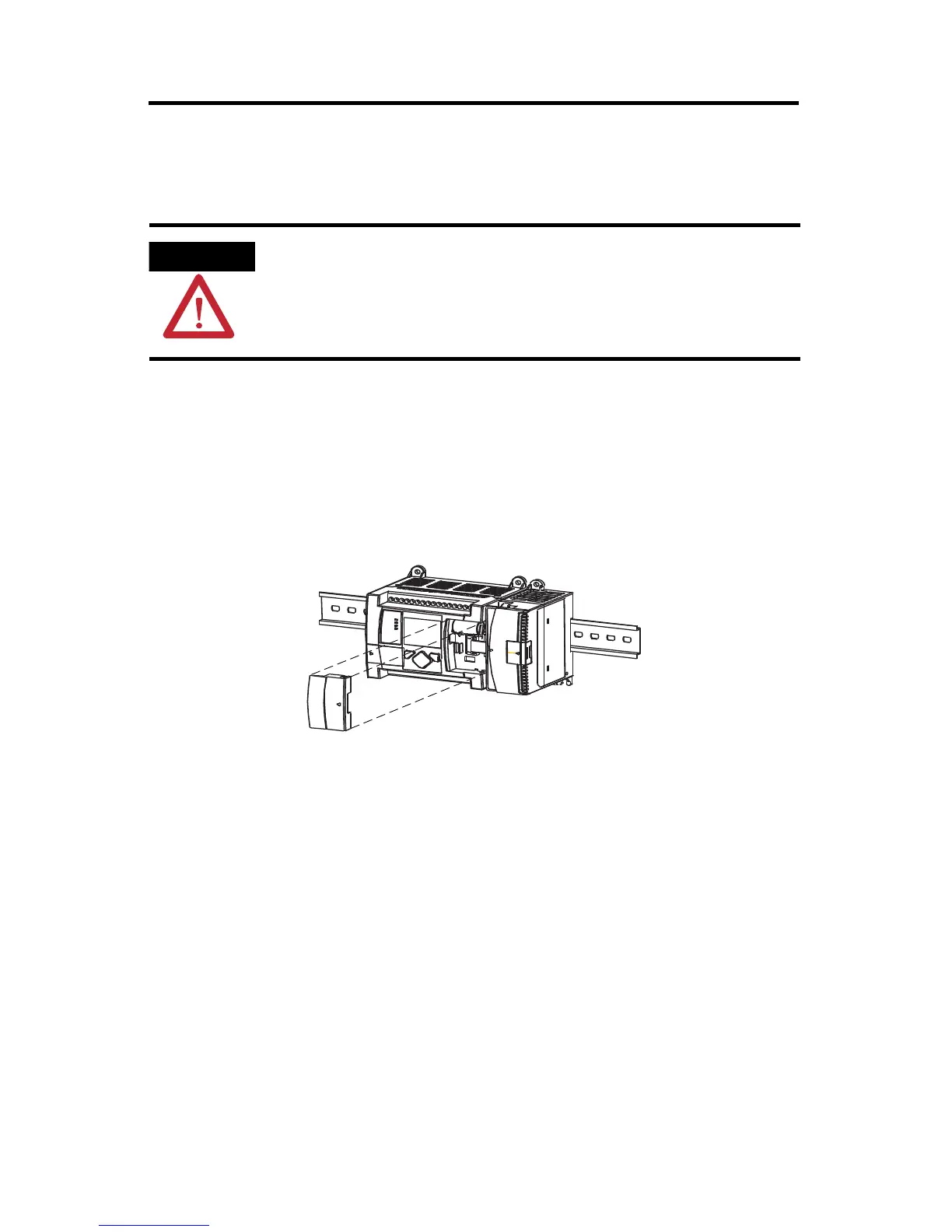

1. Remove the expansion port cover to install expansion I/O modules.
2. Plug the ribbon cable connector into the bus connector.
3. Replace the cover as shown below.
The MicroLogix 1100 controller is designed to support up to any four 1762 expansion I/O
modules.
For detailed information on using expansion I/O, refer to the installation instructions for
your expansion module.
ATTENTION
Remove power to the system before installing or removing expansion I/O or damage to the
controller may result.
