7
Publication 1763-IN001C-EN-P - June 2015

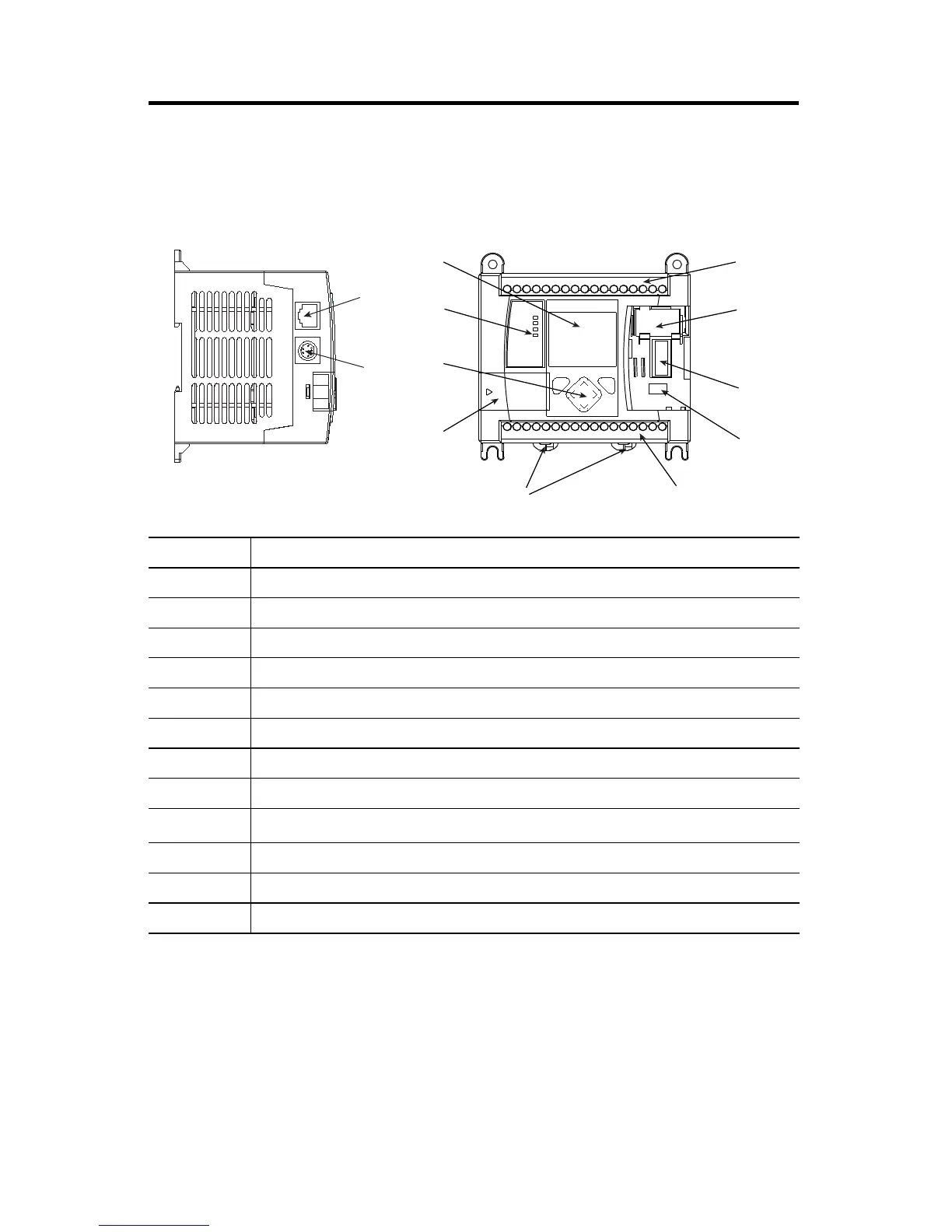

Controller Description
Item Description
1 Output Terminal Block
2 Battery Connector
3 Bus Connector Interface to Expansion I/O
4 Battery
5 Input Terminal Block
6LCD Display
7 LCD Display Keypad (ESC, OK, Up, Down, Left, Right)
8 Status LEDs
9
Memory Module Port Cover
(1)
-or- Memory Module
(2)
(1)
Shipped with controller.
(2)
Optional equipment.
10 DIN Rail Latches
11 RS-232/485 Communication Port (Channel 0, isolated)
12 Ethernet Port (Channel 1)
12
11
1
2
3
5
6
7
8
9
10
4
ESC OK
