Chapter 5 LCD and Keypad

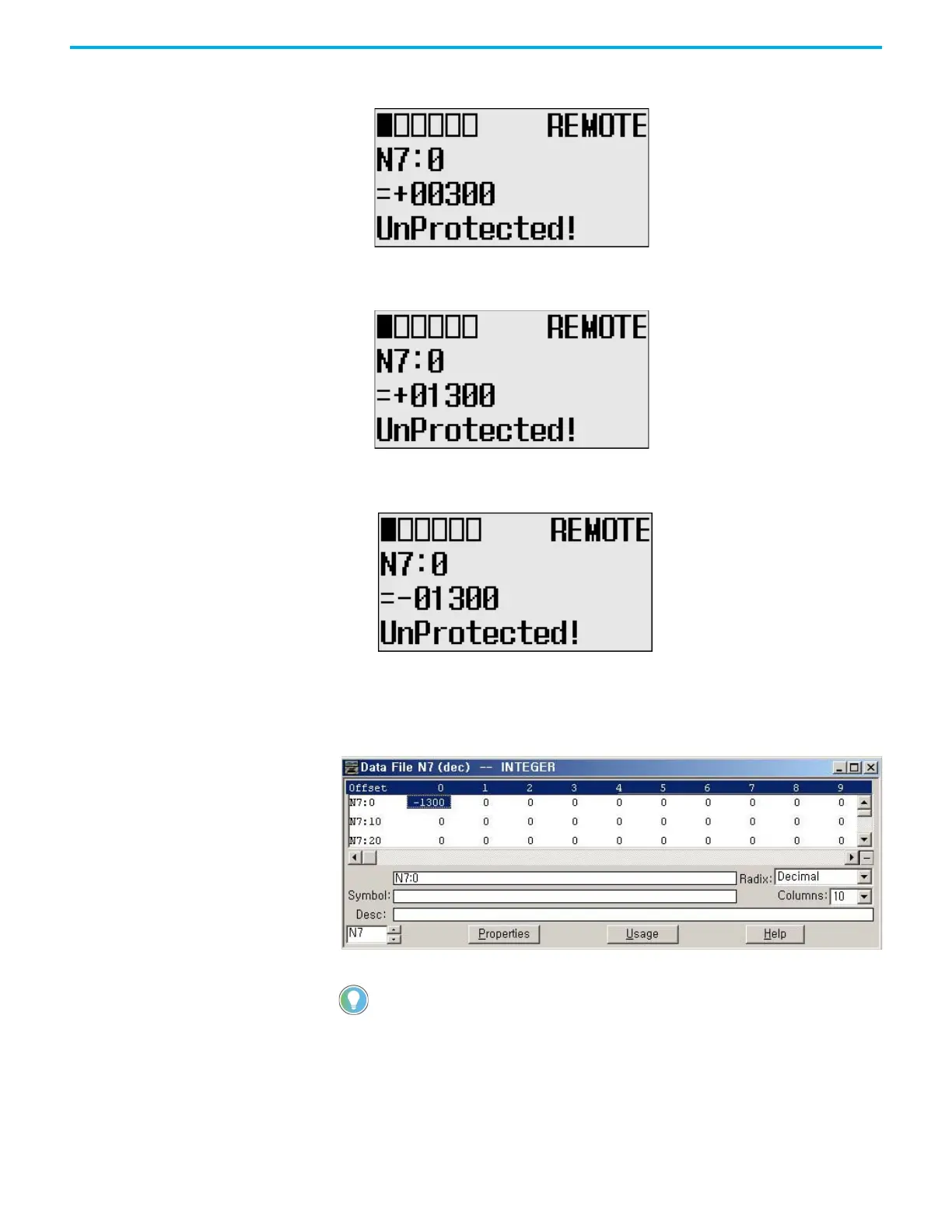

6. Press the Left key twice. The cursor positions at the third digit. Press Up
three times to change the third digit to 3.
7. Press the Left key once. Then, press Up once. The second digit changes to
“1”. Note that “1” continues to flash, which means the cursor is still at the
data value position.
8. Press the Left key once. Then, press Down once. The sign digit changes to
“-”, as shown. Note that “-” continues to flash, which means the cursor is
still at the data value position.
9. Press OK to apply the changes. Then, the new value -1300 is applied. Note
that the target word “0”, which is right next to “N7:”, flashes. The cursor is
moved automatically to the target word position.
You can identify that this change of data value is reflected to your
RSLogix 500/RSLogix Micro programming software, as shown.
After changing the data value of a target word, press OK to apply the changes or press
ESC to discard the changes.
