Rockwell Automation Allen-Bradley 1719 Ex I/O User Manual

Rockwell Automation Publication 1719-IN001D-EN-E - November 2020 5
1719 Ex I/O Installation Instructions
Adapter Components

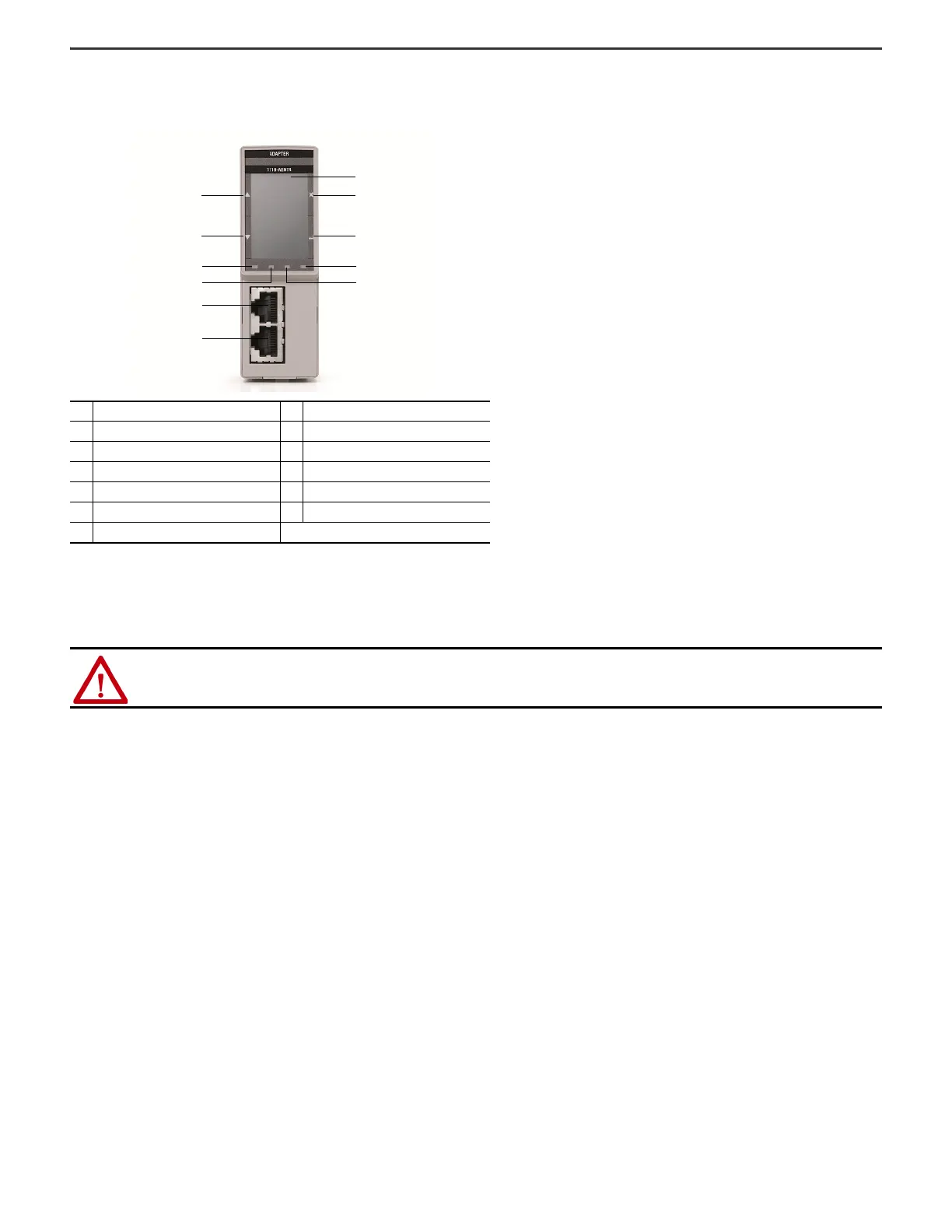

See the following figure to identify the components of the 1719-AENTR adapter.
Adapter Considerations
To effectively use your 1719-AENTR adapter, note the following considerations.
Determine Compatibility
The 1719-AENTR Add-on Profile must be used with one of the following:
• Studio 5000 Logix Designer® application, version 24 or later
• RSLinx® software, version 3.74 or later
Add-on Profile Considerations
• The adapter can be configured using the Add-on Profile. For more information, see the Add-on Profile help.
• In the Add-on Profile display, on the Module Info page, the Internal State of the adapter shows Run mode regardless of the status of the controller (Program mode or
Run mode).
• Modules can only be reset by inhibiting the module through the Add-on Profile.
Description Description
1 LCD screen 7 NET LED (Network Status)
2 Up navigation 8 LINK1 LED (Link Status Port 1)
3 Down navigation 9 LINK2 LED (Link Status Port 2)
4 Cancel/Back 10 Ethernet Port 1
5 Enter/OK 11 Ethernet Port 2
6 OK LED (Adapter Status)
ATTENTION: To prevent damage to the 1719-AENTR adapter, connect all Ethernet cables before the adapter is powered on and avoid disconnecting
Ethernet cables while the adapter is online.
2
3
10
11
4
5
1
8
9
6
7
