Publication 1769-UM020A-EN-P - December 2009 27
Installation and Wiring Chapter 2

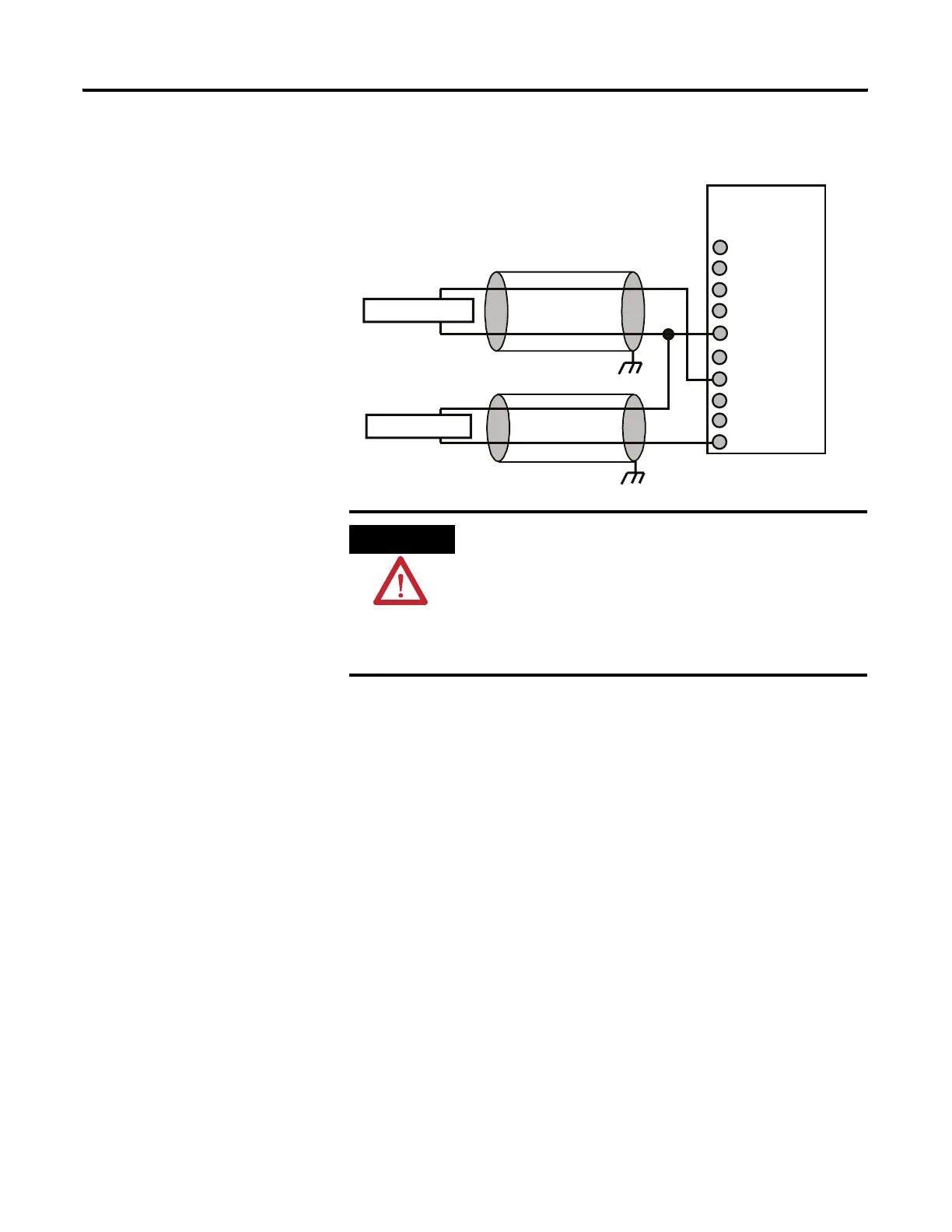

Wiring Analog Outputs
ATTENTION
Analog outputs may fluctuate for less than a second when
power is applied or removed. This characteristic is common to
most analog outputs. While the majority of loads will not
recognize this short signal, take preventative measures to make
sure that connected equipment is not affected. Failure to take
these preventative measures may result in unexpected load
reactions.
ANLG Com
ANLG Com
I out 0+
V out 0+
I out 1 +
V out 1+
I out 2+
V out 2+
I out 3+
V out 3+
Terminal Block
Voltage Load
Current Load
Earth Ground
Earth Ground
To Next Page
